- 98 -
Unload the release lever set.
Unload the electric starter set.
12.3.2 Disassembly of right crankcase
cover
Unscrew the binding bolts and unload the right crankcase
cover（ called as right cover for short in the diagram）.
Note：when unloading the right cover, disassemble the oil
pump set and water pump set together.
12.3.3 Installation of crankcase cover
Install in the reverse order of operation.
12.4 Clutch
12.4.1 Disassembly

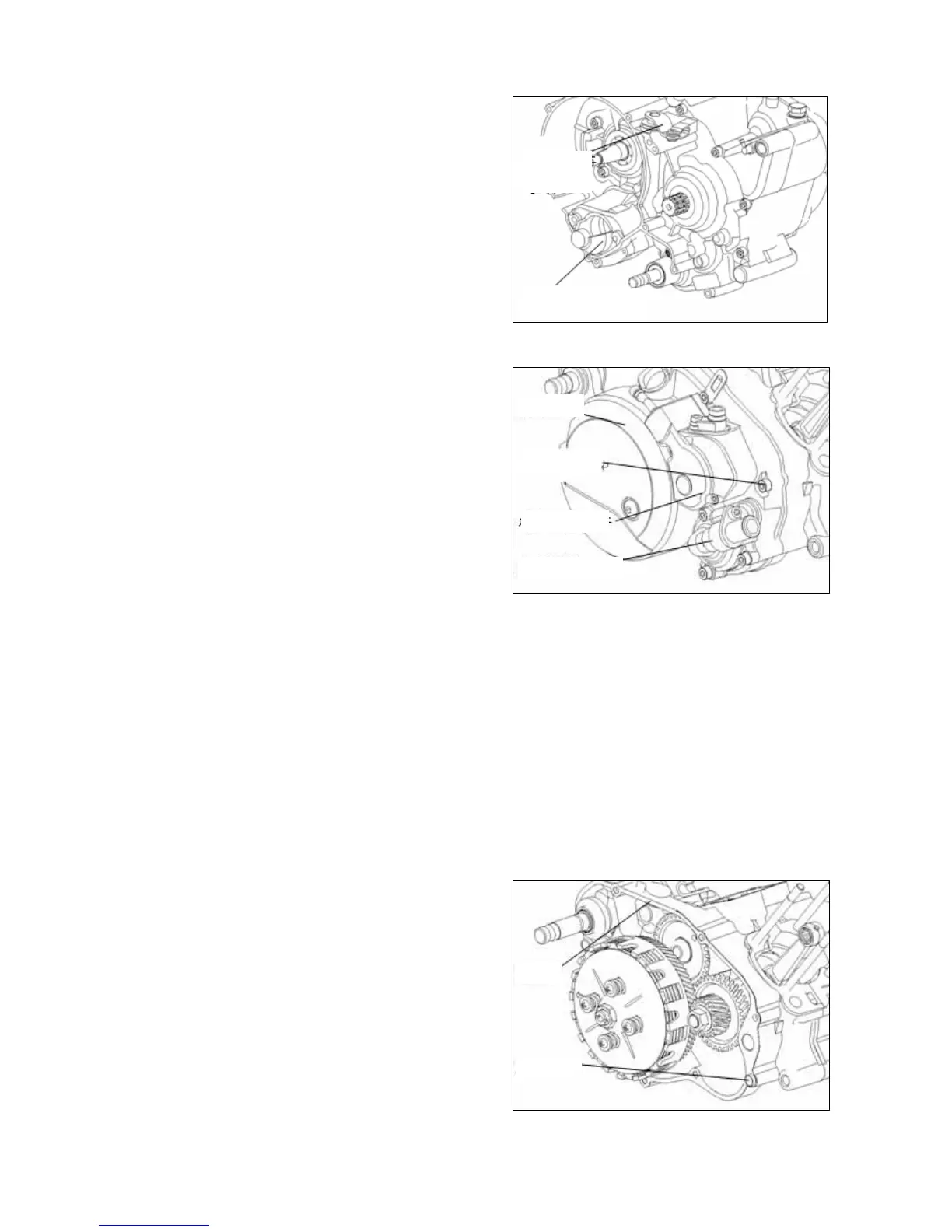

Unload the right cover and then unload the gasket and guide pin.
Remove the adhesive gasket on the joint face of the right cover and crankcase.
guide pin
gasket
water pump set
oil pump set
binding bolts
right cover
electric starter set
release leve
r
set
