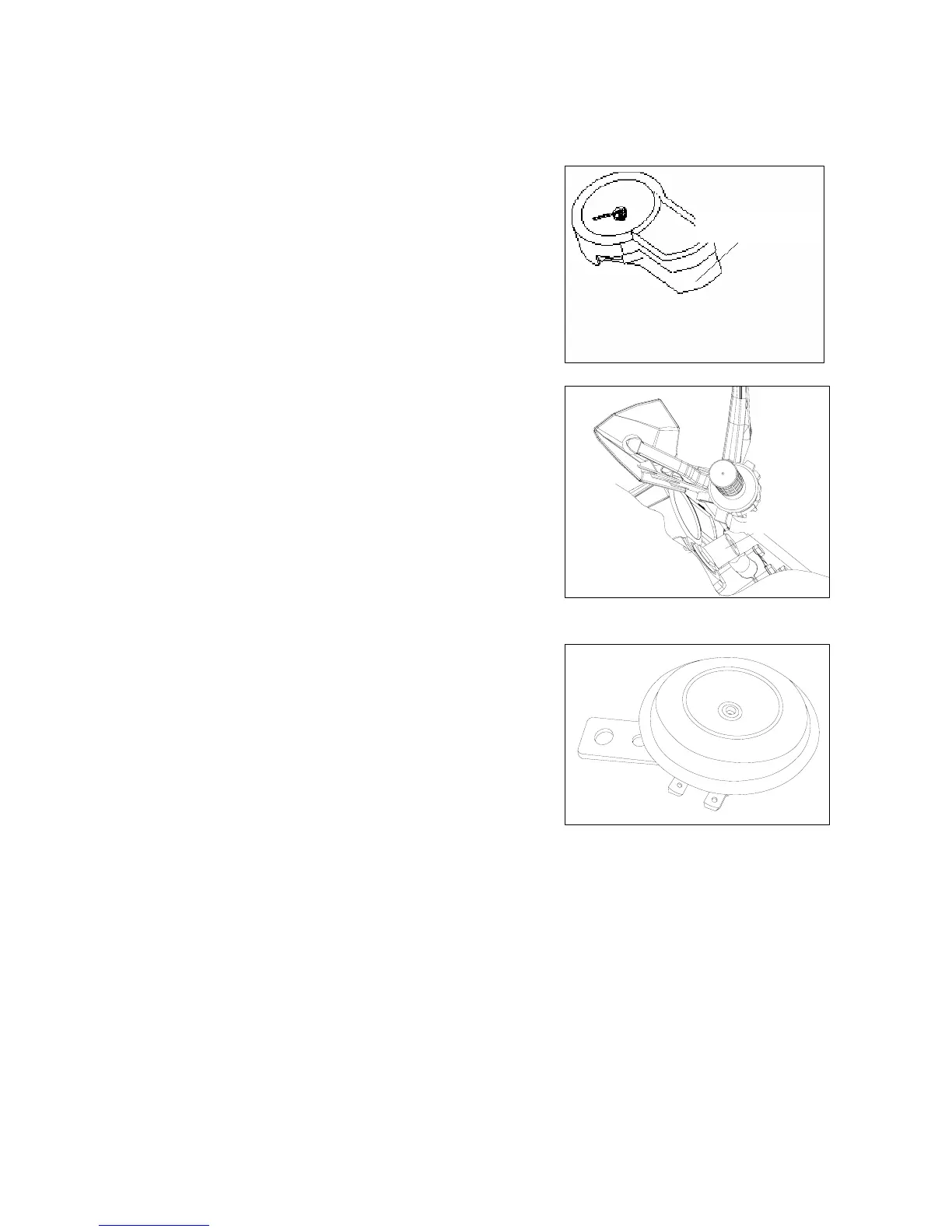

8.6 Instrument
Disassemble the rearview mirror；
Disassemble the faucet shield and unplug the waterproof
connector.
Disassemble the bolts.
Disassemble the instrument case so that the instrument
could be disassembled.
Install the speed indicator back to the original position in the
reverse order of disassembly.
8.7 Main switch
8.7.1 Inspection
Disassemble the setscrews.
Unload the fixing pad of the main switch.
Disassemble the setscrews and replace the main switch.
8.8 Horn
Inspection
Disassemble the horn wire.
If the horn rings when the horn wire is connected with the battery,
then it is the fine conditions.
8.9 Handle switch
Disassemble the rearview mirror and the handle cover.
Disassemble the handle switch connector.
Inspect the terminal of connector.
电源开关
instrument panel
p
ower switch
