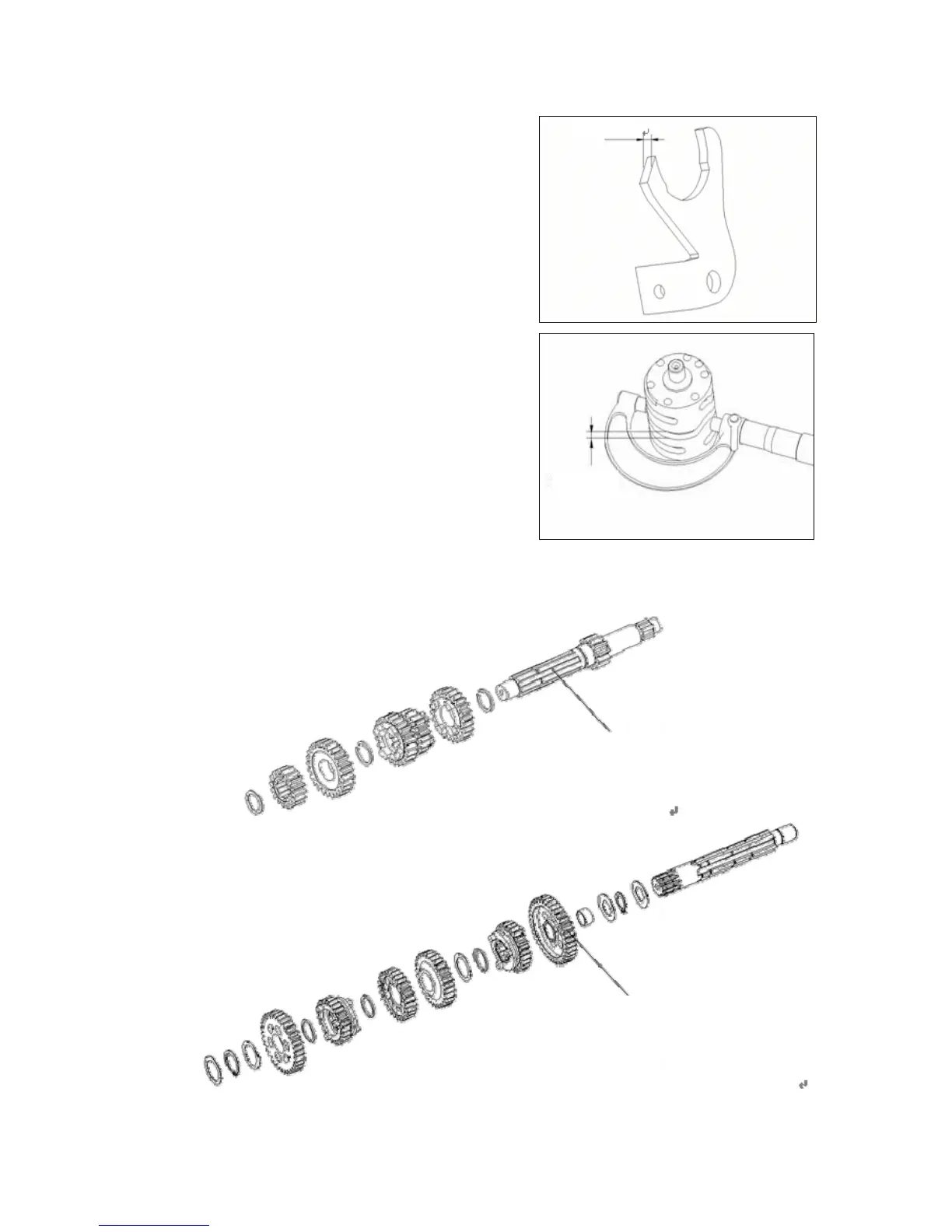

Measure the thickness of the shift fork.

Allowable limit ：3.90mm。

Measure the outer diameter of the shift drum.

Allowable limit ：41.75mm。

Measure the cotterway width of the shift drum.

Allowable limit ：6.3mm。

13. 5 Main shaft and sub shaft

13.5.1 Dismantling

sub shaft set

main shaft set

cotterway

width

thickness
