- 44 -
Tools：
Fixing spanner of steering lever
Fixing nut spanner
*Note：
•Clean the opening part of the body guard board with rags.
Specification of the front shock absorber
Length：862.5mm
Angle：64°
Compression stroke：200mm
3.5.3 Installation
Tools:
Fixing nut spanner
Rotate the front fork left and right to confirm there is no
loosening.
Steps：
Install the steering handle.
Install the front shock absorber.
Install the front wheel.

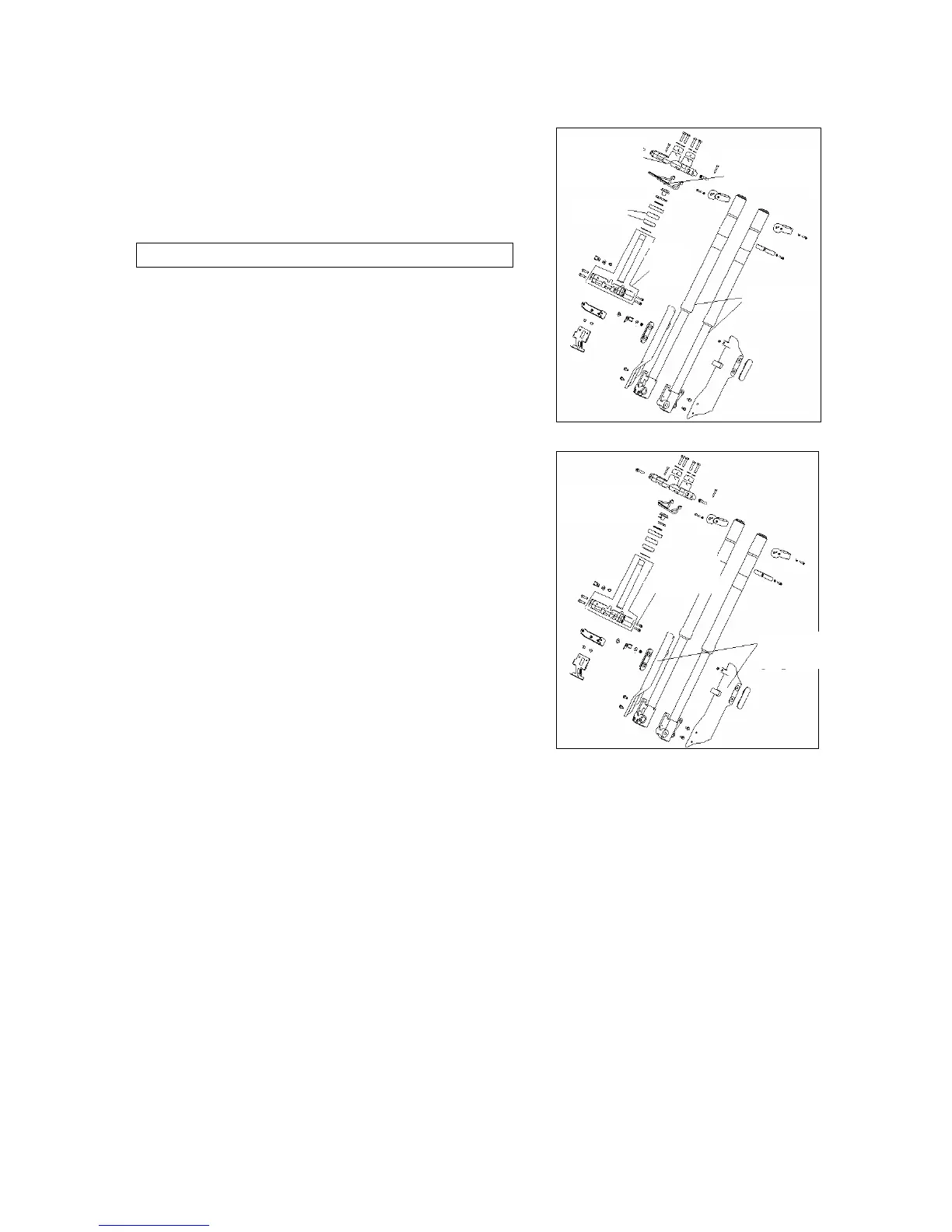

upper
connecting
board
l
ower
connecting
board
bearing
we
ld
assem
bl
y
of instrumen
t
su
pp
ort
f
ront s
h
oc
k
absorbe
r
fixing bolt of
steering column
fixing bol
t
s
h
oc
k
a
b
sor
b
e
r
guard
