Take down the elastic collar and flat gasket.
Take down the drive gear set of the oil pump.
Unscrew the bolts and take down the oil pump cover.
Disassemble the tight wire of the oil pump and unload
the tight wire fixing set as well as the oil tube sleeve.
Unscrew the bolts and take down the oil pump.
9.3.2 Dismantling

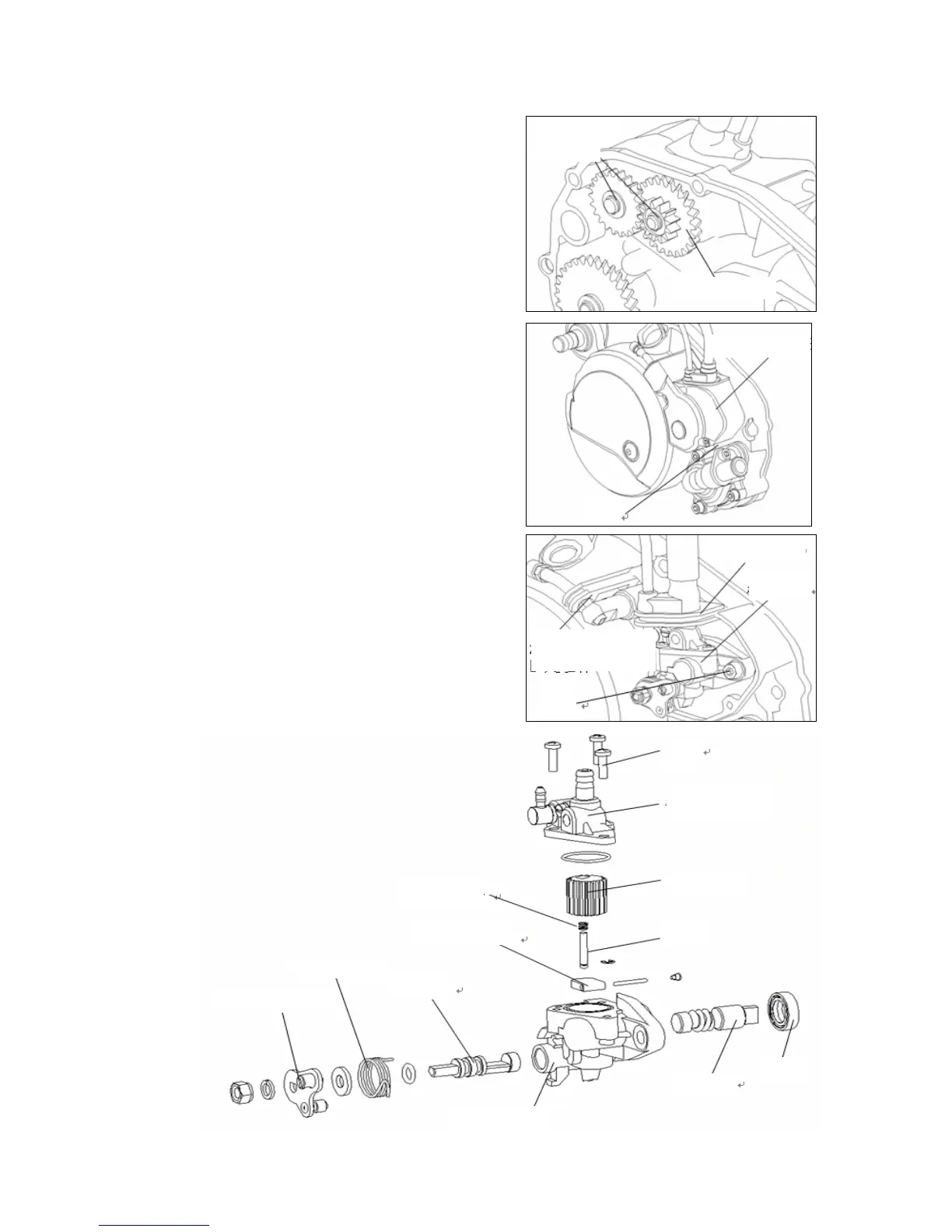

Dismantle the oil pump as shown in the diagram.
elastic collar
flat gasket
drive gear set
oil pump cover
bolt
oil tube sleeve
oil pump
tight wire fixing se
t
of the oil pump
bolt
bolt
oil pump cover
p
iston spring
worm wheel
regulating plate
p
iston
torsion spring
camshaft
throttle handle set
oil pump body
worm gear
oil seal
