The two evaporators share a single scroll pump via a vacuum valve manifold which
intelligently switches the pump to each evaporator on demand. The scroll pump is a dry
vacuum pump, compact in size, air cooled and driven directly by a single-phase electric
motor.
Data Logging is available, either by transferring files via a USB storage device, or by
connecting each evaporator independently to a PC.

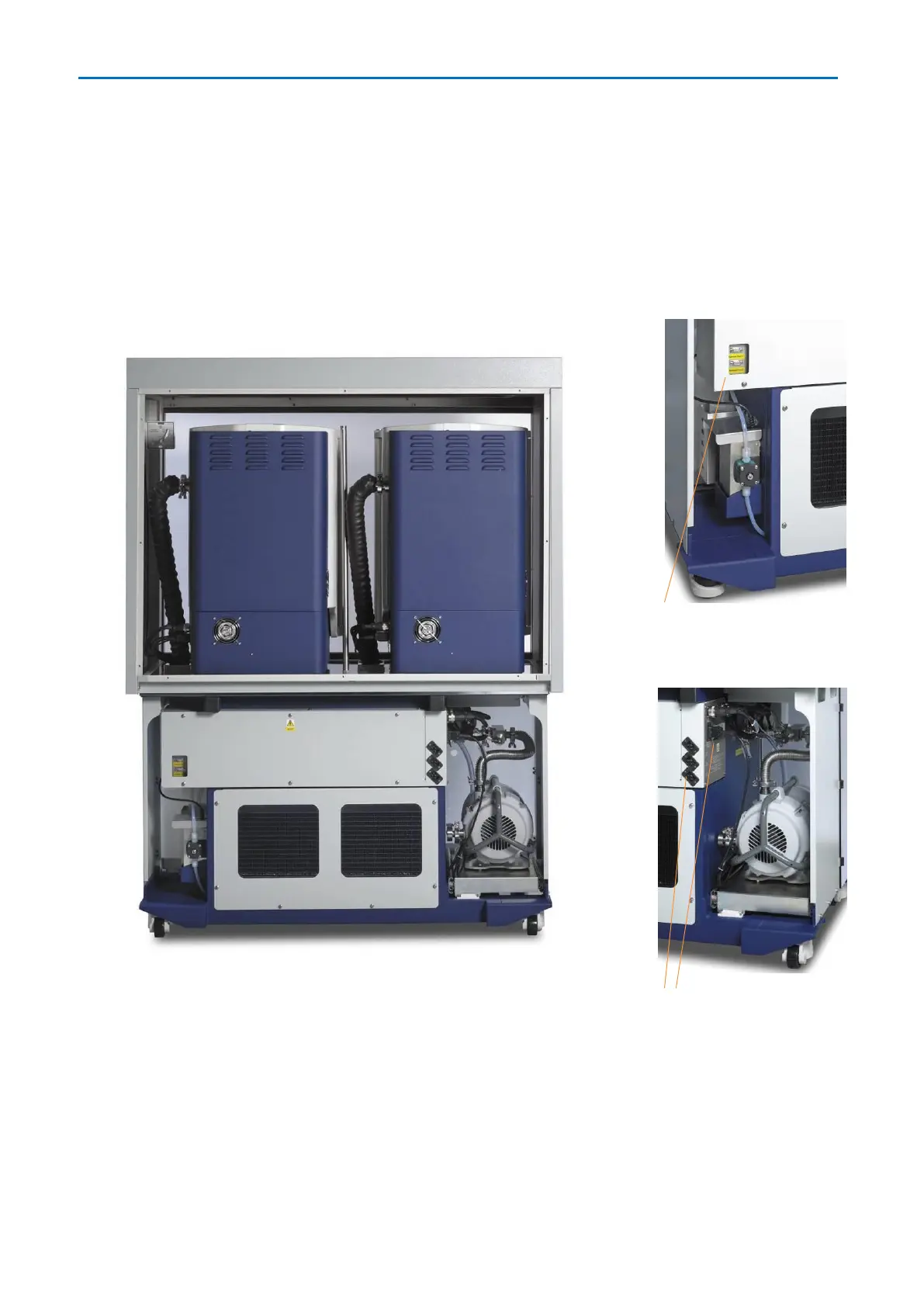

Rear view with fume hood rear panel
removed for clarity
Two data connections
& waste solvent pump
Three mains power supply
connections & electrical
circuit breakers
The optional fume hood fits on top of the HT-24 workstation and provides a totally enclosed
system. There are three transparent sliding doors in the front for easy access to the
evaporators and a window in each side. An exhaust spigot in the roof provides for
connection to a suitable fume extraction system and a flow meter is located in the top right
corner to monitor performance of the extraction system.
