Section 4 • Repair Procedures
REV A
September 2016
4 - 6 GRC Part No. 227123
Ground Controls
The ground controls, used to operate the machine
from the ground, can also be used to tune the
performance of the machine.
The ground controls consist of an Electronic
Control Module (ECM), emergency stop button,
key switch and circuit breaker.
Activating the function enable button and the up
or down at the same time, sends a signal to the
(ECM). This allows the platform to be raised or
lowered at the ground controls.
Note: Steer and drive functions are not available at
the ground controls.
When the ECM is in the set up mode, the ground
controls are used to adjust the function speed
parameters, machine models, or machine options.
For further information or assistance, consult the
Genie Industries Service Department.

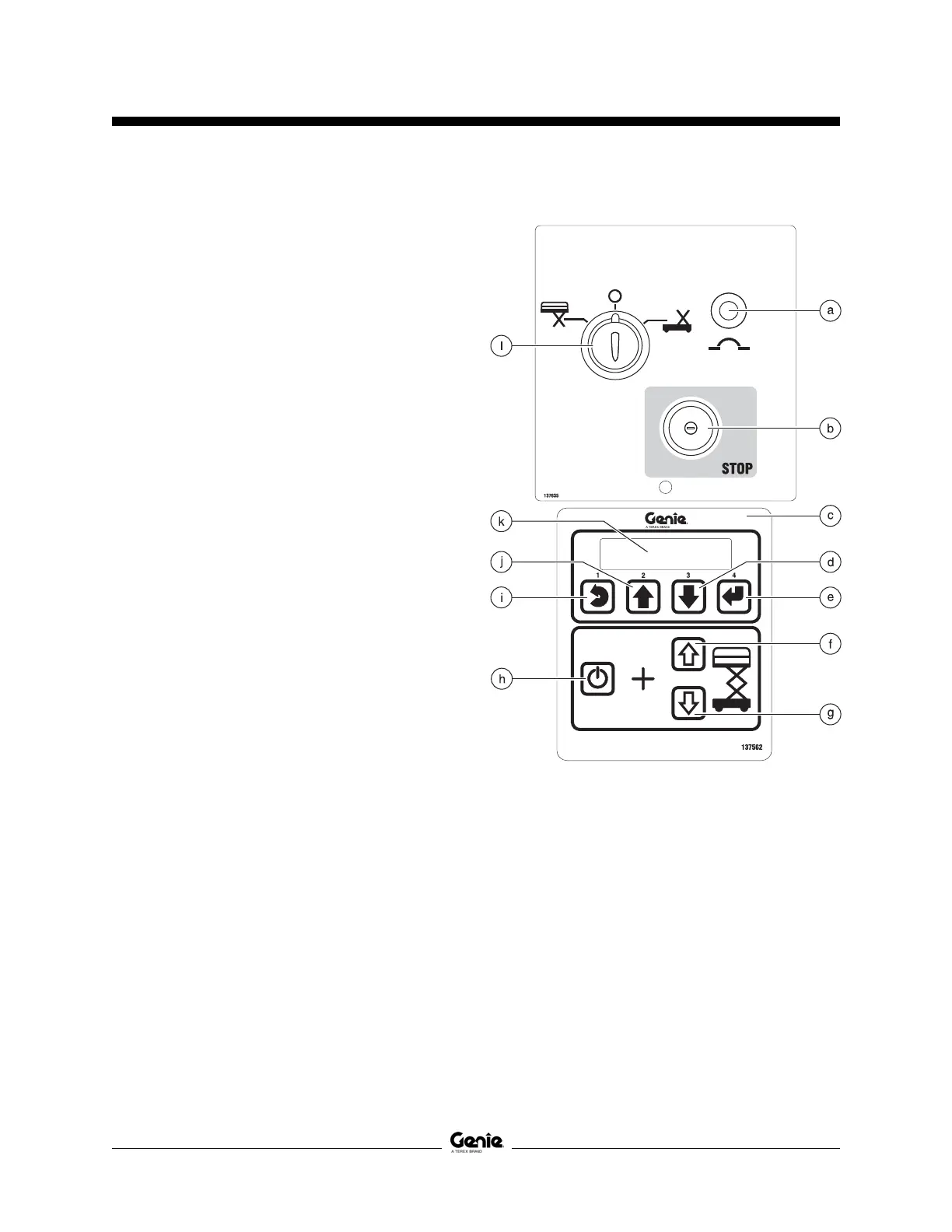

a circuit breaker CB2
b red Emergency Stop P1
c ECM U5
d machine setup, scroll down button
e machine setup, enter button
f platform up button
g platform down button
h lift function enable button
i machine setup, escape button
j machine setup, scroll up button
k LCD readout
l key switch KS1
