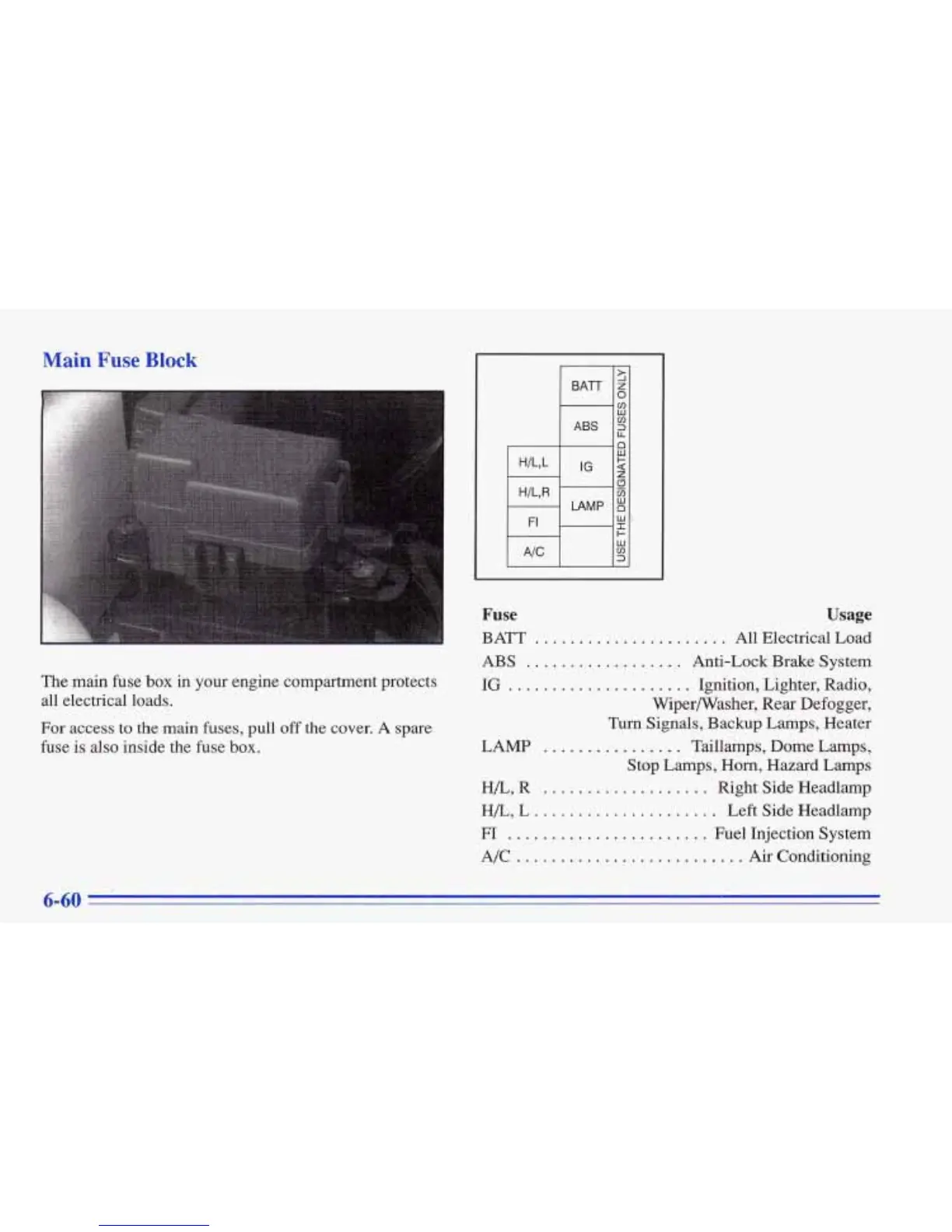

Main Fuse Block
The main fuse box in your engine compartment protects
all electrical loads.
For access
to the main fuses, pull off the cover. A spare
fuse is
also inside the fuse box.
Fuse
BATT ......
ABS .........
Usage
............ All Electrical Load
....... Anti-Lock Brake System
LAMP
...
IG . . ................. Ignition, Lighter, Radio,
Wiperwasher, Rear Defogger,
Turn Signals, Backup Lamps, Heater
Stop Lamps, Horn, Hazard Lamps
H/L, R ................... Right Side Headlamp
H/L, L ................. Left Side Headlamp
FI ....... .......... Fuel Injection System
A/C
.... ... ........ Air Conditioning
......... Taillamps, Dome Lamps,
6-60
