Zenith35 Pro GNSS Series - 16 -
Installation Guide © 2016 GeoMax AG, Widnau Switzerland

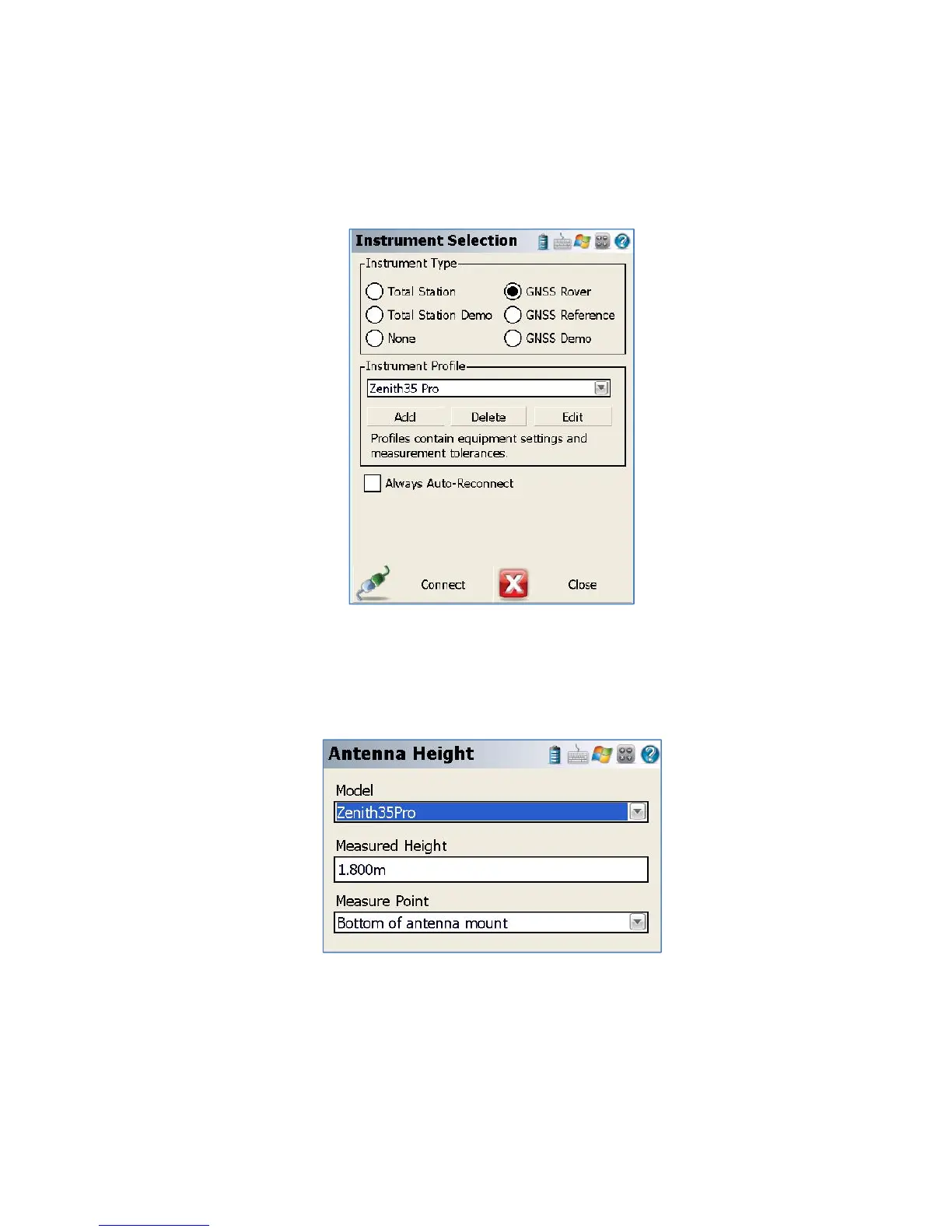

At the Instrument Selection screen that follows, a connection to the receiver can be
made. Ensure that the receiver is switched on and select either GPS Rover or GPS
Reference. In the Instrument Profile window, tap Add and enter a name for your
receiver. Save the name and then tap Edit to configure the profile.
To ensure that measured heights are computed correctly, it is important to define the
receiver type. At the Antenna Height panel, choose the Model as Zenith35 Pro. The
Measured Height is the default length of the telescopic pole.
At the Model & Communication panel, select the Make as GeoMax, Model as Zenith35
Pro and Port as Bluetooth. Tap Bluetooth Search to find all available devices and choose
the required receiver by its serial number.
