GeoMax Zoom95 Series - Instrument Components; Component Identification and Description

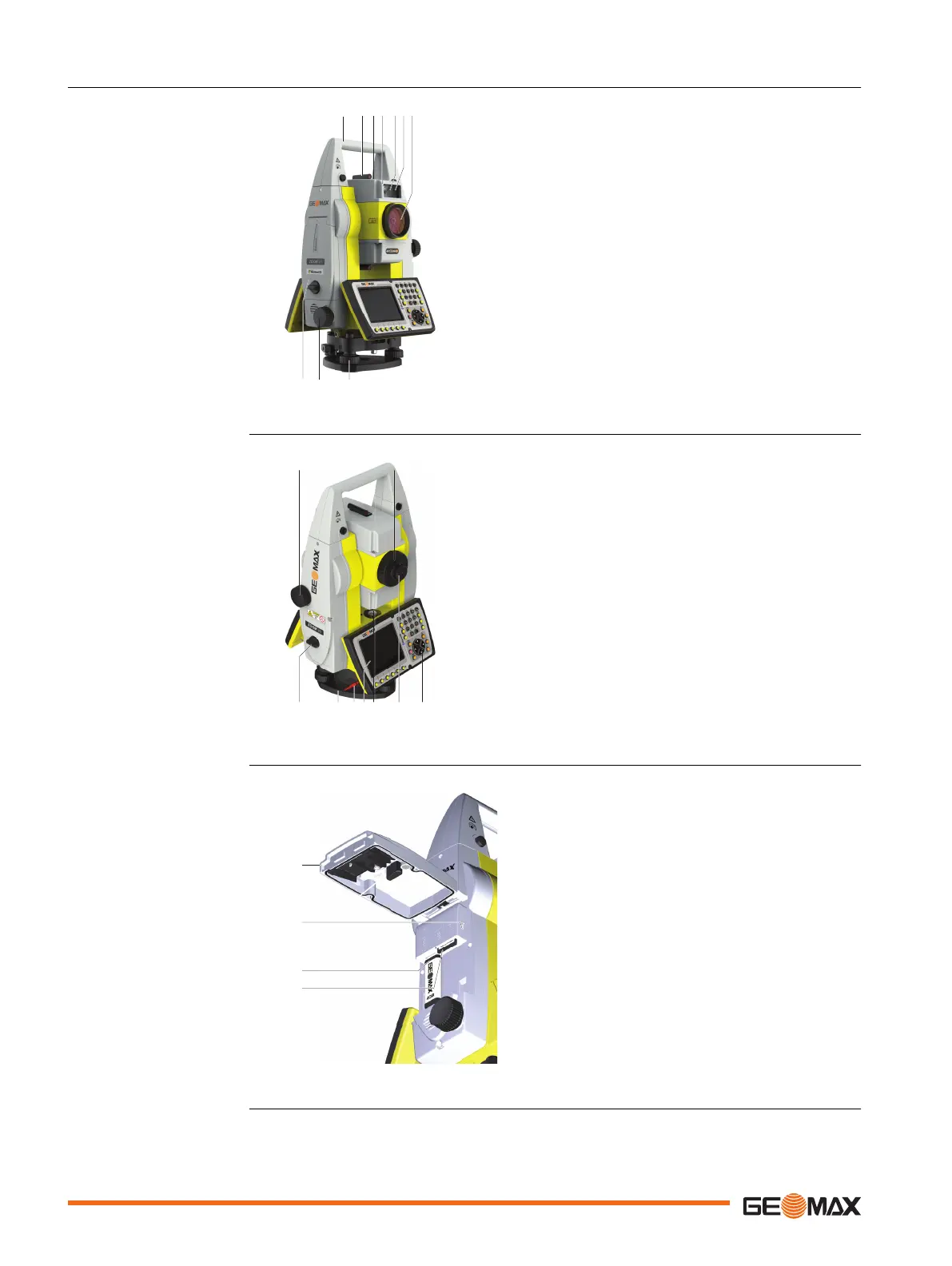

2.4 Instrument Components
a b
h
i
j
c fed g
9835_002
a Carry handle
b Optical sight
c Telescope, integrating EDM, AiM, NavLight, Scout*
d NavLight flashing diode - yellow and red
e Scout, transmitter*
f Scout, receiver*
g Coaxial optics for angle and distance measurement, and
exit port of visible laser beam for distance measurements
h Communication side cover
i Horizontal drive
j Tribrach securing screw
*Zoom90 only
a
c
e f gd h i
b
9837_002
a Vertical drive
b Focusing ring
c Battery compartment
d Tribrach footscrew
e Stylus for touch screen
f Touch screen
g Circular level
h Interchangeable eyepiece
i Keyboard
9838_002
a
c
d
b
a Compartment lid
b USB device port (mini AB OTG)
c USB host port for USB stick
d SD card port
Instrument components
part 1 of 2
Instrument components
part 2 of 2
Communication side cover
24 Description of the System
