8.
V=90°
+ 27°
- 27°
011051_001
Aim the telescope accurately at a visual target at about
100 m distance or less if not possible. No distance reading is taken during these
steps so a prism target is not required. The visual target must be positioned at least
27 °/30 gon above or beneath the horizontal plane.
9. Press OK to measure and continue to the next step.
10.
Motorised instruments change automatically to the
other face. It is recommended carefully fine-point to the target manually.
11. Press OK to measure and continue to the next step.
12. Repeat steps 8,9,10 and 11 for the second set. Continue with step 13.
13. The results are shown on the screen. If the values are okay, press OK to store or
press ESC to decline.

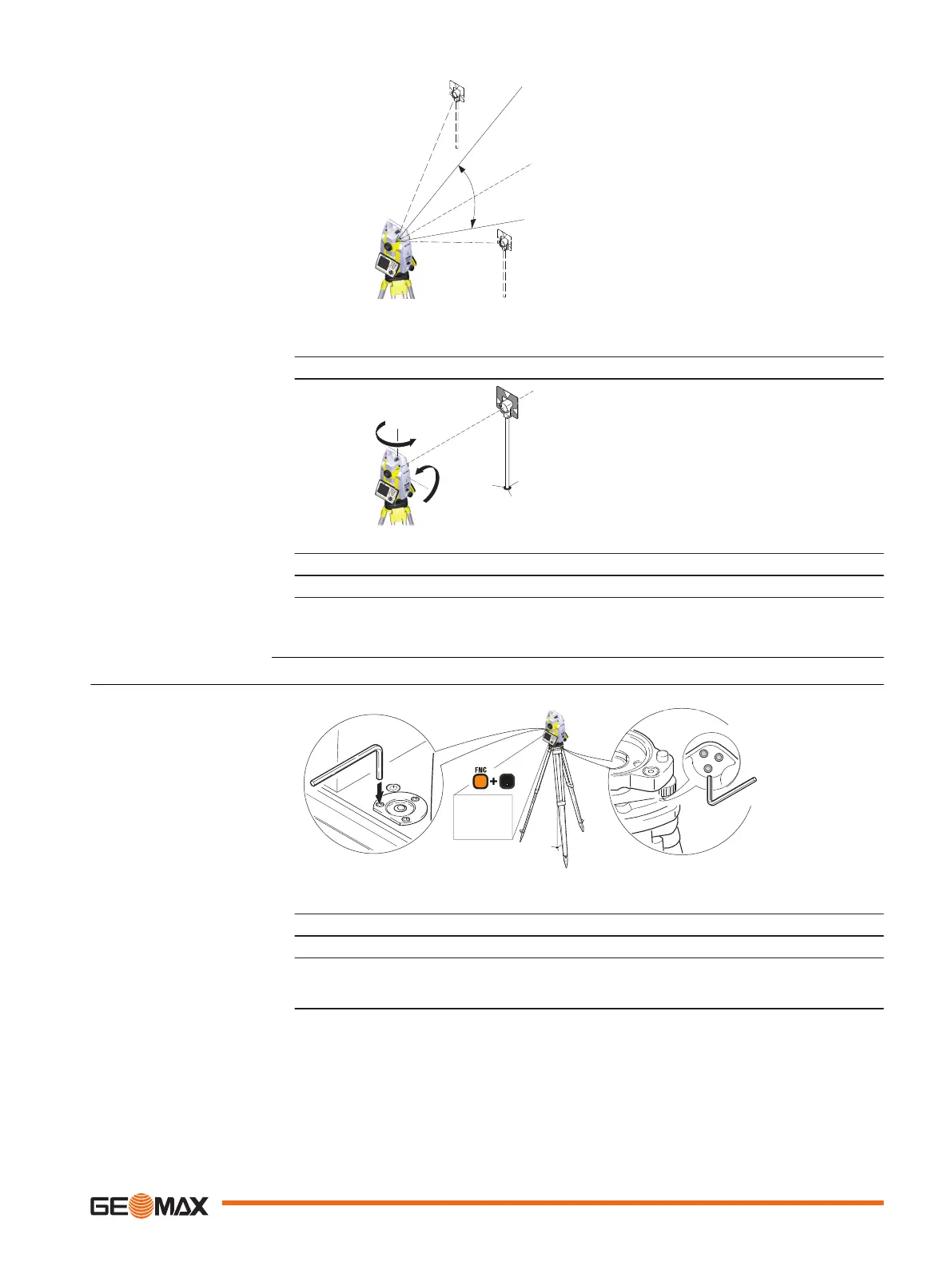

6.2.4 Adjusting the Circular Level of the Instrument and Tribrach
1. Place and secure the instrument into the tribrach and onto a tripod.
2. Using the tribrach footscrews, level the instrument with the electronic level.
3. Access the electronic level and laser plummet by using the key-combination <FNC>
+<.> or by starting GeoMax Toolkit and go to MAIN MENU screen and select
Level.
Adjusting the circular
level step-by-step
Apps 47
