222

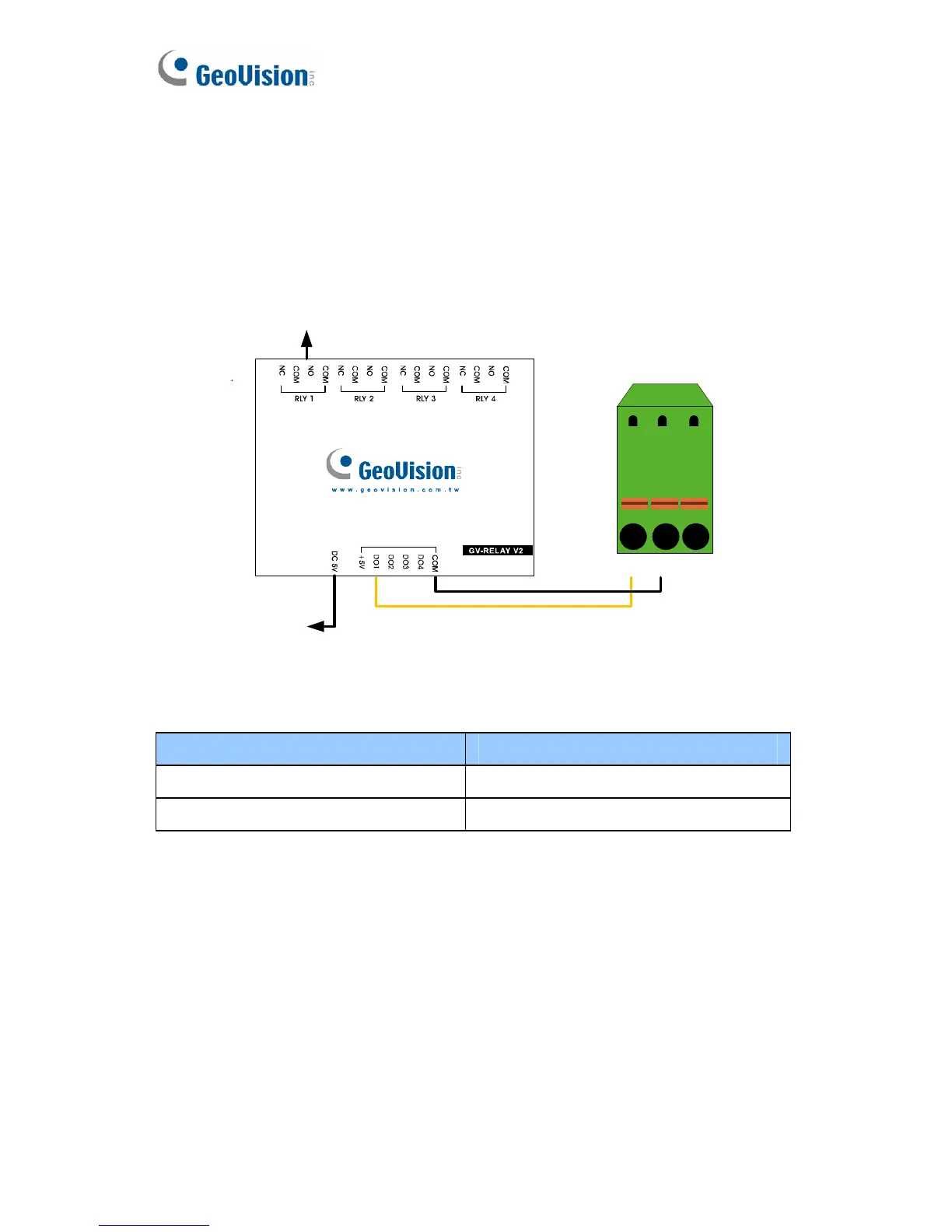

15.6.2 Voltage Load Expansion (Optional)

The camera on its own can only drive a maximum load of 200mA 5V DC.

To expand the maximum voltage load to 10A 250V AC / 10A 125V AC /

5A 100V DC), connect the camera to a GV-Relay V2 module (optional

product). Refer to the figure and table below:

Connect to Power

Output Device

I/O

Figure 15-22

GV-Relay V2 Bullet Camera

COM Pin 2 (GND)

DO1 Pin 1 (Digital Output)
