2.3.2 GV-BX1200 Series / 1300 Series / 1500 Series /
2400 Series / 2500 Series / 3400 Series / 5300 Series
1 2 4
5
6 7
8 9
10
3
11
12 13
14
16
15

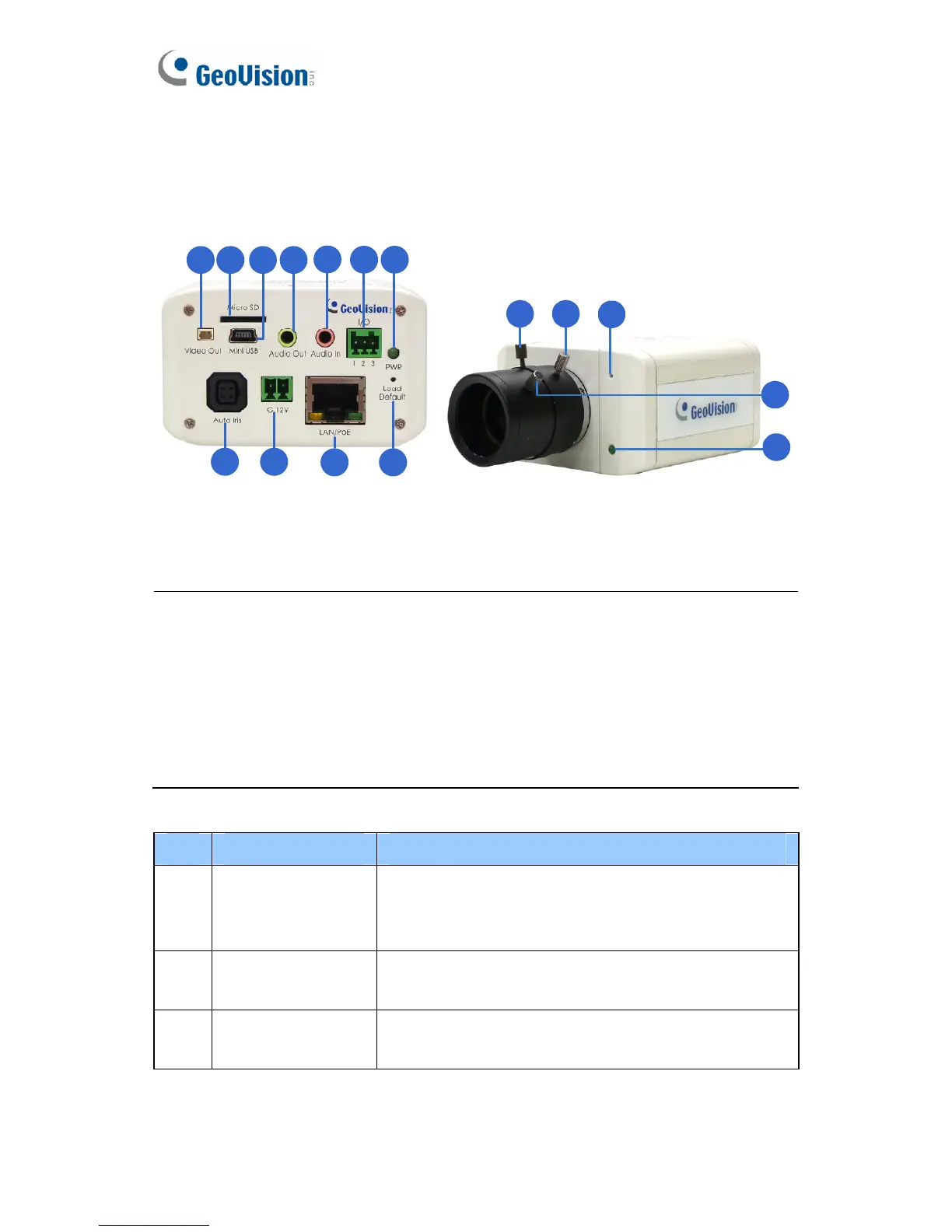

Figure 2-2
Note:
1. The Auto Iris Connector (No. 8) is only functional for varifocal
models of GV-BX1200 / 1300 / 1500 / 2400 / 2500 / 3400.
2. The Iris Screw (No. 12) is only available in GV-BX5300-6V.
3. The Zoom Screw (No. 13) is only available for varifocal models of
GV-BX1200 / 1300 / 1500 / 2400 / 2500 / 3400 / 5300.
No. Name Description
1 Video Out
Connects to a portable monitor for setting the
focus and angle of Box Camera during initial
installation.
2
Memory Card
Slot
Inserts a micro SD card (SD/SDHC, version
2.0 only, Class 10) to store recording data.
3 Mini USB Slot
Connects to a GV-WiFi Adapter or a USB
hard drive.
12
To Next Page
