GeoVision GV-FD120D User Manual

5.5 Connecting the Camera
5.5.1 Wire Definition

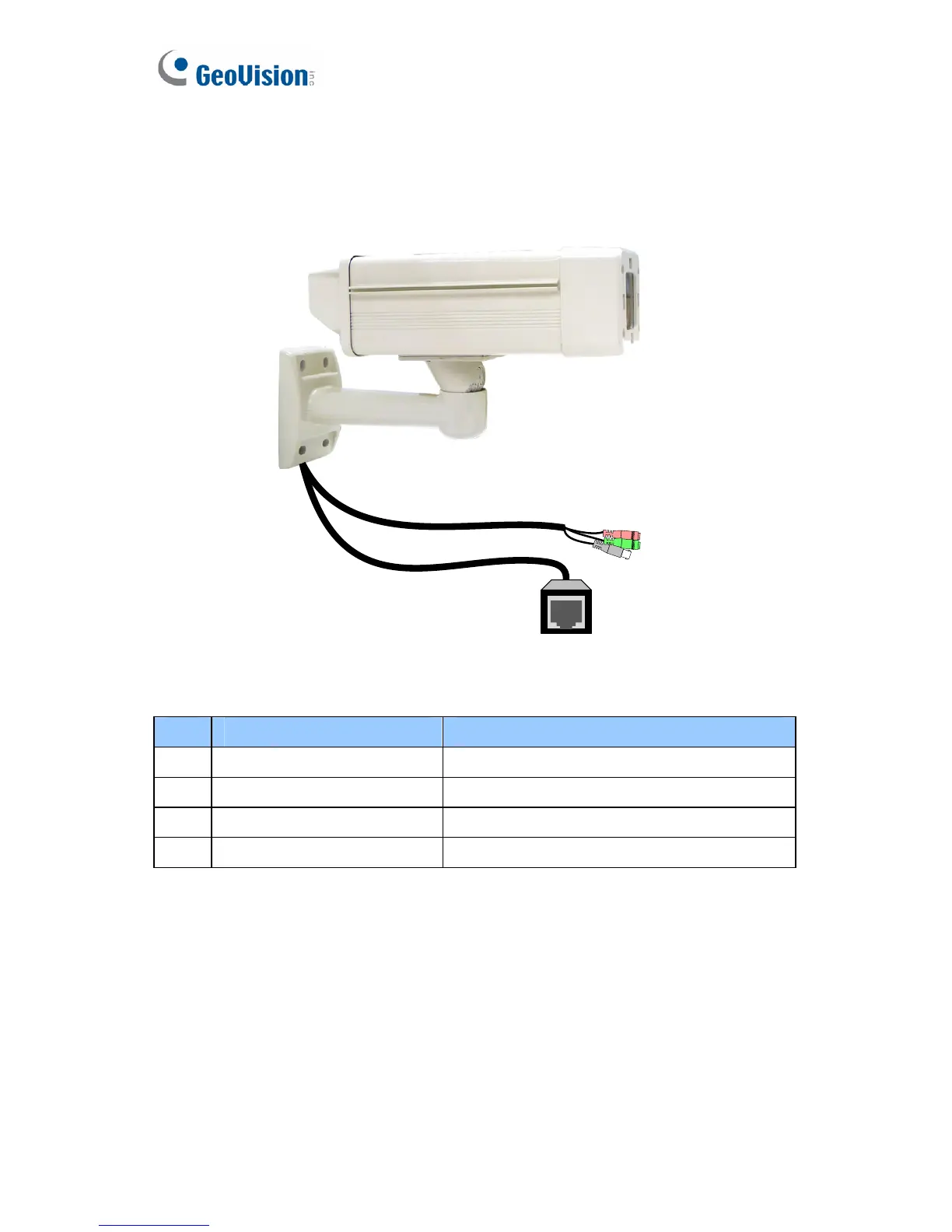

Figure 5-10
No. Wire Color Definition
1 Black (thick) PoE
2 Black BNC TV out
3 Green RCA Audio Out
4 Pink RCA Audio In
1. Optionally connect a speaker (green) and an external microphone
(pink).
2. Optionally connect a monitor using a Video Out wire. Enable this
function by selecting your signal format at the TV Out field on the
Web interface. See 20.1.1 Video Settings.
