Getinge HS 6613 ER-2 - Avanti Screen Display: Plot Graph

CONTROL UNIT - 63

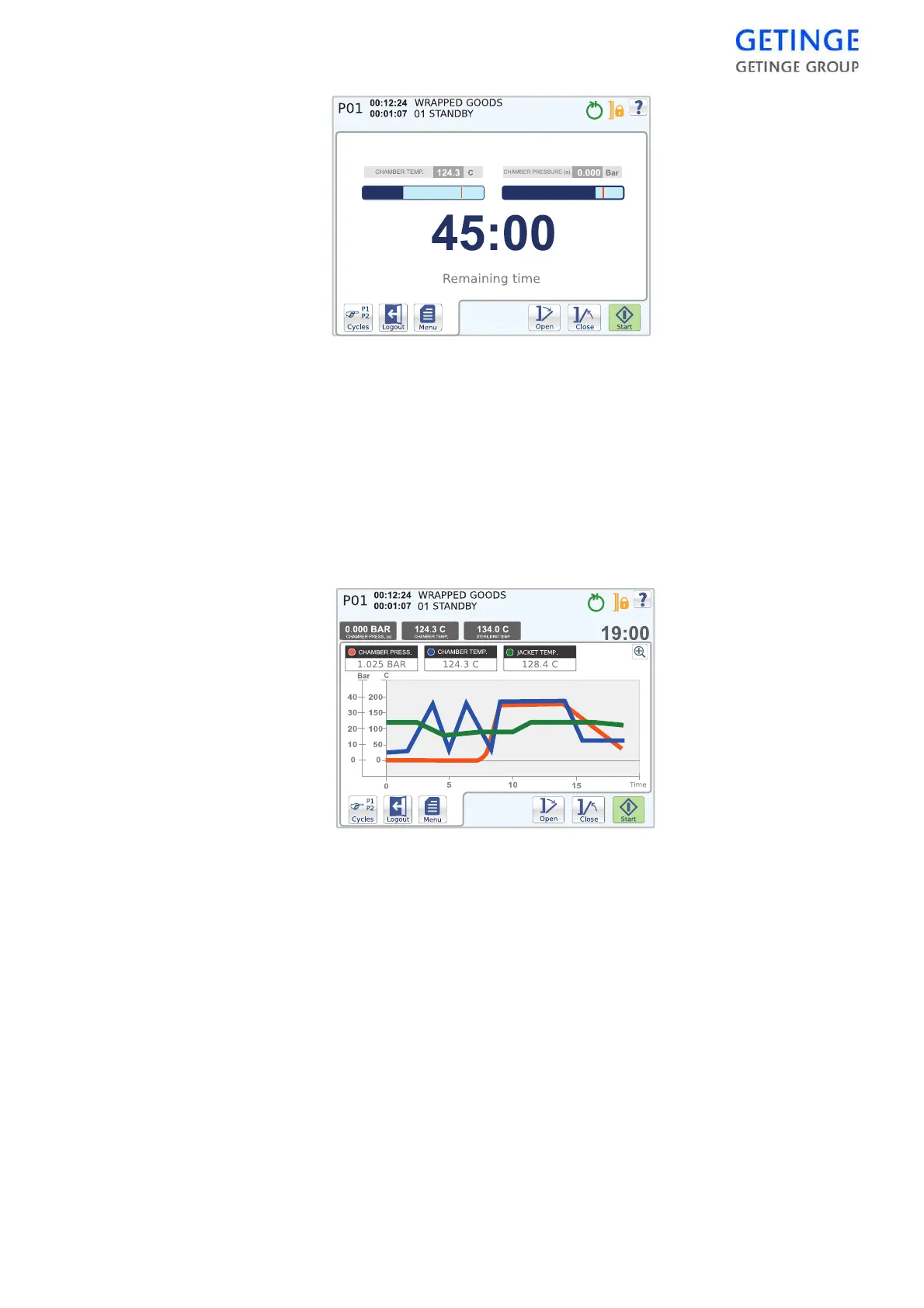

The following cycle parameters are displayed:
• Current chamber temperature
• Current chamber pressure
Plot graph
The start screen displays a plot graph with various cycle parameters.
The status field also shows other cycle parameters. The remaining cycle
time is displayed to the right in the status field.
The following cycle parameters are displayed in the status field:
• Current chamber pressure
• Current chamber temperature
• Sterilization temperature for the selected cycle
The following cycle parameters are displayed as graphs:
• Current chamber pressure
• Current chamber temperature
• Current jacket temperature
