Getinge HS 6613 ER-2 - Unit Instruments and Controls; Loading Side Instrument Identification

INSTRUMENTS - 23
INSTRUMENTS
Loading side
Operator's control panel
Learn the function of the control panel by studying
chapter Control unit PACS 3500.
Door-blocking key
See chapter Introduction, “Safety devices, an overview”.
Emergency stop
See chapter Introduction, “Safety devices, an overview”.

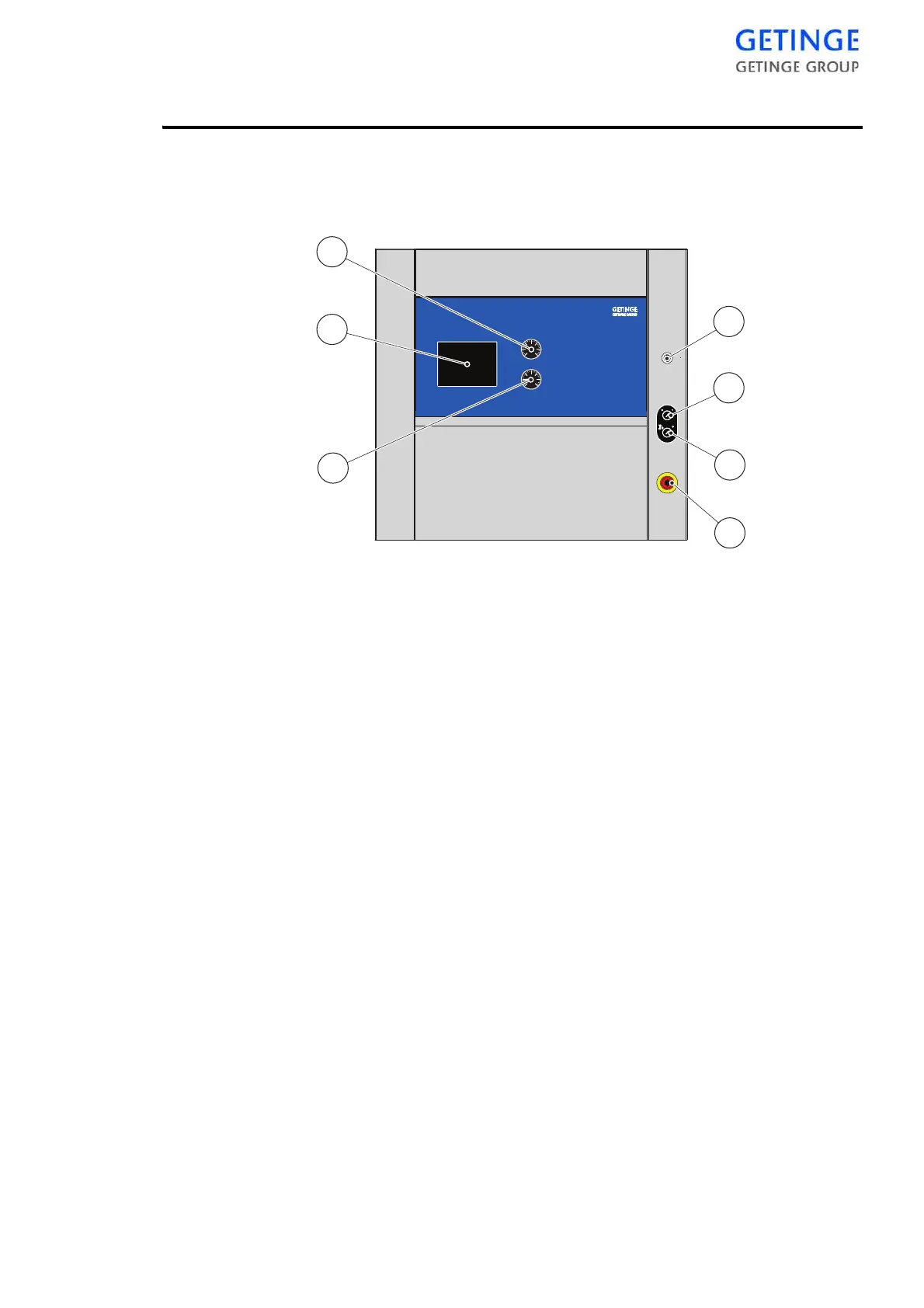

1. Steam supply pressure gauge. 5. Control switch.
2. Pressure gauge chamber pressure. 6. Door interlock key
3. Operator's control panel 7. Emergency stop.
4. Panel lock.
2
3
5
1
4
7
6
