7.4 Removing cover panels
For maintenance from above, from the side or from behind, the
machine’s cover plates must be removed.
• Unscrew the four screws that hold the cover in place.
• Then unscrew the two screws in the back edge of each side
plate.
• Lift and remove all plates.
000419

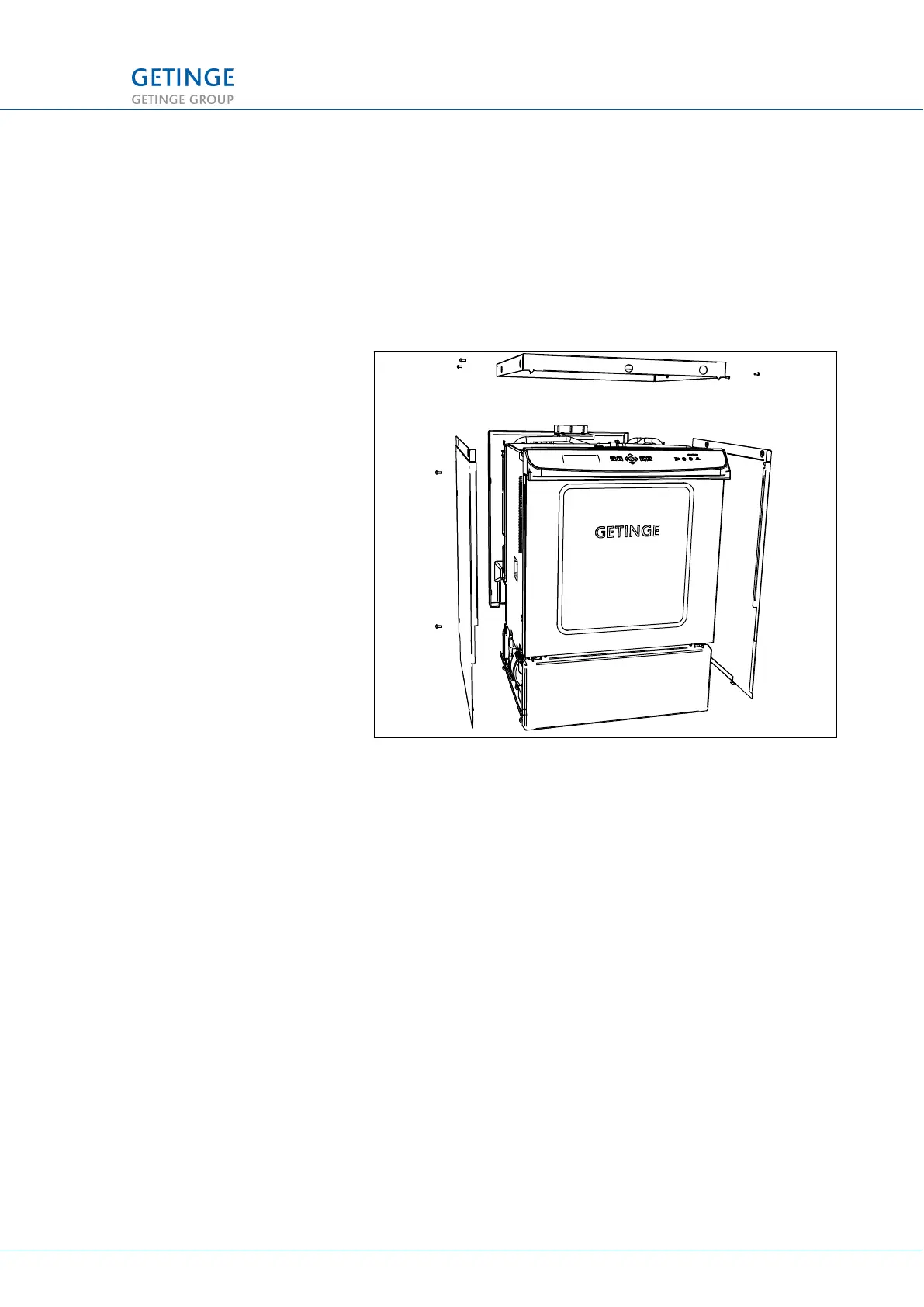

Figure 19. Cover plates
7 REPAIRS AND ADJUSTMENT
TECHNICAL MANUAL GETINGE WD15 CLARO 85 (128)
