GEZE ECturn Mounting Instructions

ECturn
11
Mounting

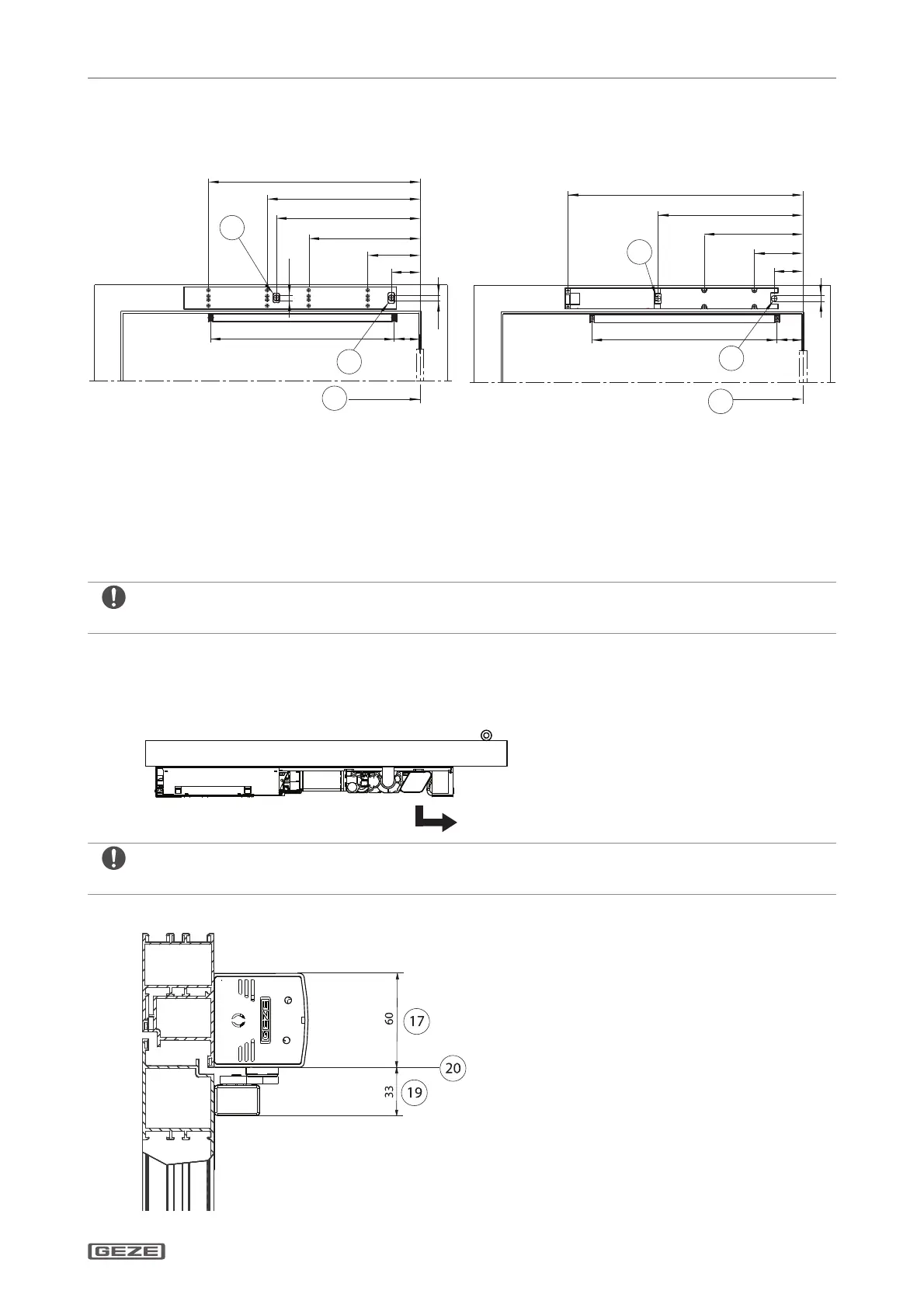

Transom mounting opposite hinge side with guide rail8.2.2
Fixing with mounting plate Direct  xing
575
415
390.5
302
142
78
Ø16
70
498.5
Ø16
16
14
15
633
390.5
266
131
78
70
498.5
Ø16
16
15
14
14 Dimensional reference hinge middle
15 Cable entry for power supply cable
16 Cable entry for control cables
Observe drilling template: DIN left and DIN right mirrored.
X
Fastening means
Mounting plate M5 à
Base plate M5 or chip board screws à
Guide rail M5 or chip board screws à
Take drive orientation into account: Motor towards hinge.
X
Required space
17 ECturn required space
19 Required space for guide rail
20 Dimensional reference bottom edge frame (lintel)
