GFA TS 959 - Mechanical Installation

10
6 Electrical installation
WARNING
Danger to life from electric shock!
Improper wiring may result in severe or fatal injury from electrical current.
 Allow only qualified electricians to carry out the work.
 Disconnect all cables from the power supply.
 Secure the mains disconnector against plugging in or switching it on again.
 Observe valid regulations and standards.

Use suitable tools.
WARNING
Mortal danger due to inadequate fuse!
Without the correct on-site backup fuse and mains disconnector, there is a risk of fatal or severe injury from
electrical current.
 Carry out the connection to the indoor installation using an all-pole disconnector unit of ≥ 10 A as per EN
12453 (e.g. CEE plug connection, main switch).

Use a Type B residual current circuit breaker for a drive unit with a 3
-
phase frequency inverter.

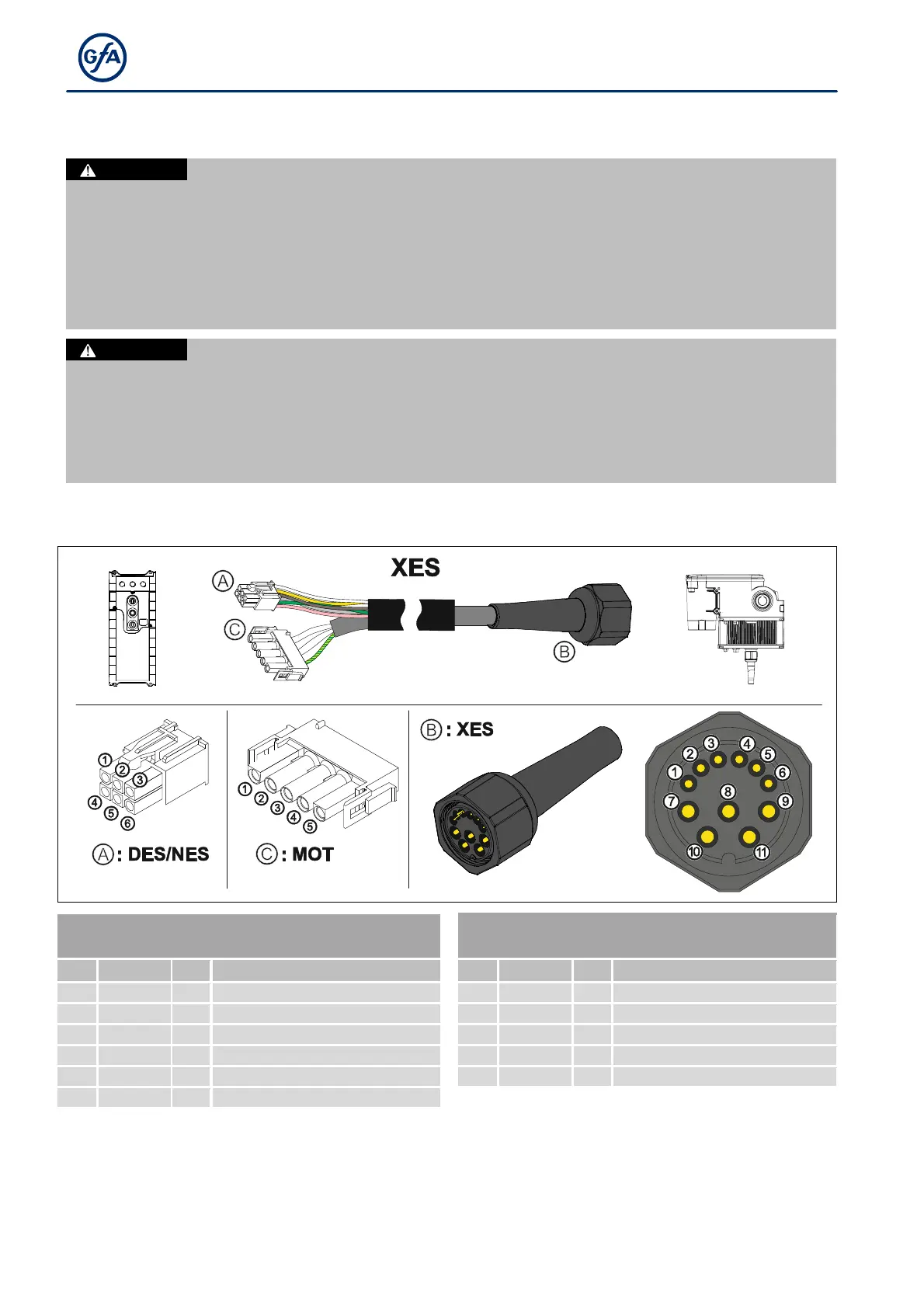

Overview connection cable XES
Ⓐ
DES
↔ Ⓑ
XES
Ⓒ
MOT
↔ Ⓑ
XES
Pin
Core
Pin
Description
Pin
Core
Kl.
Description
①
5/ws
①
Safety circuit +24 V
⑦
3
W
Phase W
②
6/br
②
Channel B (RS485)
⑧
2
V
Phase V
③
7/gn
③
Ground
⑨
1
U
Phase U
④
8/ge
④
Channel A (RS485)
⑩
4
N
Neutral conductor (N)
⑤
9/gr
⑤
Safety circuit
⑪
PE
PE
⑥
10/rs
⑥
Supply voltage 8 V DC
