GFA TS 959 - X1 - Mains Supply; Supply of External Devices; X2 - Safety Devices

16

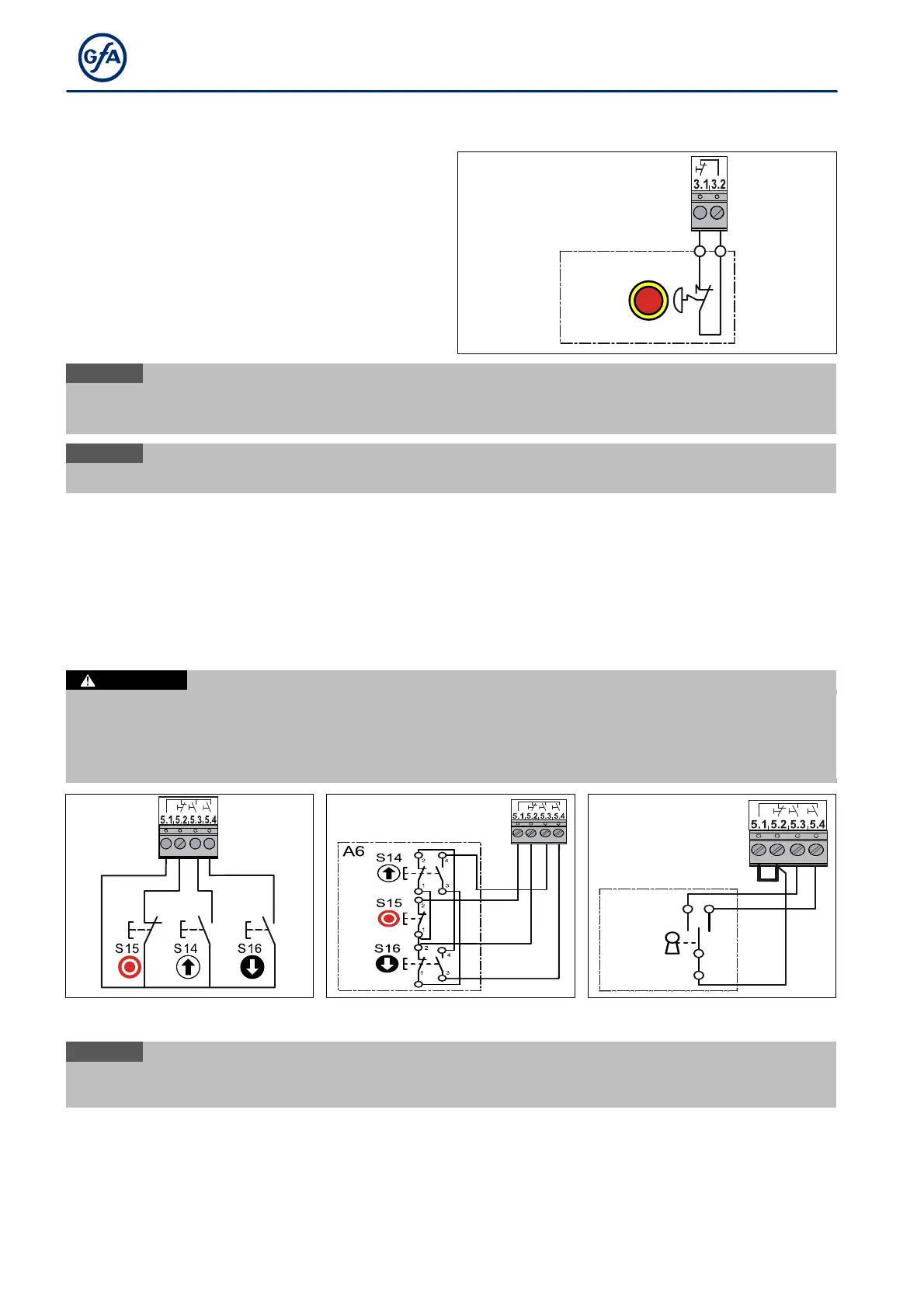

X3 - Emergency Stop
The emergency STOP control device is connected to a
safety circuit with Performance Level c
(Plc) according to ISO 13849-1.
Alternativly you can connect an emergency STOP
control device as per EN 13850 or an evaluation unit
for an anti-trap safety device.

Install the product according to the manufacturer‘s
instructions.
X3
A2
2
1
S15
i
NOTE
In the case of
a drive unit with a frequency i
nverter, the door control can only be operated again 30
seconds
after the emergency stop switch has been unlocked. Meanwhile, the gate control display flashes.
i
NOTE
When activating the emergency stop
switch fault indication
F 1.4
appears.
X5 - External control device
You can connect an external control device for operating the door to terminals X5.1 to X5.4.
 Install the product according to the manufacturer‘s instructions. Several examples of control devices are
shown.
WARNI
NG
Danger due to unattended door movement!
The safety devices are deactivated in operating mode hold-to-run. People or objects in the movement path
are not detected.

Install and operate the contro
l device only with a clear view
of the door.
X5
X5
X5
P
1
S17
2
A4
Triple pushbutton Triple pushbutton with command interlock Key pushbutton
i
NOTE
If you connect a control device
without
a STOP button to terminals X5, you need to install a jumper
between
X5.1/X5.2.
