GFA TS 959 - Overview Connection Cable DES;NES

12

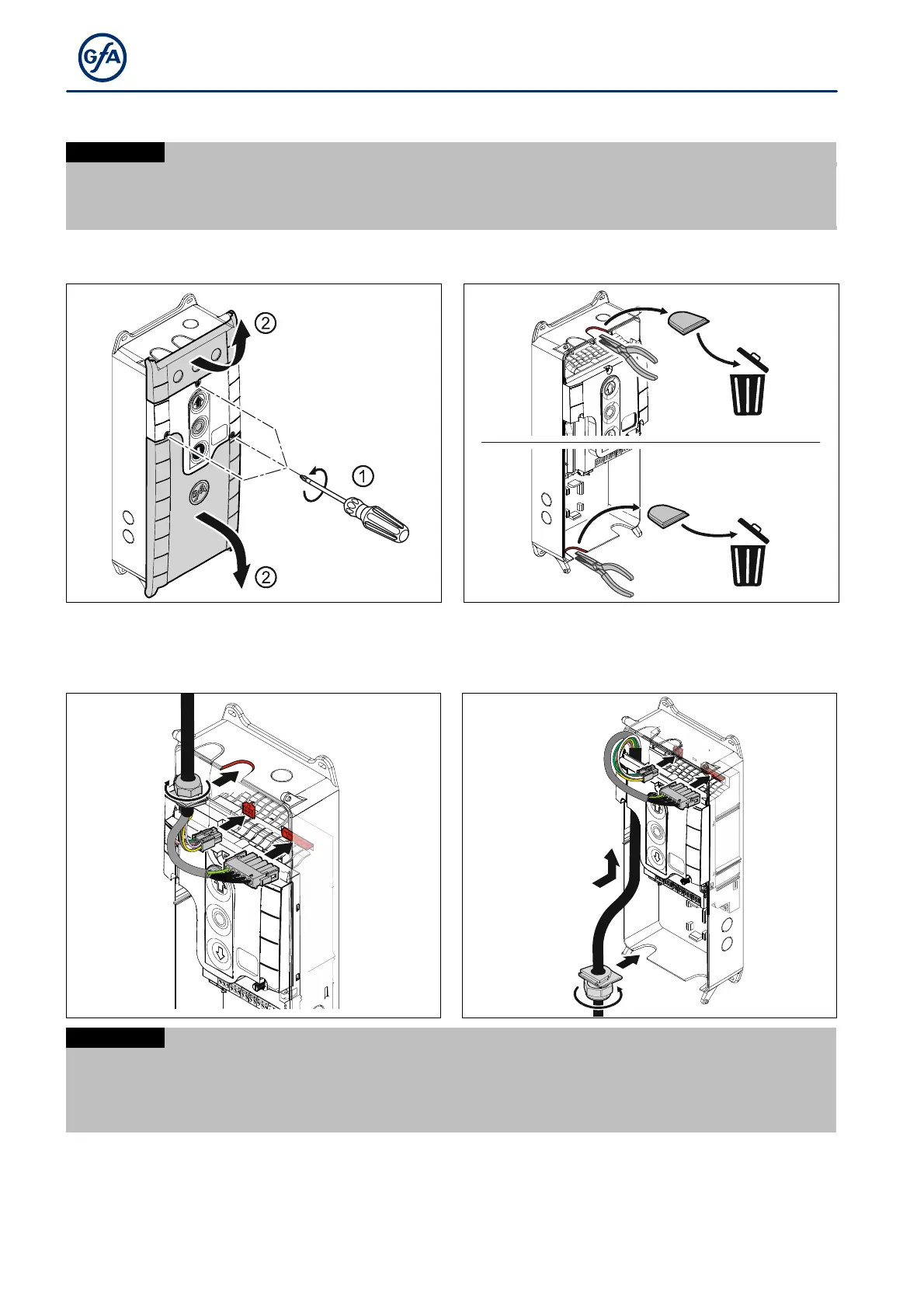

Connecting door control and drive unit
NOTICE
Damage to the product due to work
carried out improperly
 Use proper tools to prevent damage and leakage.

We recommend wiring the door control from below.
1. Remove the covers.
2. Open the cable entries at the top
or
bottom.
a)
b)
3 a) Connection
cable at the top:
 Run the connection cable through the housing
and insert the plugs.
 Tighten the cable gland.
3 b) Connection line at the bottom:
 Run the connection cable through the housing
and insert the plugs.
 Tighten the cable gland.
a)
b)
NOTICE
Damage due to moisture or
penetrating foreign bodies
 Check that all cable glands are tight.
 Seal open and unused cable entries with blanking plugs. This will prevent moisture or foreign bodies such
as insects from penetrating.
