Release 00 - 02/2008
Engine WBE 0701-WBE 0704
pag. 19
Service manual

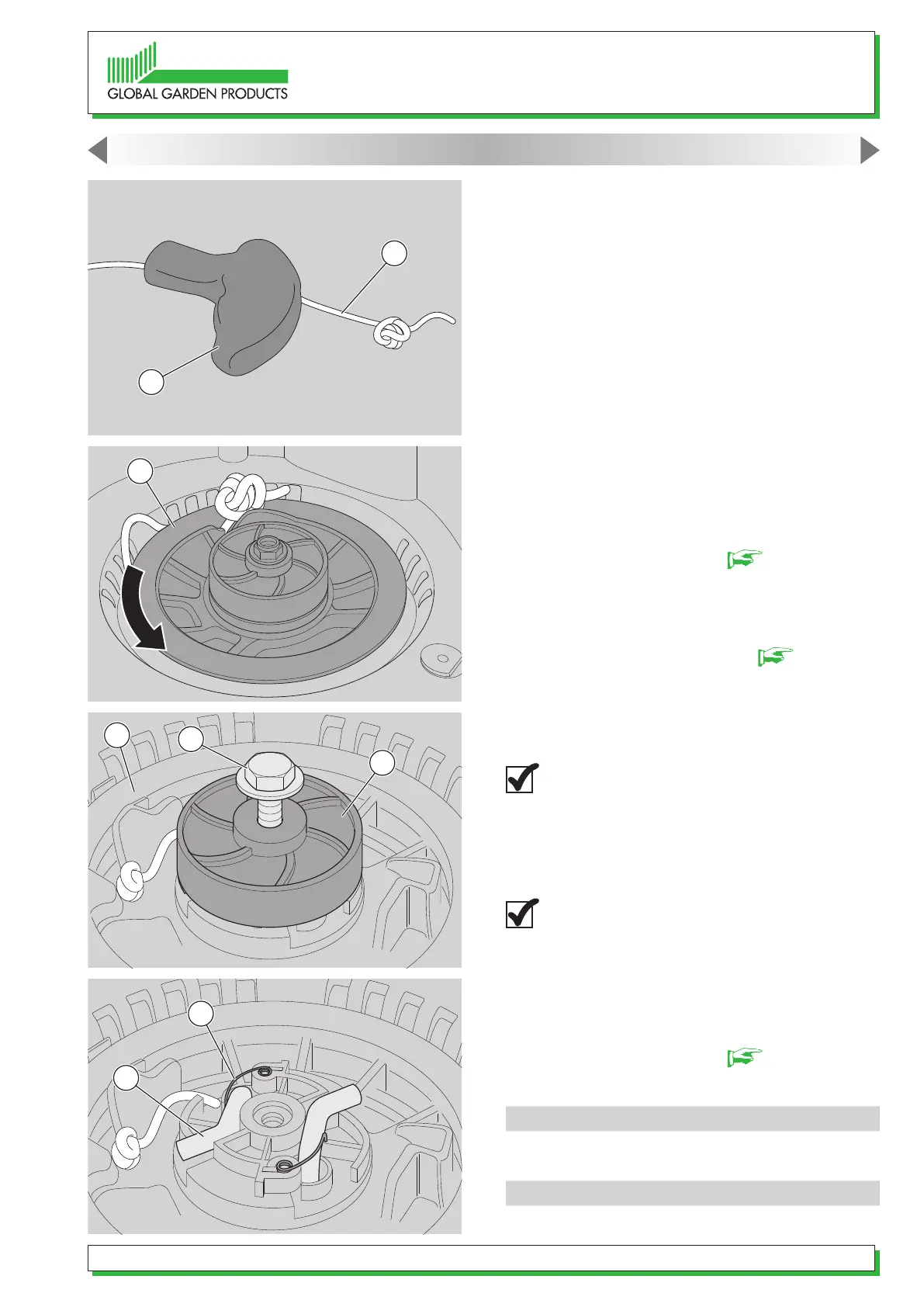

6. STARTING SYSTEM
4 - Insert one end of the rope (5) (ø 3.5mm - length
2500mm), through the guide in the ventilation grille,
into the hole in the pulley (4), and fasten it by tying
a knot.
5 - Insert the other end of the rope into the grip (6)
and fasten it with a knot.
6 - Rotate the pulley (4), without winding the rope
onto it, through about 6 complete turns anti-
clockwise in order to load the spring. Carefully
release the pulley to allow the rope to rewind itself
completely onto the pulley.
7 - Check that the pulley rotates freely.
8 - After pulling the entire length of the rope, check
that the pulley (4) is able to complete another 2-3
turns before compressing the spring.
9 - Ret the starter assembly [ 6.1].
6.3. Replacing the hooks
1 - Remove the starter assembly [ 6.1].
2 - Undo the screw (7) clockwise and remove the
cover (8), setting aside the spring and washer.
Take care that the pulley (4) does not slide out of
its housing.
NOTE: The screw (7) has a left-handed
thread and therefore should be unscrewed
clockwise.
3 - Move the return springs (9) gently out of the way,
rotate the hooks (10) clockwise and remove them.
NOTE: Always replace the complete set
consisting of hooks, return springs, cover and
screw, as a unit.
4 - When tting, tighten the screw (7) to the torque
indicated.
5 - Ret the starter assembly [ 6.1].
Tightening torques
3
Fixing nuts, starter assembly
8-10 Nm
7 Starter screw 4-6 Nm
Technical information
Starter rope dimensions ø 3,5x2500 mm
5
6
4
7
8
9
10
4
