GGP WBE 0701 User Manual

Release 00 - 02/2008
Engine WBE 0701-WBE 0704
pag. 9
Service manual
3. TECHNICAL DATA AND SPECIFICATIONS
3.4. Expendable materials
Petrol
Unleaded (green)
minimum 90N.O.
Engine oil
- from 5 to 35 °C
- from -15 to +5 °C
- from -25 to + 35°C
SAE 30
5W30-10W30
Synthetic 5W30-10W30
Spark plug
RC12YC (Champion)
or equivalent
Starter rope ø 3,5x2500 mm
3.5. Use limits
The following table gives the use limits of certain
components subject to wear, after which the com-
ponent must be replaced.
Compression when new 8,0:1 (01)/8,0:1 Min. 4 bar
Minimum inlet valve stem diameter 5,32 mm
Minimum exhaust valve stem diameter 5,27 mm
Minimum inlet valve head rim thickness 0,5 mm
Minimum exhaust valve head rim thi-
ckness
0,5 mm
Valve seat depth 1,8 mm
Minimum valve spring length 28,5 mm
Maximum gap between ends of cylin-
der rings
1 mm
Max. axial gap for compression rings 0,15 mm
Minimum gudgeon pin diameter
12,95 mm
Max. gudgeon pin-piston seat diame-
ter
13,05 mm
Max. connec-
ting rod diame-
ter
gudgeon pin side 13,07 mm
crank side 26,07 mm

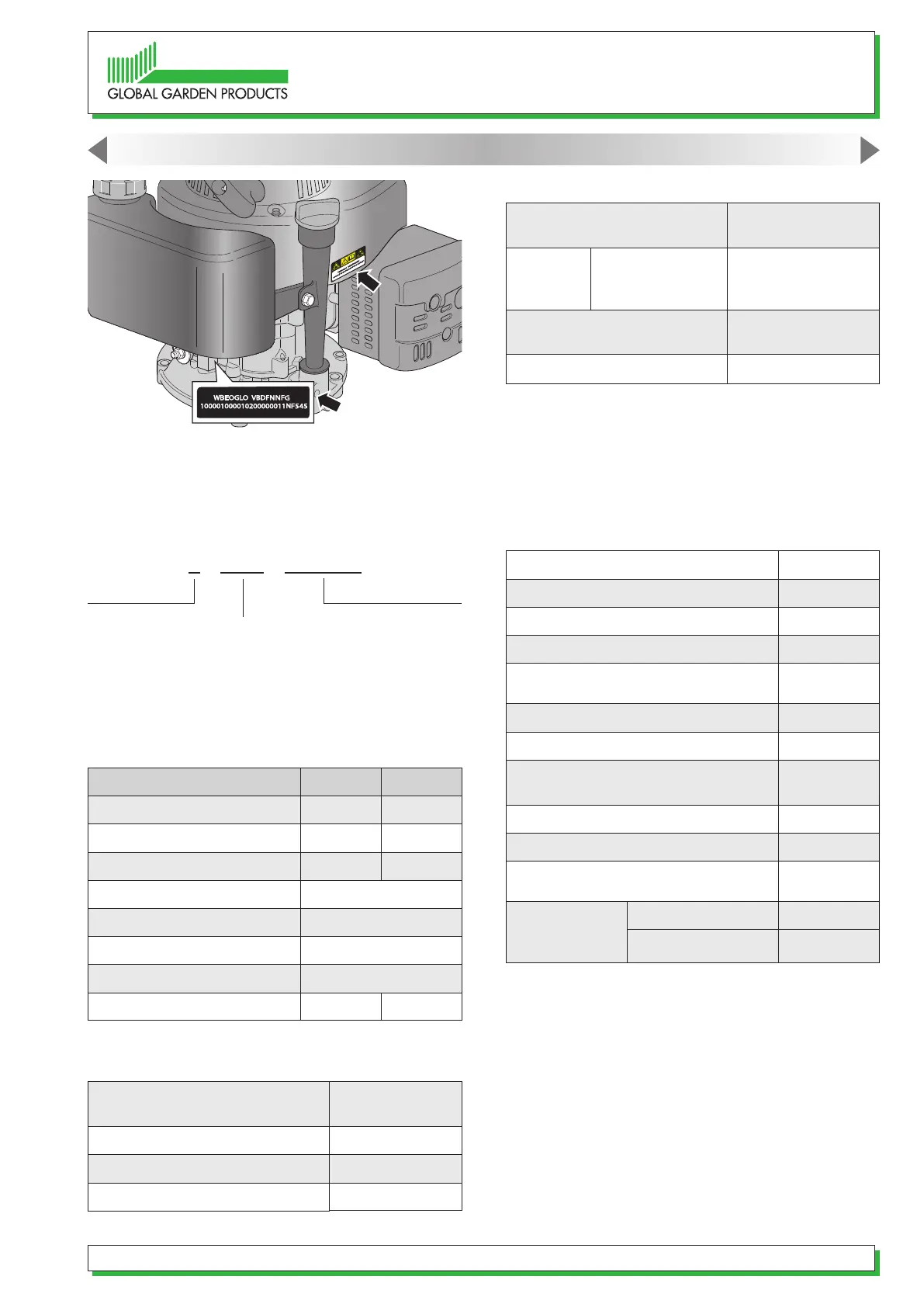

3.1. Identication
Every motor is marked with a serial number on the
base and applied on the canopy; this serial number
is composed with 9 numeric characters and can
identify:
• - • • • - • • • • •
The serial number must be reported on every ope-
rating sheet in the warranty application and is fun-
damental for identifying and ordering spare parts.
3.2. Technical data
WBE 0701 WBE 0704
Displacement 160 cc 200 cc
Bore 65 mm 70 mm
Stroke 48 mm 51 mm
Minimumspeed(SLOW)
1800 (±150) r.p.m.
Maximumspeed(FAST)
2900 (±100) r.p.m.
Fuel tank capacity 1,0 litres
Oil sump capacity 0,55 litres
Dry weight 11,75 kg 12,80 kg
3.3. Adjustments
Distance between spark plug
electrodes
0,6 - 0,8 mm
Coil air gap 0,25 - 0,40 mm
Inlet valve clearance 0,10 - 0,15 mm
Exhaust valve clearance 0,15 - 0,20 mm
Year of
manufacture
Daily progressive
number
Date
