Release 00 - 02/2008
Engine WBE 0701-WBE 0704
pag. 31
Service manual

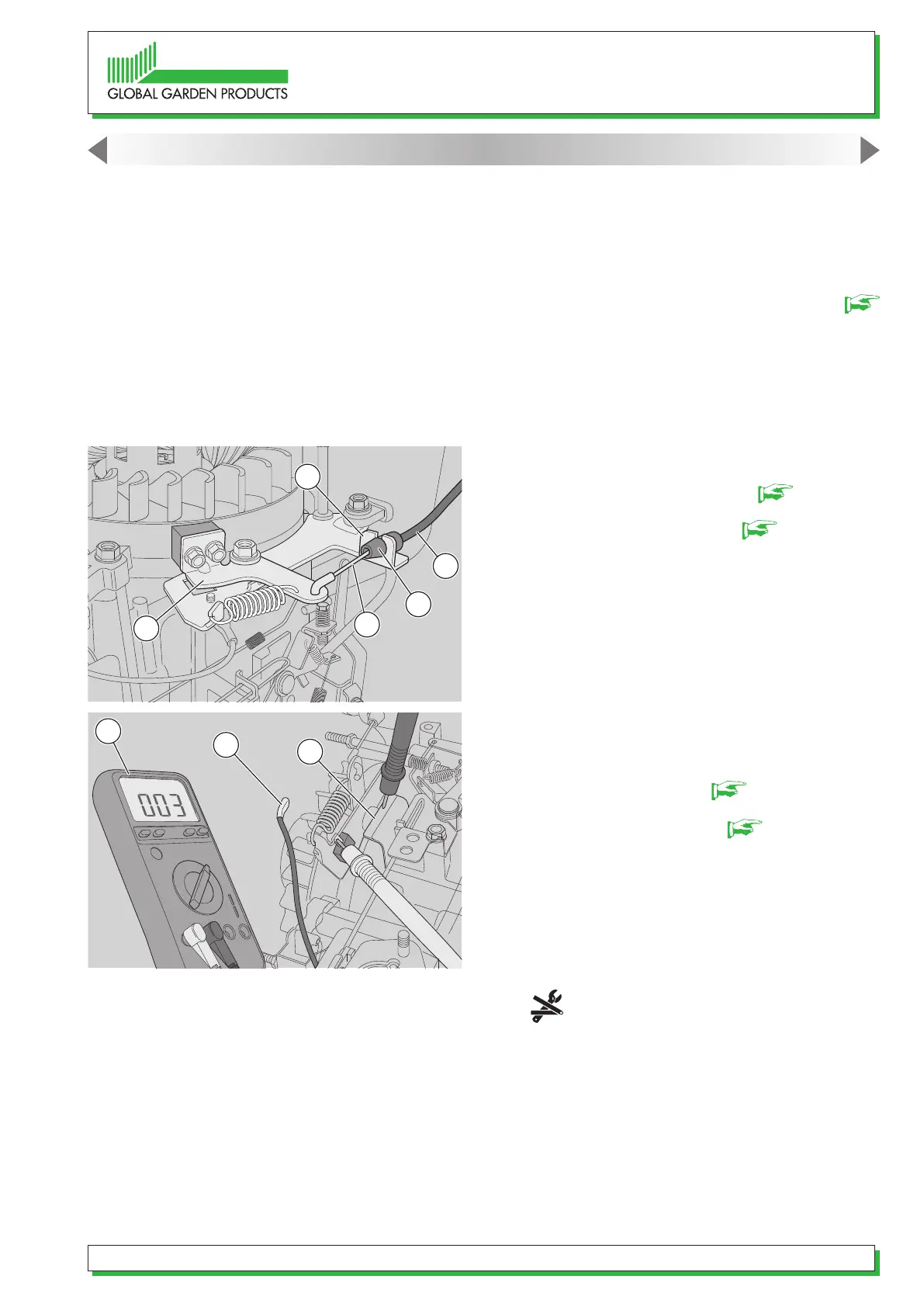

11. TURNING OFF AND STOPPING THE ENGINE
11.1. Checking the control cable
1 - Remove the starter assembly [ 6.1].
2 - Remove the lter assembly [ 7.1].
3 - Check that the sheath (1) is not bent, that the
wire (2) is securely connected to both the lawn-
mower lever and the lever (3) on the engine and
that the terminal (4) is correctly fastened to the
support (5).
4 - Check that the wire (2) runs freely inside the
sheath (1) when you move the lever.
5 - Check that the end of the wire (2) is slightly loose
when you release the lawnmower lever.
6 - Ret the lter assembly [ 7.1].
7 - Ret the starter assembly [ 6.1].
11.2. Checking the ignition off microswitch
1 - Disconnect the faston (6) from the micro-
switch.
2 - Using an Ohmmeter tester (7) make con-
tact with the prods on terminals “1-COM” of the
microswitch (8) and engine earth connection;
The instrument should read:
- ∞ = microswitch pressed (lever pulled);
- 0 = microswitch free (lever released);
Otherwise, replace the system for turning off and
stopping the engine.
General information
The engine is turned off and stopped by releasing a lever on the lawnmower. The cable acts on a lever
which simultaneously activates a microswitch that sends the coil to earth as well as a brake which acts
on the ywheel.
The brake must be able to stop the engine within 3 seconds after it is turned off.
To solve problems in the system for turning off and stopping the engine, see the relevant chapter [
15].
To get access to the system for turning off and stopping the engine, remove the starter assembly and the
fan.
1
2
3
4
5
6
8
7
