pag. 24
Release 00 - 02/2008
Engine WBE 0701-WBE 0704
Service manual

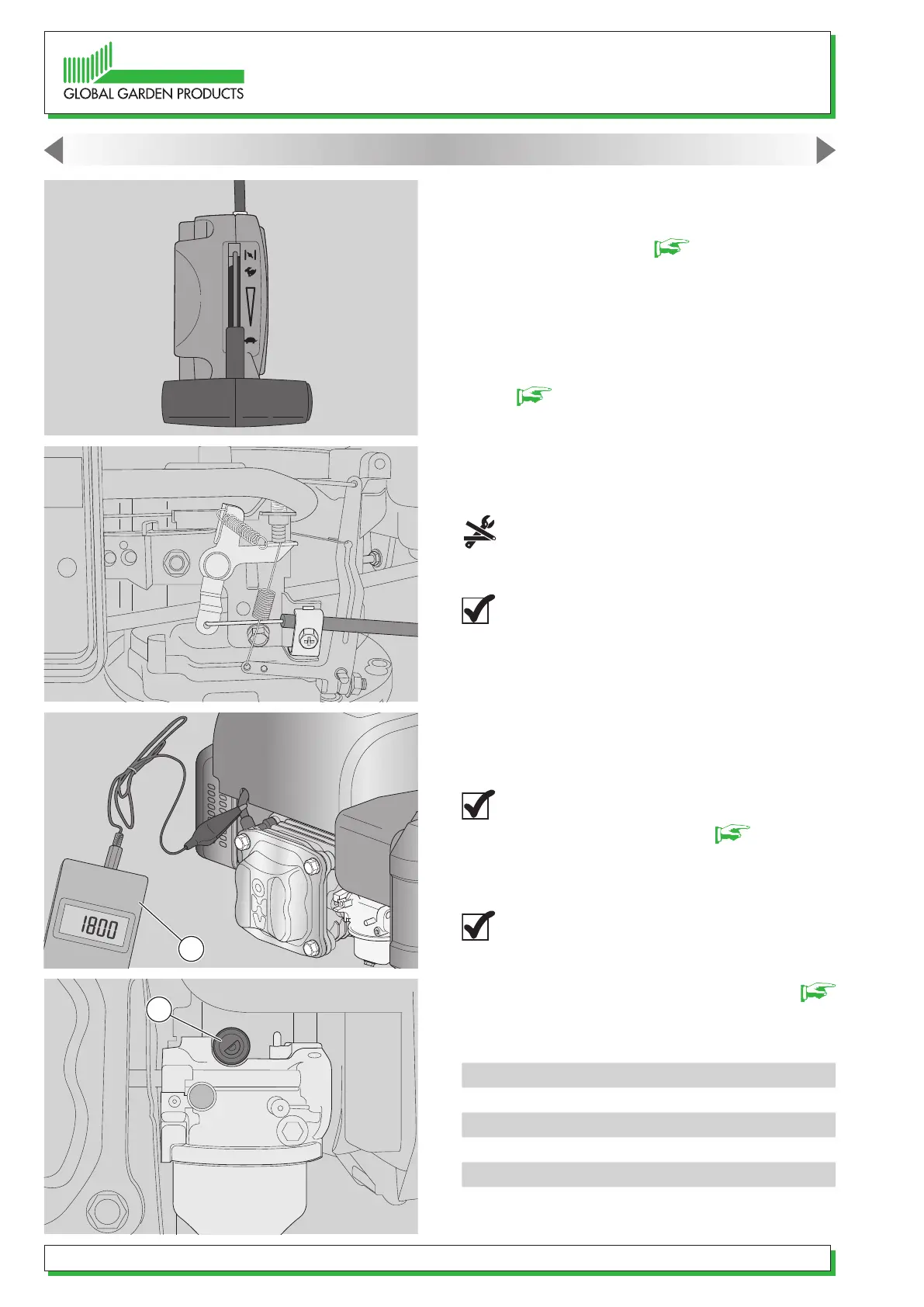

8.2. Replacing the carburettor
1 - Perform operations 1 - 2 - 3 - 4 - 5 - 6 - 12 - 13 - 14
- 15 indicated in section [ 8.1] above.
8.3. Adjusting minimum speed
1 - Check that the throttle cable is adjusted cor-
rectly [ 9.1].
2 - Let the engine heat up for a few minutes, then
set the throttle control to “SLOW”.
Check the rotation speed on the speed indi-
cator (23).
NOTE: The engine’s minimum speed must be
between 1800 (±150) rpm.
3 - Turn the screw (24) until you achieve a stable
minimum speed within the above values.
8.4. Adjusting maximum speed
NOTE: This operation is carried out by adju-
sting the governor system [ 9.2].
8.5. Adjusting the carburation
NOTE: The carburation is set in the factory
and does not normally need changing. In
the event of irregular functioning, clean the
carburettor as indicated in section [
8.1].
Tightening torques
6 Carburettor nuts/lter 8-12 Nm
Technical information
Minimum speed (SLOW) 1800 (±150) r.p.m.
Special equipment
24 Speed indicator
8. CARBURATION
23
24
