pag. 30
Release 00 - 02/2008
Engine WBE 0701-WBE 0704
Service manual
7 - Perform a spark test as indicated in [
10.1].
- If the spark jumps: the coil functions properly and
in the event of malfunction, verify that the cut-off
cable (13) is not earthed.
- if the spark does not jump: the coil is faulty and
must be replaced [ 10.3].
8 - Ret the starter assembly [ 6.1].

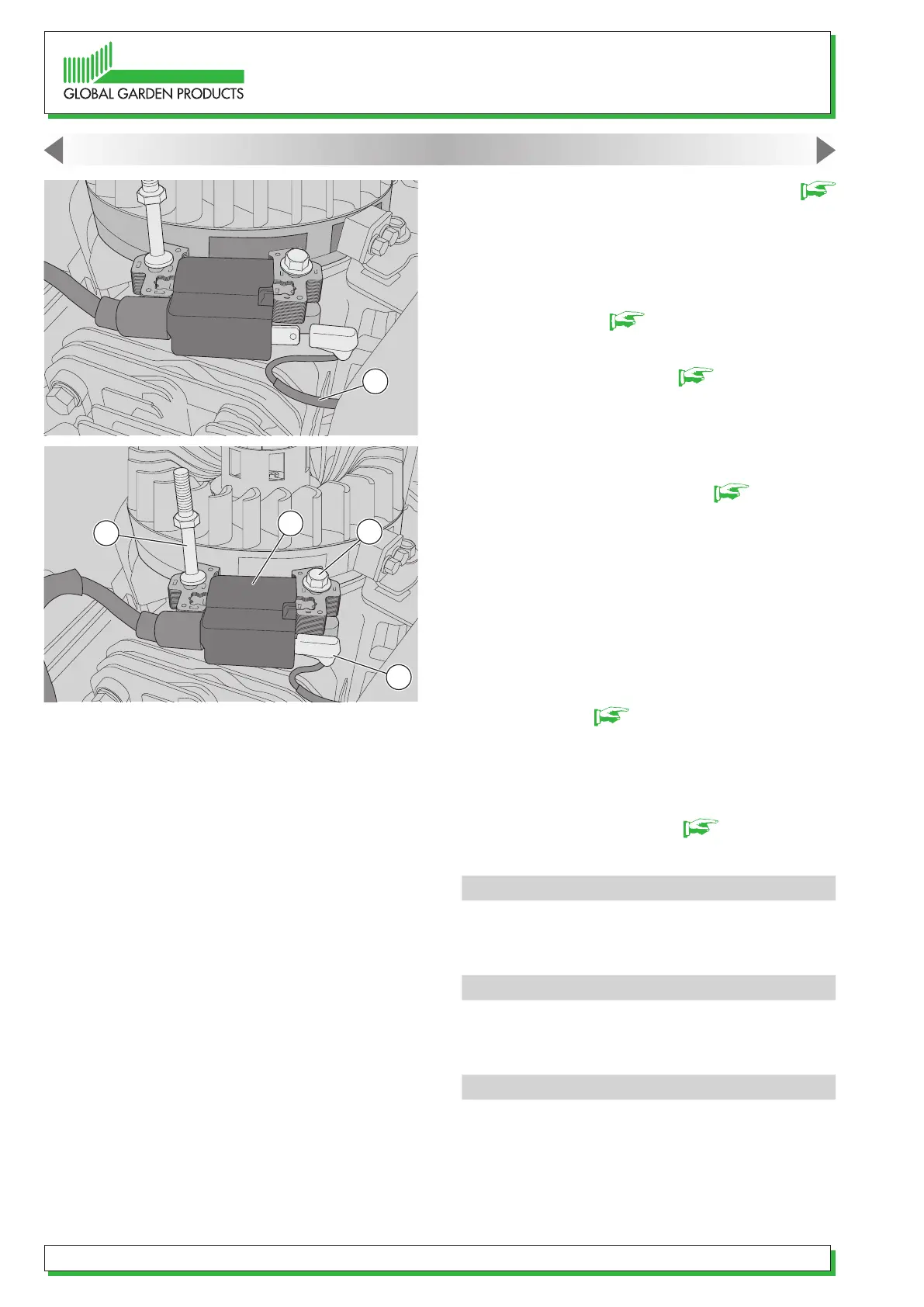

10.3. Replacing the coil
1 - Remove the starter assembly [ 6.1].
2 - Disconnect the faston of the earth cable (6).
3 - Undo the screw (9) and the stud (10) and remove
the coil (7).
4 - Mount the new coil and regulate the air gap
according to the procedure indicated in points 4
and 5 in section [ 10.2].
5 - Connect the faston of the earth cable (6).
8 - Ret the starter assembly [ 6.1].
Tightening torques
1 Spark plug tightening torque 16-18 Nm
9 Coil xing screw 8-10 Nm
10 Coil xing stud 8-10 Nm
Technical information
Type of spark plug
RC12YC (Champion) or equivalent
Distance between electrodes 0,6-0,8 mm
Air gap/ywheel 0,25-0,40 mm
Special equipment
3 Tester for spark test
10. IGNITION
10
6
7
13
9
