pag. 40
Release 00 - 02/2008
Engine WBE 0701-WBE 0704
Service manual
13. ENGINE BLOCK - External operations

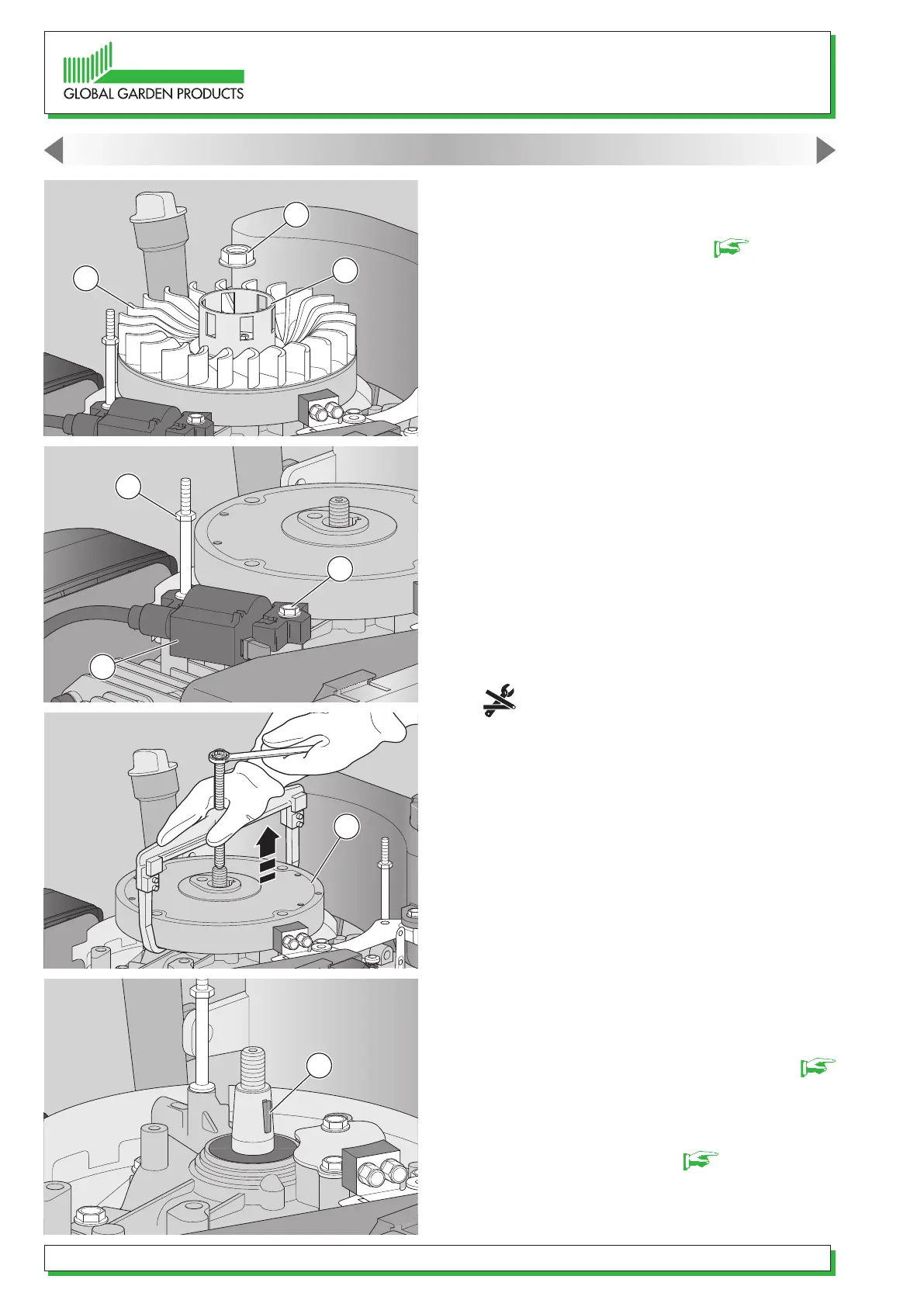

13.5. Dismantling and replacing the magneto
ywheel
1 - Remove the starter assembly [ 6.1].
2 - Using an airgun, undo the nut (24) and extract
the fan (25), setting aside the starter cup (26).
3 - Undo the screw (28) and the stud (29) and re-
move the electronic coil (27).
4 - Using a suitable extraction tool, remove the
ywheel (30) as indicated in the diagram.
Ensure that the engine shaft key is retained.
5 - When tting the ywheel check that the key (31)
is in good condition and replace it if it is deformed;
t the starter cup (26) and the fan. Close the nut to
the indicated couple (24) and utilize a gun.
6 - Ret the coil (27), tightening the screw (28) and
the stud (29) to the torque indicated.
7 - Readjust the airgap until it is correct [
10.2].
8 - Ret the starter assembly [ 6.1].
24
26
25
30
29
28
27
31
