pag. 22
Release 00 - 02/2008
Engine WBE 0701-WBE 0704
Service manual
8. CARBURATION

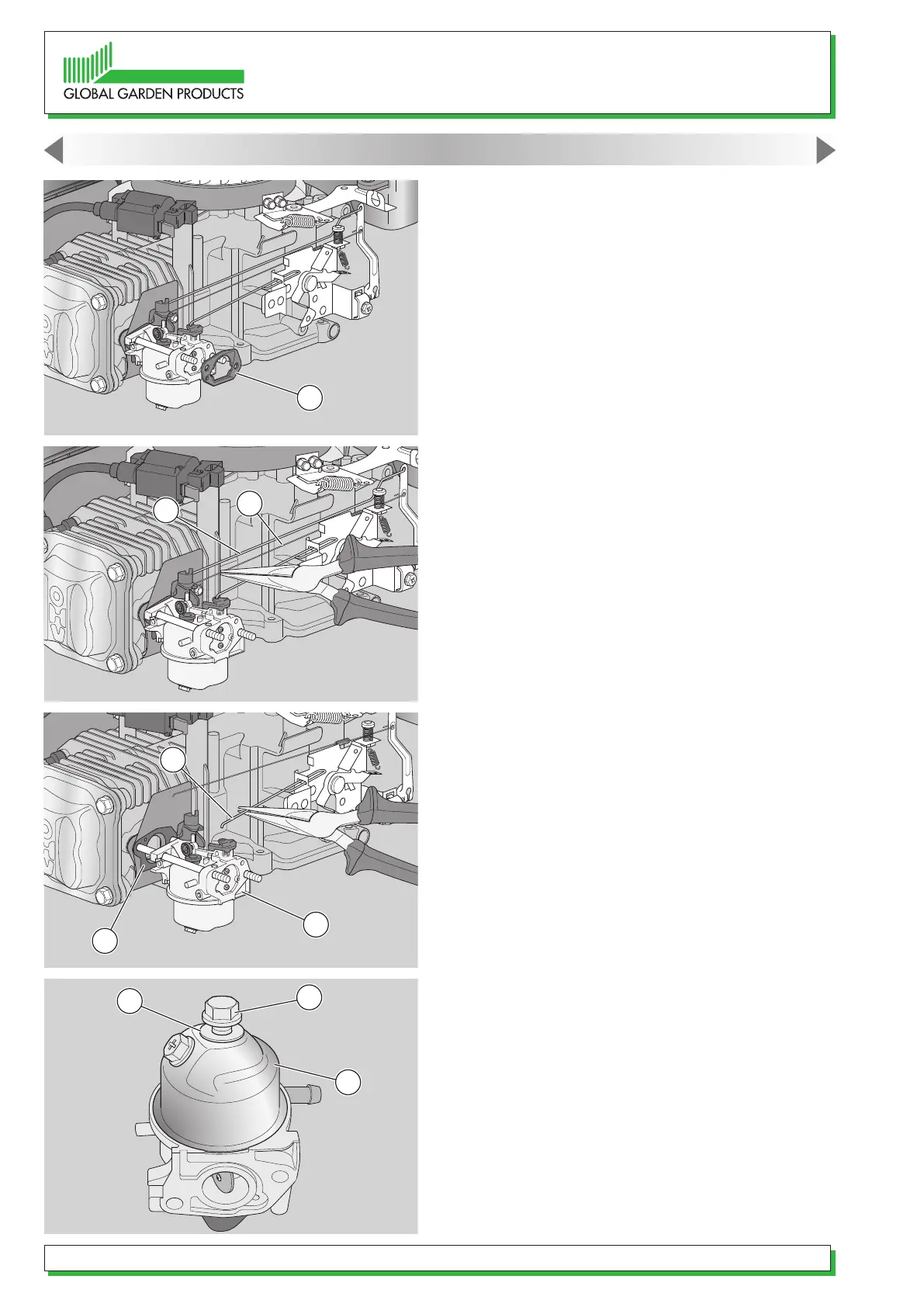

4 - Remove the gasket (7) and move the intake
buttery rod to the minimum position.
5 - Using pliers, disconnect the intake buttery rod
(8) and slide the small rod (9) for the relative com-
pensation spring upwards.
6 - Disconnect the wire (10) from the choke but-
tery lever, remove the carburettor (11) and the
gasket (12).
7 - Loosen the central screw (13) fastening the oat
chamber (14), remove the relative gasket (15)
and carefully collect all the petrol left in the oat
chamber.
13
14
15
10
8
7
9
12
11
