GGP WBE 0701 User Manual

Release 00 - 02/2008
Engine WBE 0701-WBE 0704
pag. 49
Service manual
14. ENGINE BLOCK - Overhauling internal parts

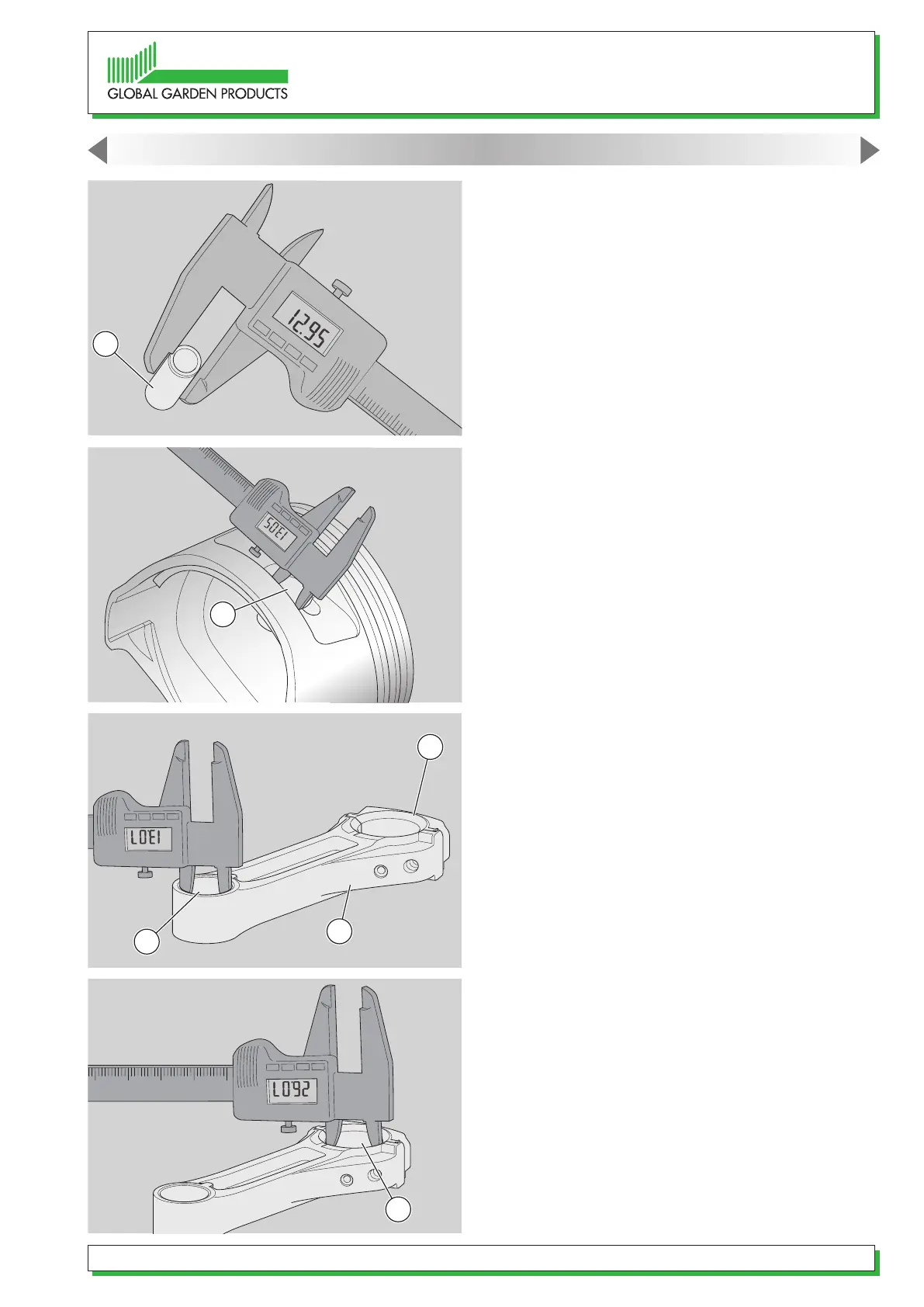

13 - Check the diameter of the gudgeon pin (34) in
several places and replace it if it is less than 12.95
mm, even at a single point.
14 - Check the diameters of the gudgeon pin hou-
sings (A) on the piston (27) and replace the piston
if they are more than 13.05 mm, even at a single
point.
15 - Fit the cap (24) to the connecting rod (25) and
check the diameter from the gudgeon pin side and
the crank side; replace the connecting rod if the
values are greater than:
B : 13,07 mm on the gudgeon pin side;
C : 26,07 mm on the crank side.
If the connecting engine shaft is outside measure-
ment tolerances or has small scratches or marks, it
is necessary to replace it.
34
A
B
C
25
24
