3.Operation
MACHINE COMPONENTS
FUNCTIONS
This Wheel Loader is designed for lifting and moving loads. Do not exceed the
maximum loads as shown in chapter ‘Technical data’. Various functions are
powered by a diesel engine. All of these functions can be controlled by the driver
by means of a joystick, steering wheel, pedals, and various buttons. These
functions are:
• Forward and reverse drive.
• Articulated steering.
• Lifting and lowering.
• Tilting of the tool carrier.

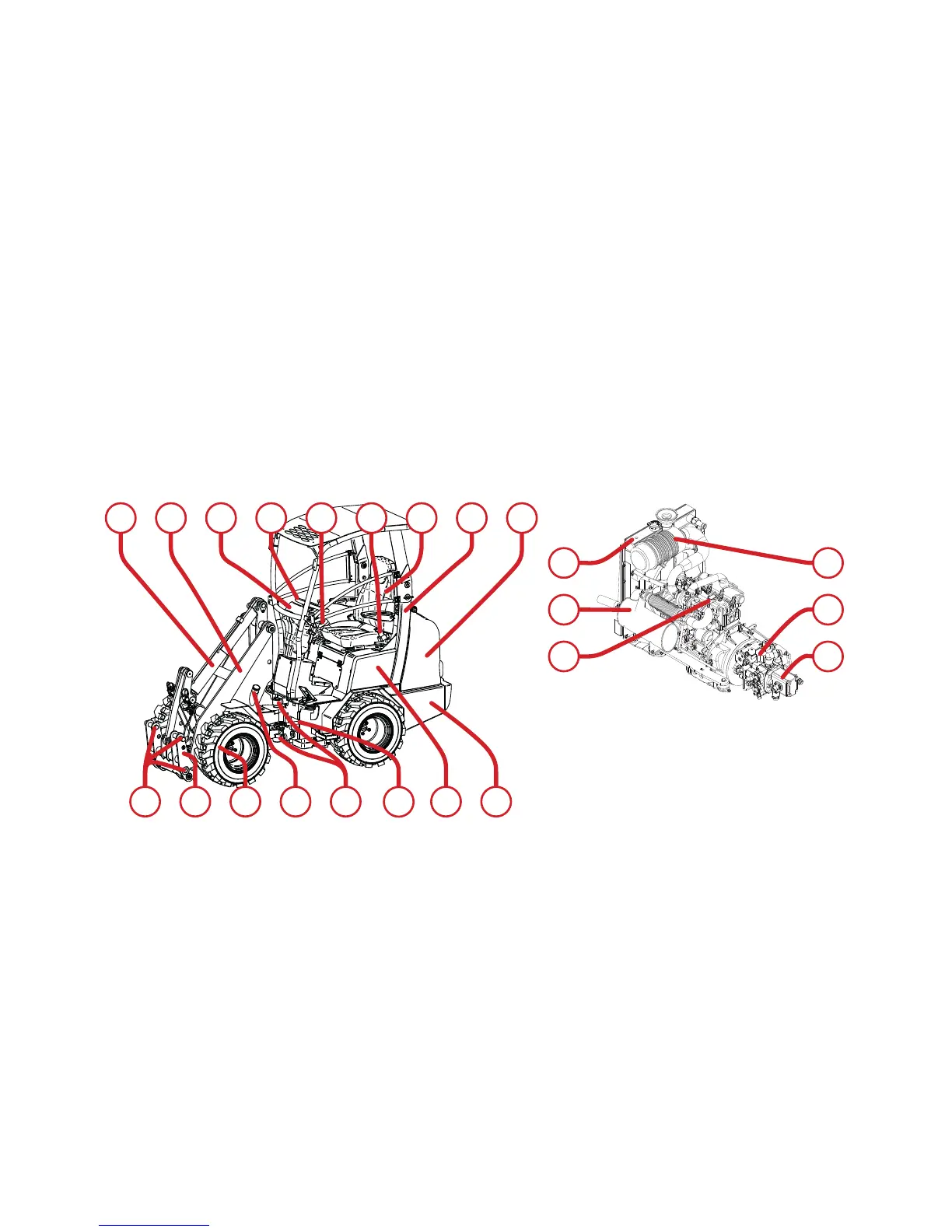

1. Tilt cylinder
2. Lifting arm
3. Dashboard
4. Steering wheel
5. Joystick control
6. Seatbelt buckle
7. Driver’s seat
8. Safety roof
9. Engine cover
10. Coupling pins
11. Attachment bracket
12. Wheel
13. Fuel tank filler cap
14. Articulation point
15. Steering cylinder
16. Battery
17. Hydraulic oil tank
18. Cooler
19. Engine exhaust
20. Diesel engine
21. Air filter
22. Drive pump
23. Work pump
