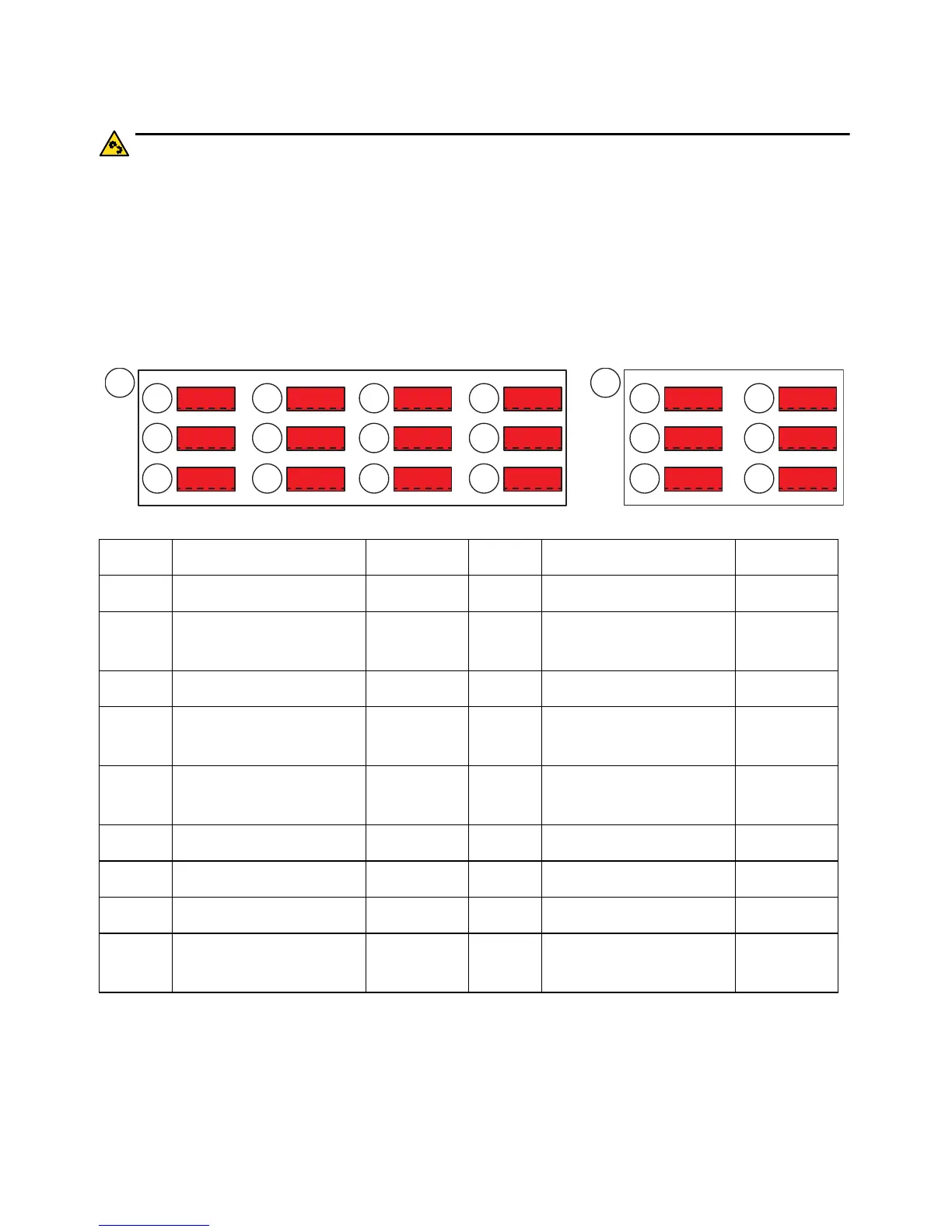

Giant D332SWT User Manual

85
6.Commissioning
FUSES
CAUTION:
Danger! Fire hazard! Never replace a fuse wire with one of a higher
rating. This can cause a fire!
The Wheel Loader contains the following fuses, which are located at various
locations:
A. Fuses in steering column
B. Fuses on dashboard
Fuse Function Value (A) Fuse Function Value (A)
1 Ignition switch 15A 10 Direction indicators 10A
2 Dashboard
instruments
3A 11 Work light 15A
3 Rotation beacon 7.5A 12 Automotive lighting 7,5A
4 Reset, Fourth func-
tion, Differential lock
7.5A 13 Front position lamp 7,5A
5 Brake light, Parking
brake
10A 14 Front position lamp 7,5A
6 Joystick 10A 15 High beam 10A
7 Fuel feed pump 10A 16 High beam 10A
8 Stop solenoid 10A 17 Low beam 10A
9 Reversing alarm,
Horn
10A 18 Low beam 10A
AB
15A
10A
10A
3A
10A
10A
7,5A
10A
15A
7,5A
10A
7,5A
7,5A
10A
10A
7,5A
10A
10A
1
5
9
2
6
10
3
7
11
4
8
12
13
15
17
14
16
18
