The pump may become hot during towing!
Preparations

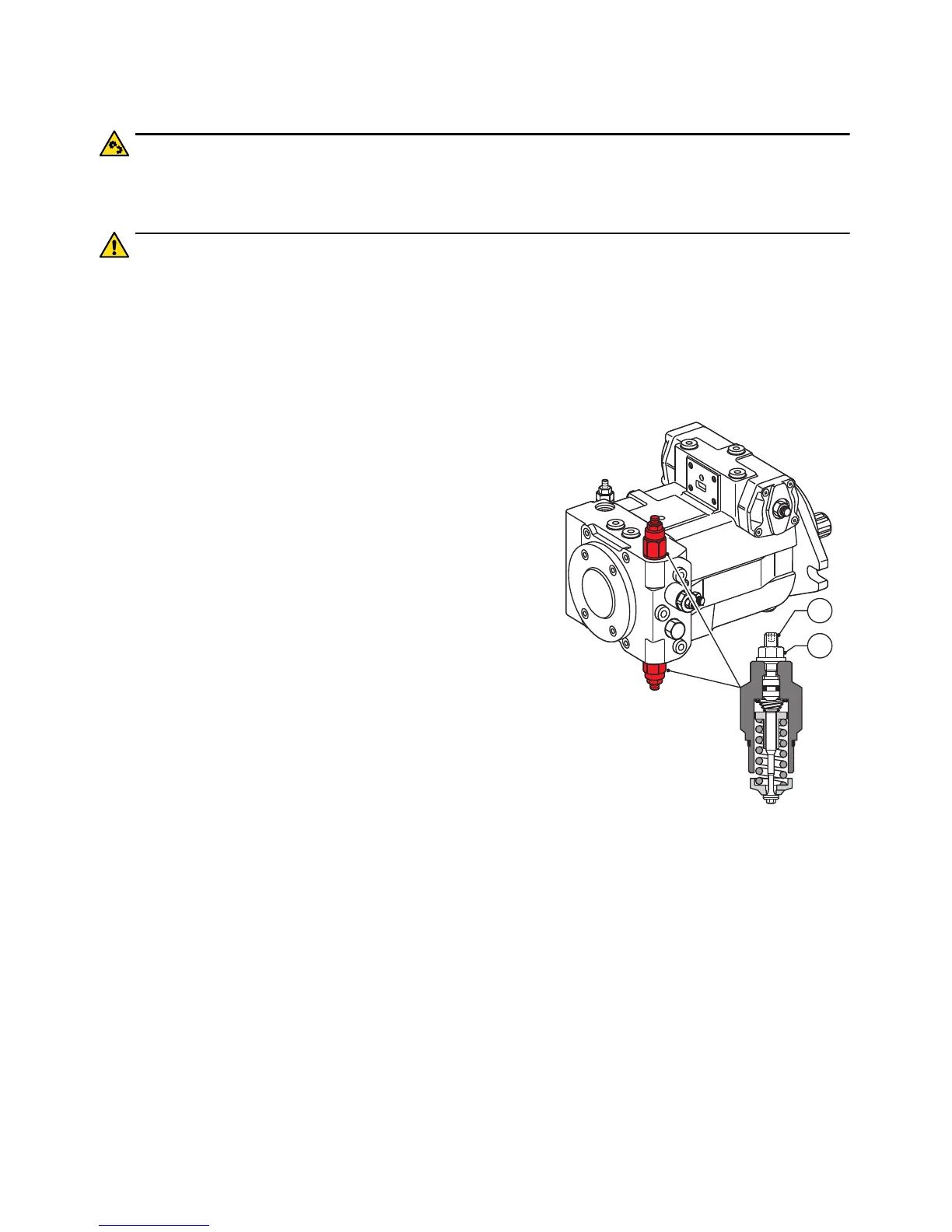

Before towing you need to open the bypass of main drive pump:
1. Turn off the engine.
2. Open the engine cover.
3. Fold the seat forward.
4. Turn nut (1) loose, making a half turn coun-
ter clockwise.
5. Loosen the hex bolt (2) clockwise until the
bolt touches the spring plate (this is the case
if you feel resistance).
6. Now turn the hex bolt (2) another half a turn
in. The spring is now pressed and the
bypass is activated.
7. Turn the nut (1) clockwise to secure with a
force of 22 Nm (16 lbf.ft) “hand tight”.
How to tow
• Mount the towing cable to the trailer cou-
pling (back of machine) or the towing eye-
lets (front or rear).
• Tow with a maximum speed of 3 km/h (2 mph) “walking speed”
• Tow the articulated loader until the danger zone has been left, max. 200 m
(max 656 ft)
• Turn the bolt of the bypass back to the old position.
