Giant D332SWT User Manual

79
6.Commissioning
JOYSTICK

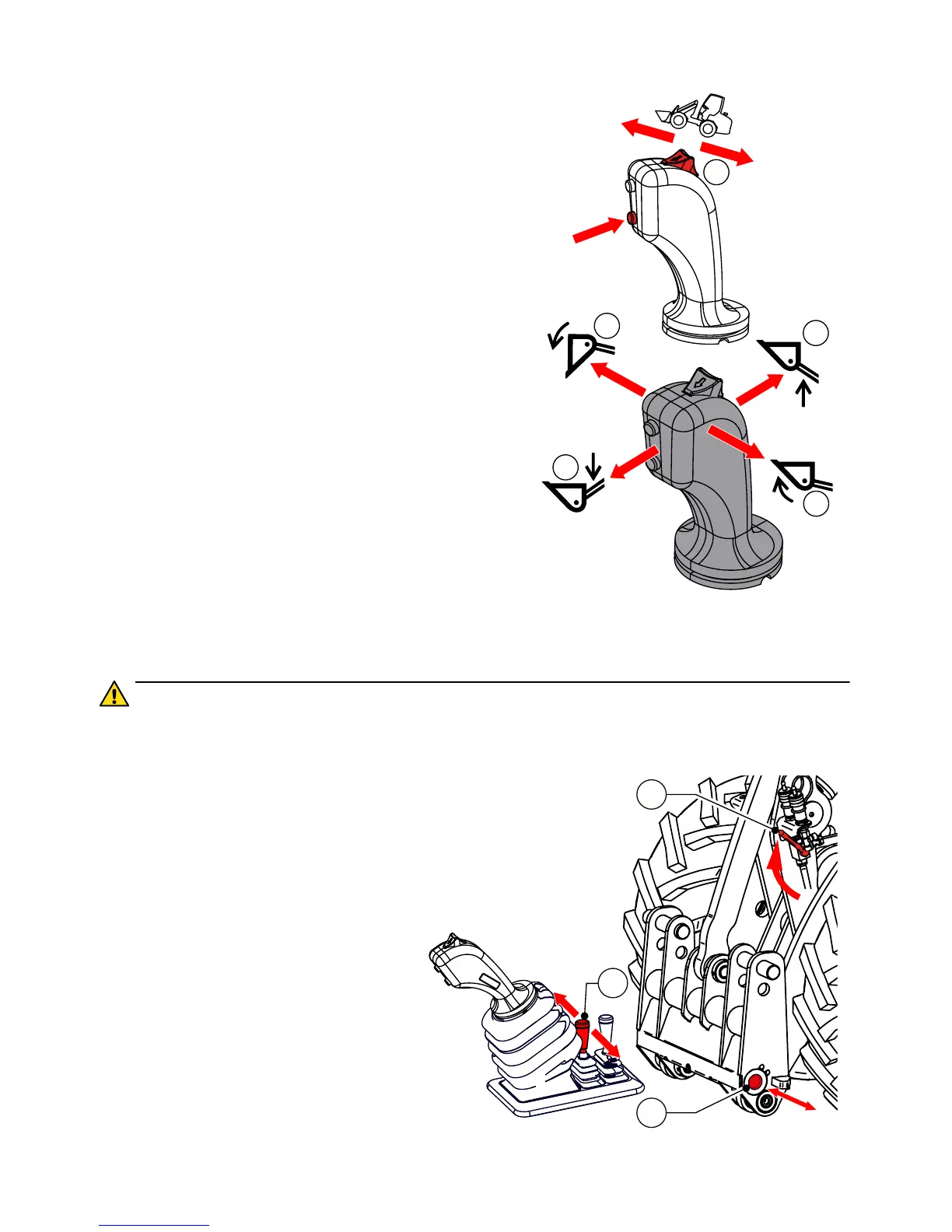

The joystick controls the following functions:
1. Tilt bucket upwards
2. Raise bucket
3. Tilt bucket downwards
4. Lower bucket
5. High / low gear (optional)
6. Forward (F) / neutral (N) / reverse (R)
7. Drive reset switch, 4th function electrical
(optional)
ATTACHMENT LOCKING
CAUTION:
Verify whether the attachment has been locked correctly.
mechanical lock
To (un)lock attachments; turn ball
valve (A) upwards.
• Locking: Move lever (B) to
the right to move the locking
pins (C) outward.
• Unlocking: Move the lever
(B) to the left to move the
locking pins (C) inward.
• Verify whether the attach-
ment has been locked cor-
rectly.
N
F
R
3
2
4
1
6
A
C
B
