6.Commissioning
DASHBOARD

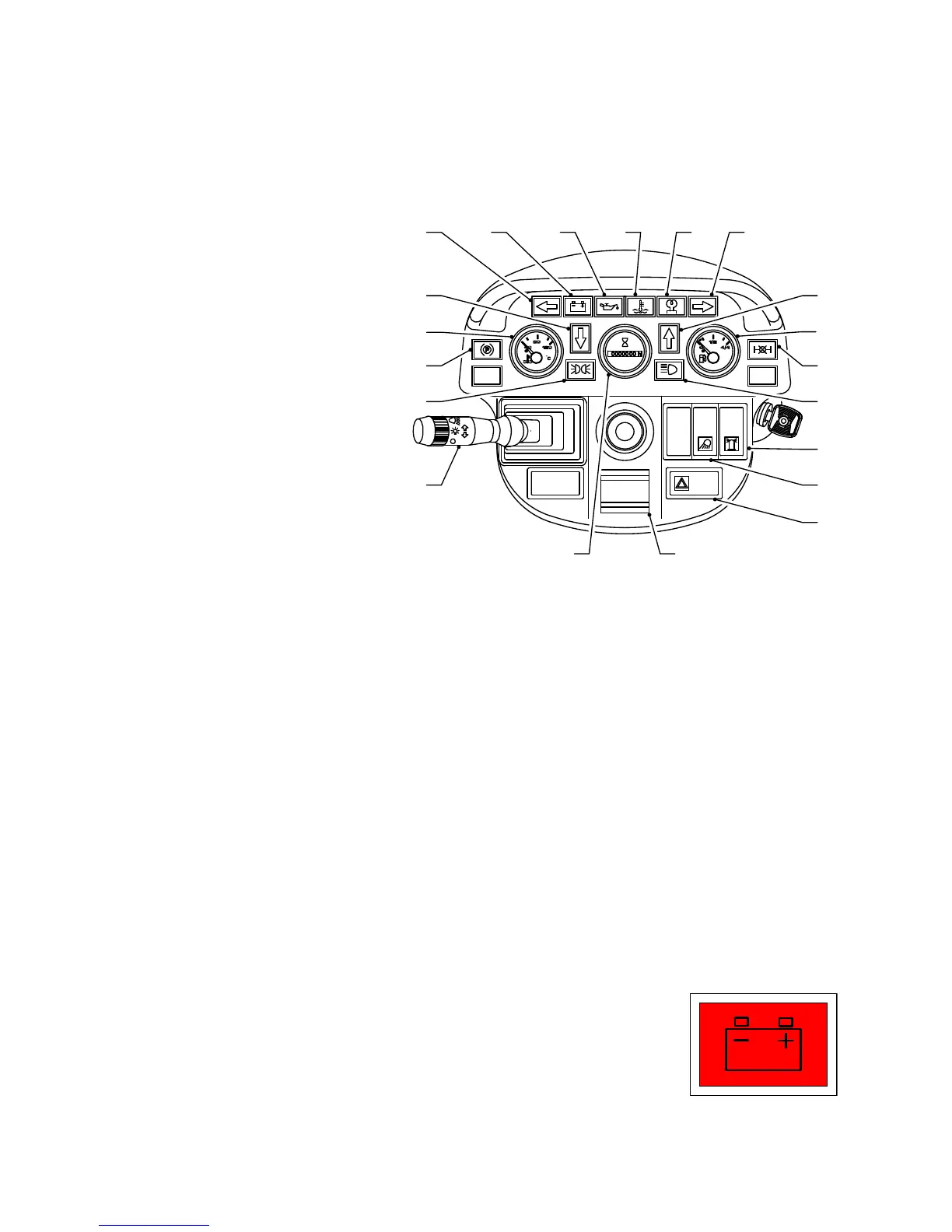

The following switches, instruments and warning lights are placed on the
dashboard:
1. Handbrake
2. Engine temperature
3. Direction indicator, left *
4. Alternator warning light
5. Reverse drive
6. Engine oil pressure
warning light
7. Engine temperature
warning light
8. Glow plug indicator
9. Direction indicator, right
10. Forward drive
11. Differential lock *
12. Rotating beacon switch *
13. Work light switch
14. Alarm light switch *
15. Lighting fuses
16. Fuel gauge
17. High beam *
18. Hour meter
19. Road lights *
20. Combination switch *
* optional
Once you turn on the ignition, all indicator lights will be lit. Once the engine is
running, the warning lights will go out.
ALTERNATOR WARNING LIGHT
When this warning light turns on, the alternator is
malfunctioning or the machine is not running!
Stop the engine and check the V-belt, if necessary contact
your GIANT dealer.
