6.Commissioning

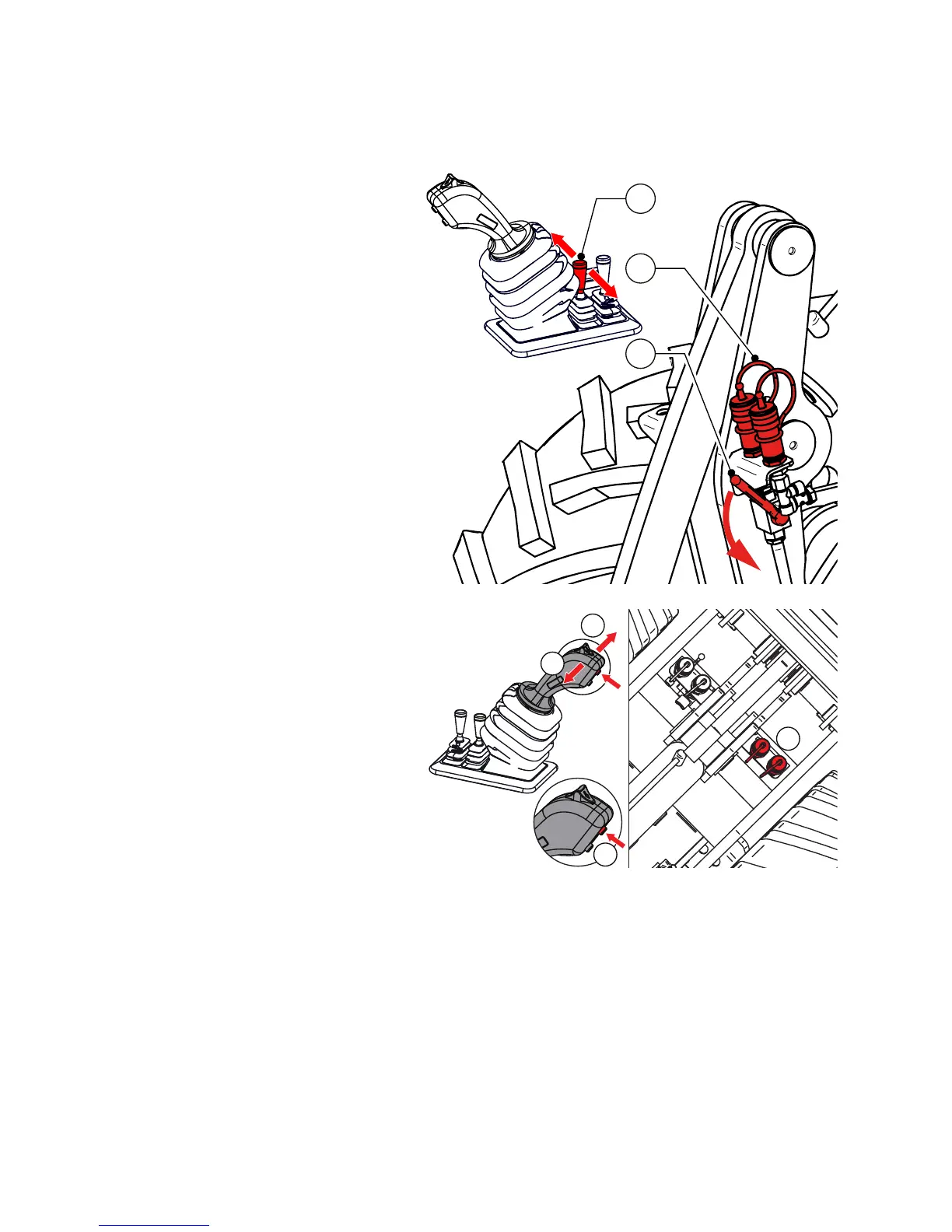

THIRD FUNCTION
To activate th
e 3rd function,
move ball valve (A) down.
Move the lever (B) to operate th
e
3rd function (C).
FOURTH FUNCTION
(ELECTRICAL)
(Optional)
•
Press the bu
tton (1) on the
joystick and move joystick
left (2)
or right (3) to o
perate
the 4th function (A).
B
C
A
A
2
1
3
80
82
