94
6.Commissioning
ARTICULA
TION LOCK BAR

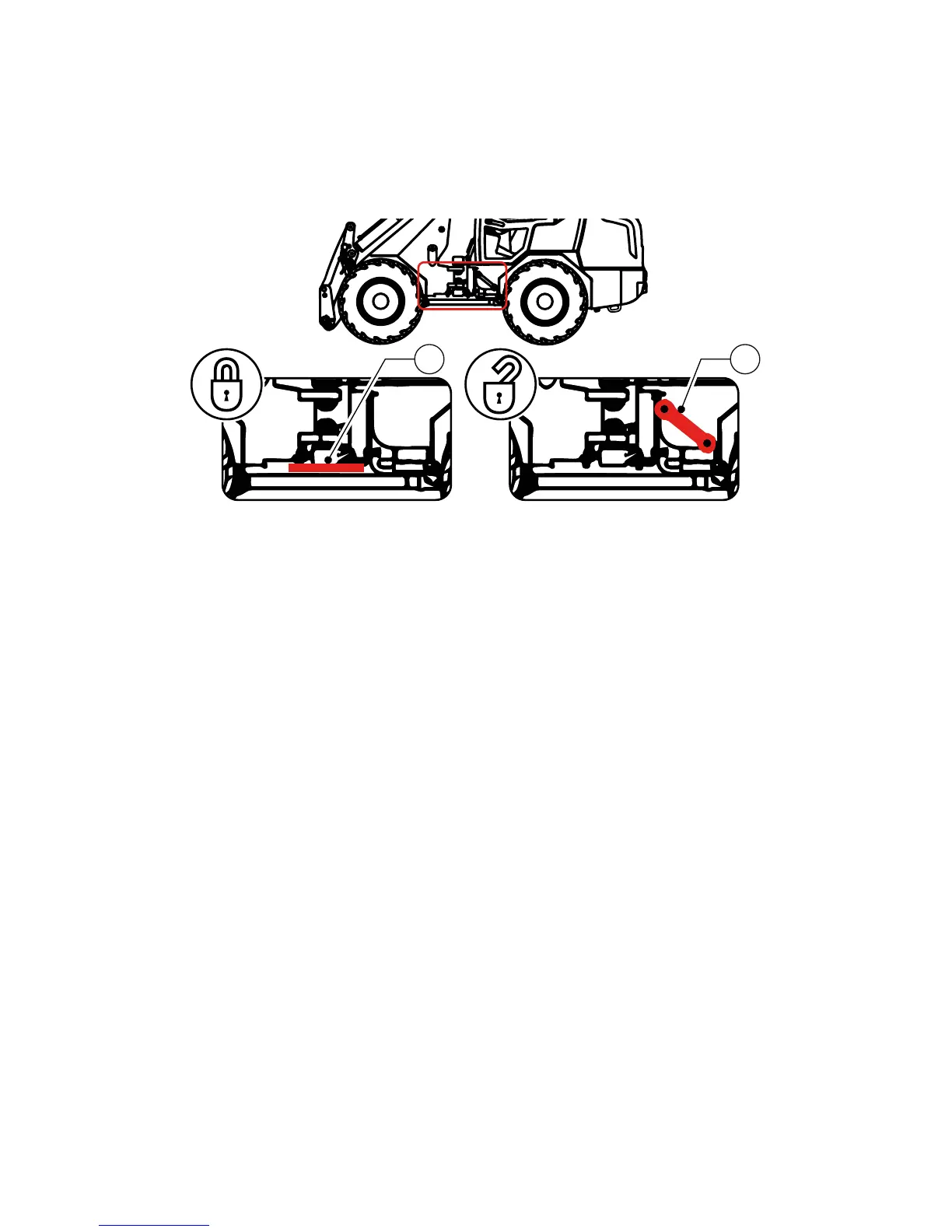

The articulation lock bar (A) must be mounted befor
e transporting the Wheel
Loader (i.e. on a conveyor).
This is also
applicable when
lifting the Wheel Loader.
Before commissioning the Wheel Loa
der you
must remove the articulation lock
bar and place it in the ap
propriate holder
.
A
A
93
95
