GREASE POINTS
CAUTION:
Grease all indicated grease points daily. Oil all other moving parts
regularly, such as pedals, handles and hinges according to the inten-
sity of use.

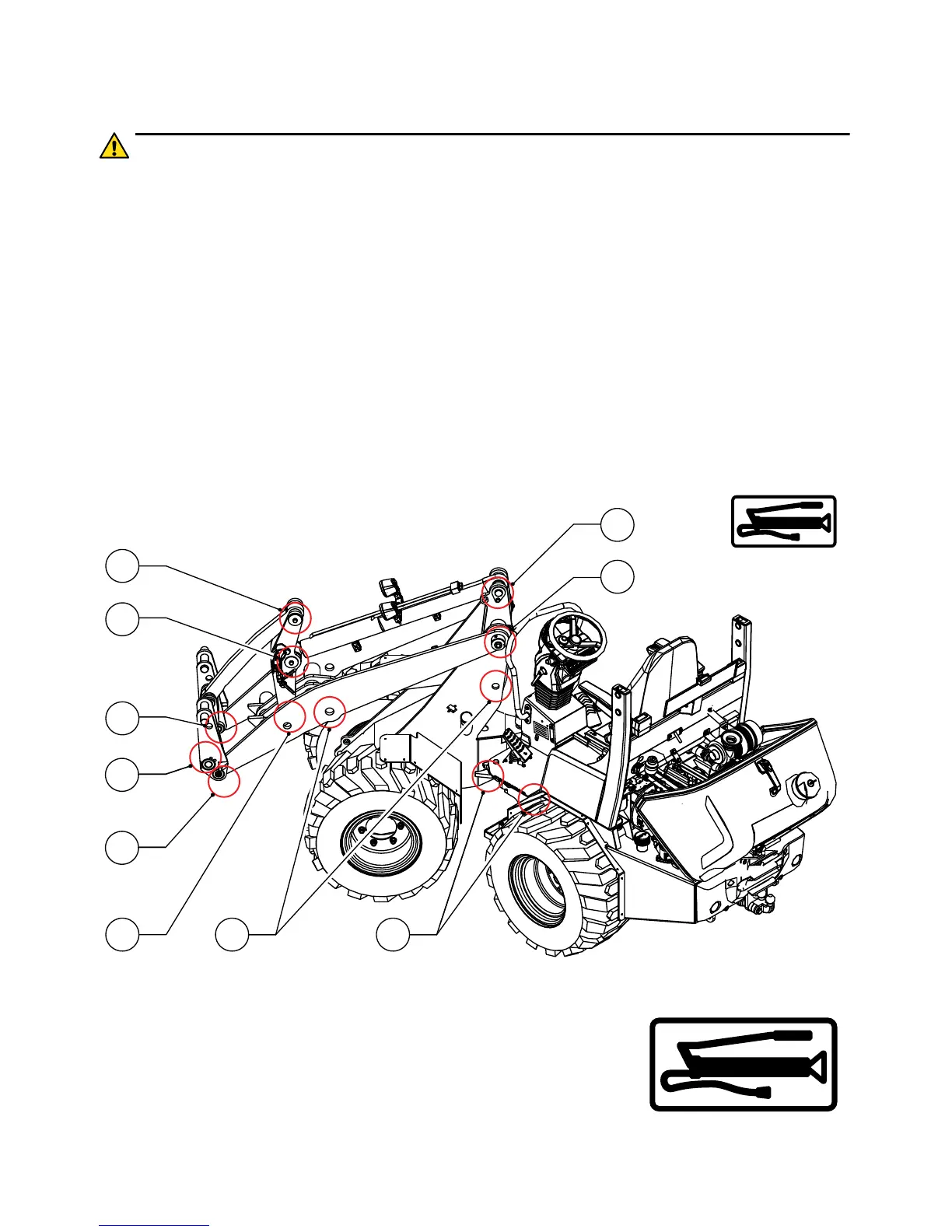

The Wheel Loader is to be lubricated DAILY at the following points:
1. Main pivot linkage
2. Boom cylinder
3. Boomerang
4. Locking pins
5. Tool bracket hinge
6. Lifting cylinder
7. Steering cylinder.
All lubrication points are indicated by a white decal with a
grease pump.
