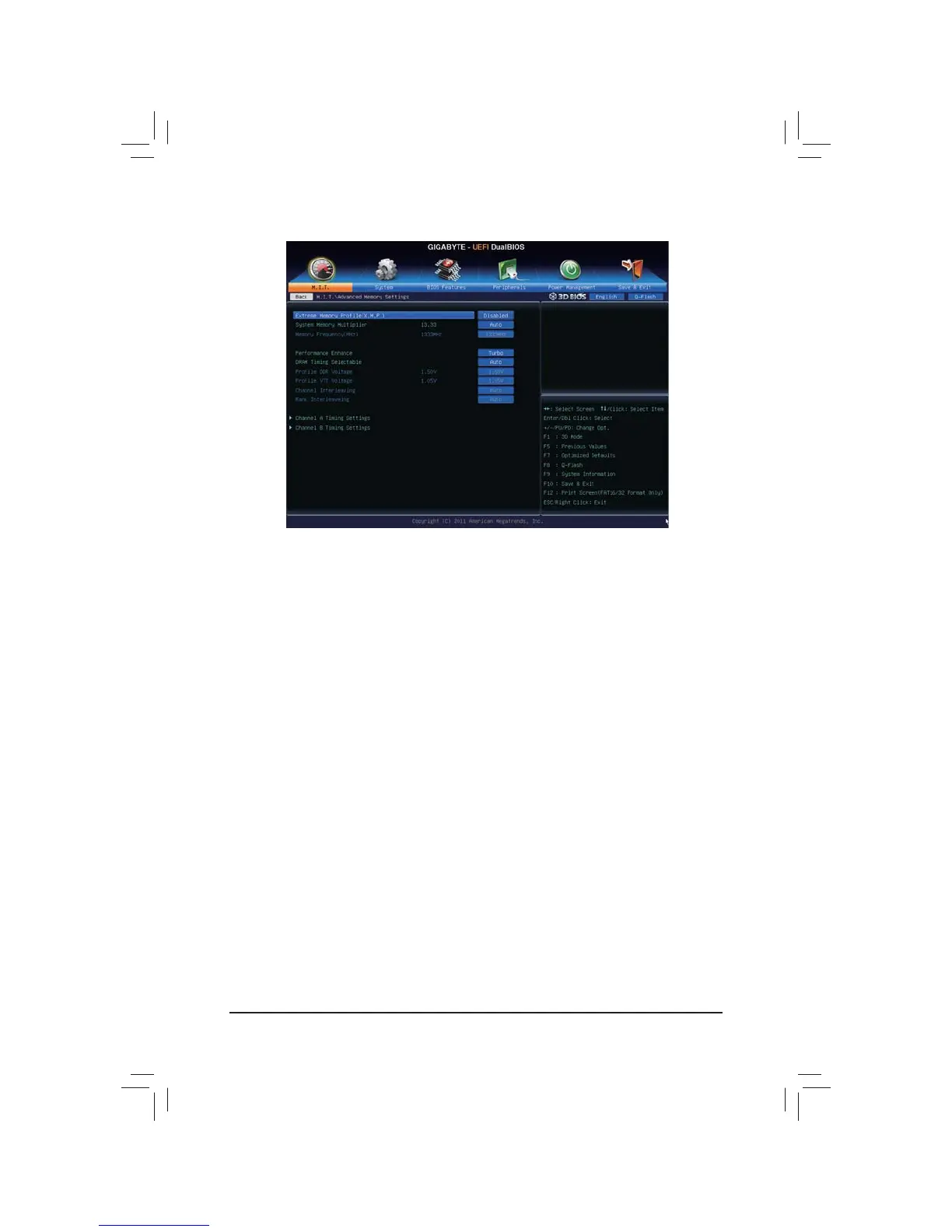

` Advanced Memory Settings
(Note) This item is present only when you install a CPU and a memory module that support this feature.
& ([WUHPH0HPRU\3URÀOH;03
(Note)
, System Memory Multiplier, Memory Frequency(MHz)
The settings above are synchronous to those under the same items on the Advanced Frequency Settings
menu.
& Performance Enhance
Allows the system to operate at three different performance levels.
Normal Lets the system operate at its basic performance level.
Turbo Lets the system operate at its good performance level. (Default)
Extreme Lets the system operate at its best performance level.
& DRAM Timing Selectable
Quick and Expert allows the Channel Interleaving, Rank Interleaving, and memory timing settings below
WREHFRQ¿JXUDEOH2SWLRQVDUH$XWRGHIDXOW4XLFN([SHUW
& 3URÀOH''59ROWDJH
When using a non-XMP memory module or ([WUHPH0HPRU\3URÀOH;03 is set to Disabled, this item
will display as 1.50V. When ([WUHPH0HPRU\3URÀOH;03 is set to 3URÀOH or 3URÀOH, this item will
display the value based on the SPD data on the XMP memory.
& 3URÀOH9779ROWDJH
The value displayed here is dependent on the CPU being used.
& Channel Interleaving
Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access
different channels of the memory to increase memory performance and stability. Auto lets the BIOS
DXWRPDWLFDOO\FRQ¿JXUHWKLVVHWWLQJ'HIDXOW$XWR
& Rank Interleaving
Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different
ranks of the memory to increase memory performance and stability. Auto lets the BIOS automatically
FRQ¿JXUHWKLVVHWWLQJ'HIDXOW$XWR

Gigabyte GA-Z77N-WIFI Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
S/PDIF out connector	Yes
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Compatible operating systems	Windows 8/7/XP
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	-
Bundled software	Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI

Weight and Dimensions

Width	170 mm
