BIOS Setup
- 100 -
2-3-10-2

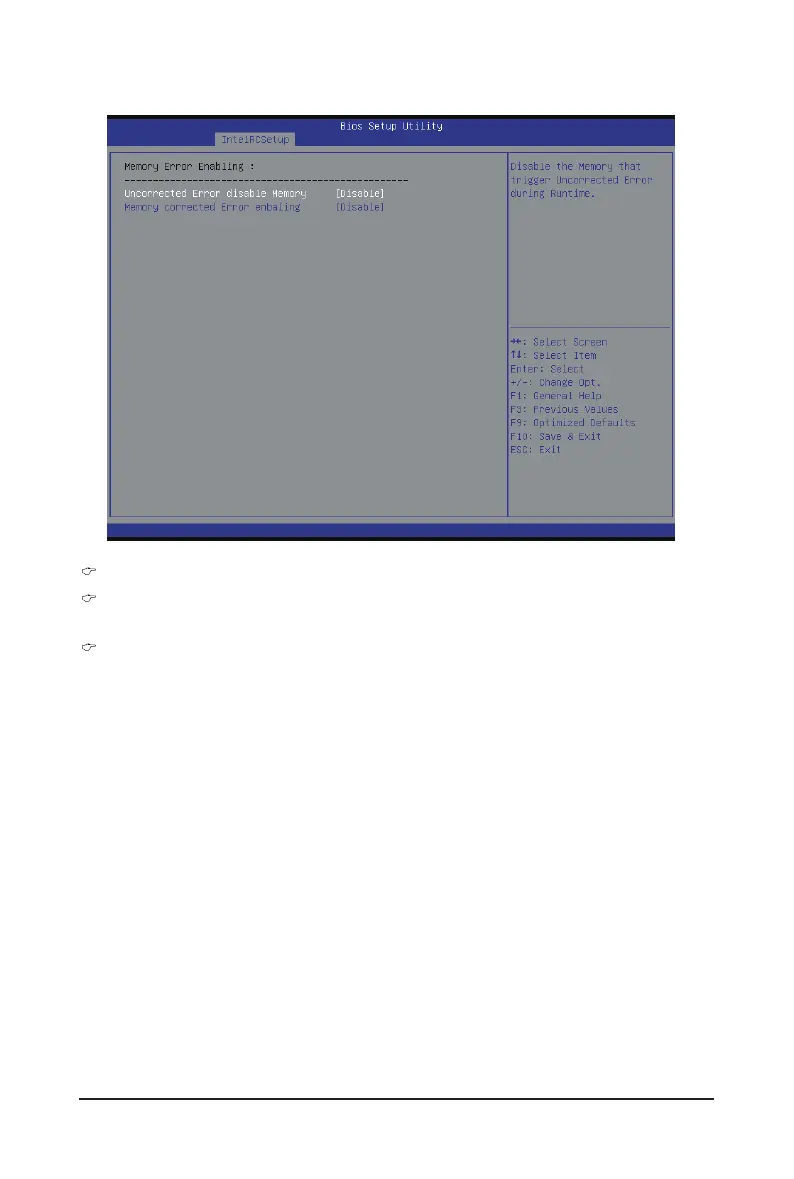

Memory Error Enabling
Memory Error Enabling
Un-Correctable Errors disable Memory
Options available: Enabled/Disabled. Default setting is
Disabled
.
Memory corrected Errors enabling
Options available: Enabled/Disabled. Default setting is
Disabled
.
99
101
