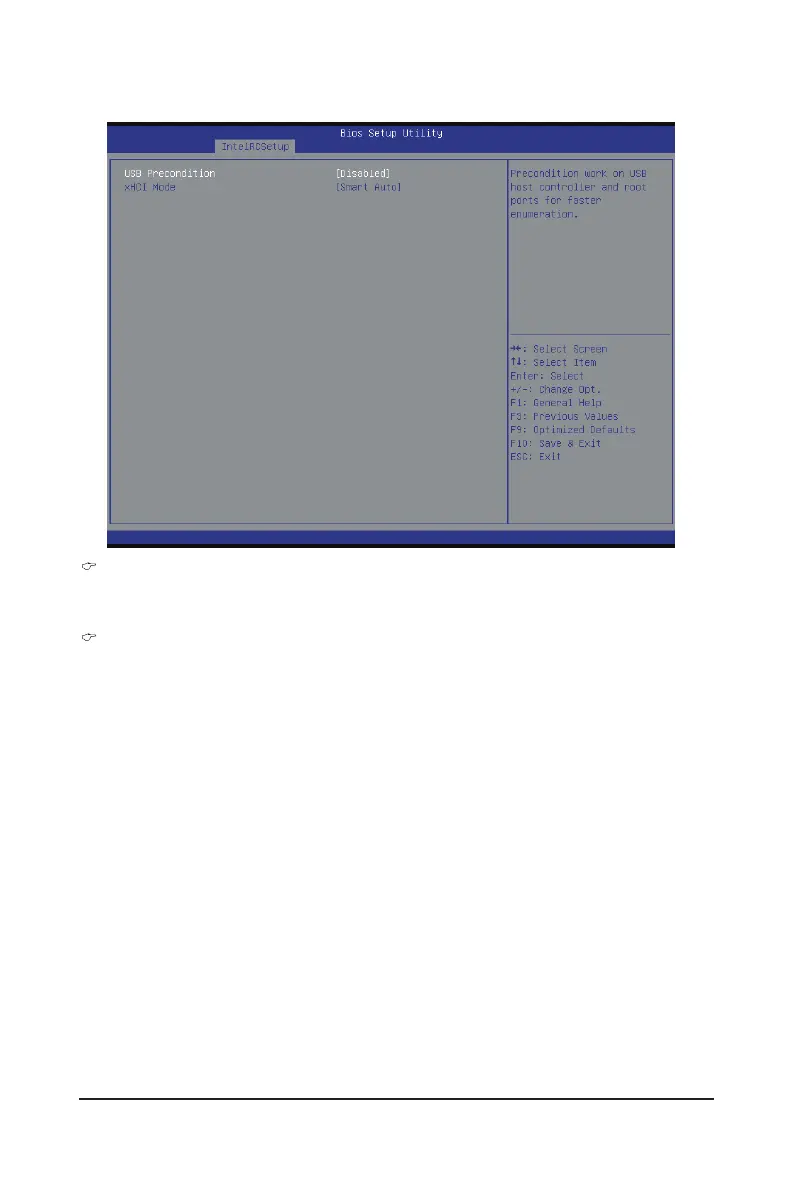

- 95 -
BIOS Setup
2-3-7-4
USB Conguration
USB Precondition
Precondition work on USB host conteoller and root ports for faster enumeration.
Options available: Enabled/Disabled. Default setting is
Disabled
.
xHCI Mode
Enable/Disable xHCI (USB 3.0) support function.
Options available: Smart
Auto/Enabled/Disabled. Default setting is
Smart Auto
.
