- 19 - Hardware Installation

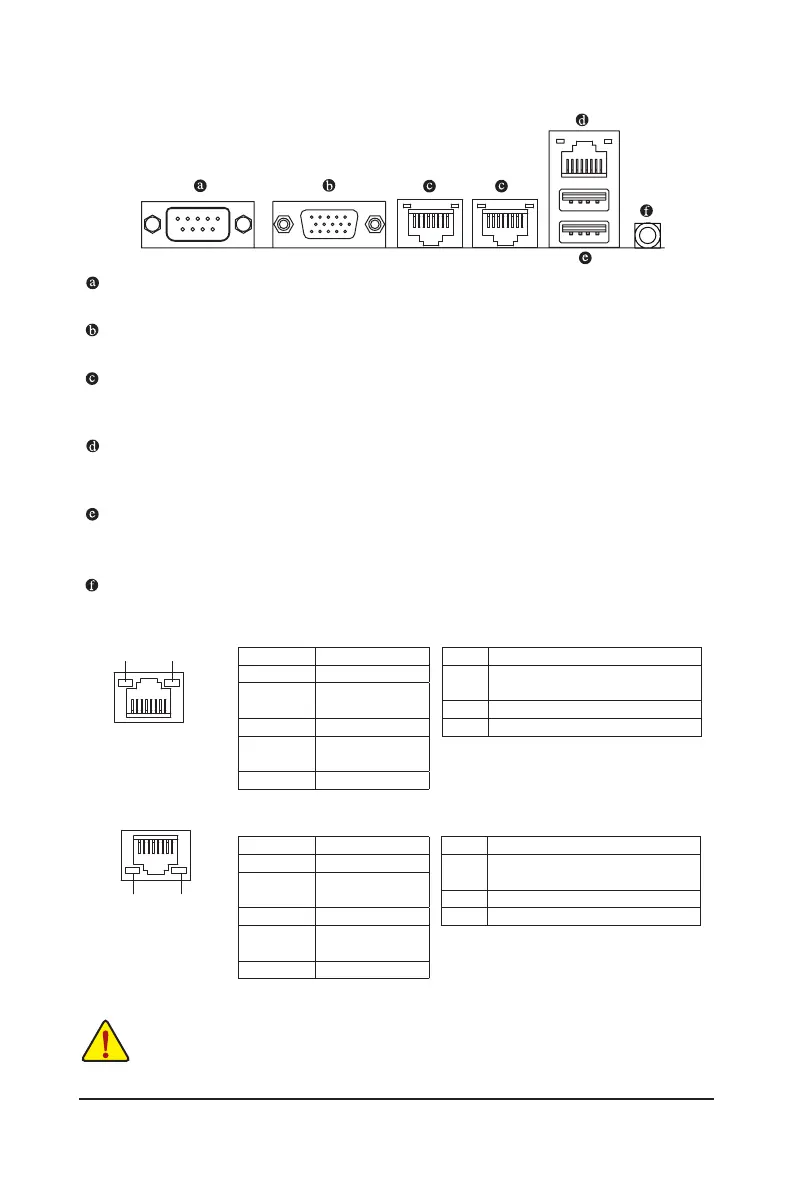

1-5 Back Panel Connectors
Serial Port
Connects to serial-based mouse or data processing devices.
Video Port
The video in port allows connect to video in, which can also apply to video loop thru function.
RJ-45 LAN Ports (10 Gigabit Ethernet LAN Ports)
The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. The following
describes the states of the LAN port LEDs.
KVM Server Management 10/100/1000 LAN Port (Dedicated LAN Port)
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the decated LAN port for server management.
USB 3.0 Port
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveandetc.
ID Switch Button
Thisbuttonprovidetheselectedunitidencationfunction.
• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
Link
Activity LED
Speed LED
10/100/1000 LAN Port
Link/Activity LED:Speed LED:
State Description
Yellow On 1 Gbps data rate
Yellow Blink Identify 1 Gbps data
rate
Green On 100 Mbps data rate
Green Blink Identify 100 Mbps data
rate
Off 10 Mbps data rate
State Description
On Link bet ween system and net work or no
access
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Link
Activity LED
Speed LED
1000/10G LAN Port
Link/Activity LED:Speed LED:
State Description
Green On 10 Gbps data rate
Green Blink Identify 10 Gbps data
rate
Yellow On 1 Gbps data rate
Yellow Blink Identify 1 Gbps data
rate
Off 100 Mbps data rate
State Description
On Link bet ween system and net work or no
access
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
