- 55 -
BIOS Setup
2-2-6
T
rusted Computing
Conguration

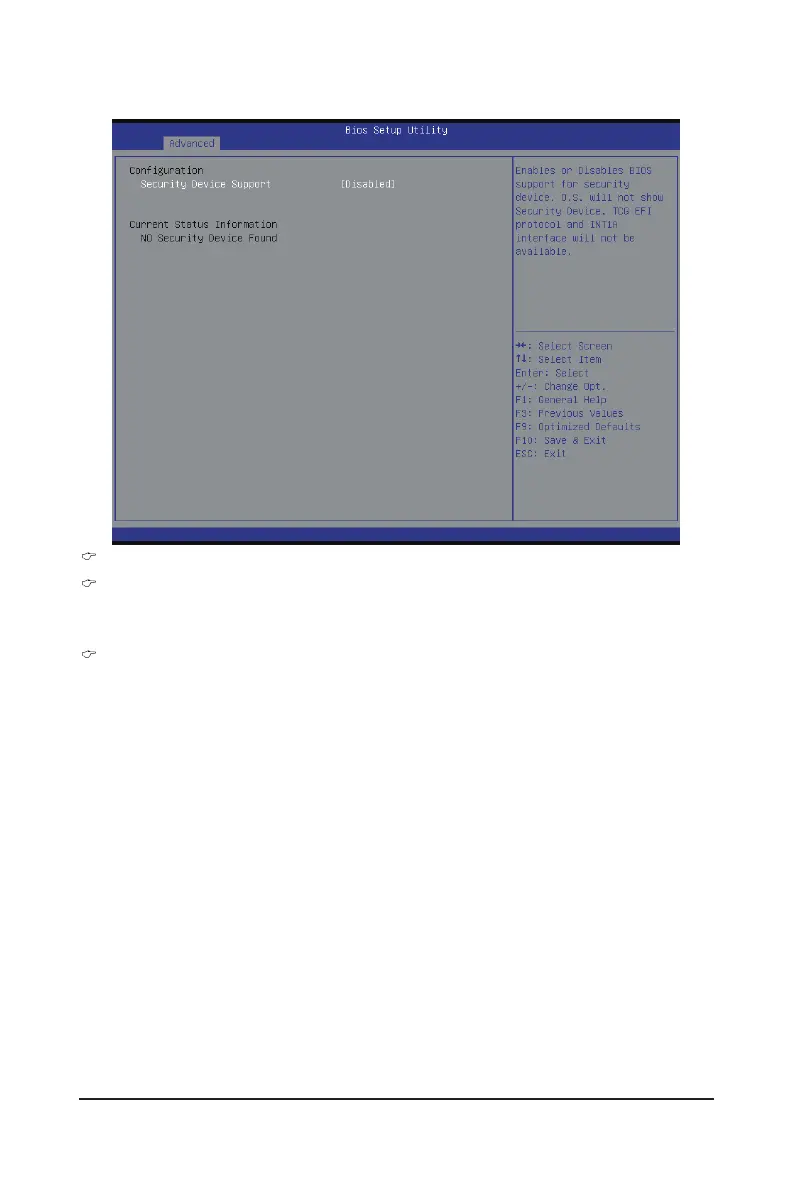

Security Device Support
Select Enabled to activate TPM support feature.
Options available: Enabled/Disabled. Default setting is
Disabled
.
Current Status Information
Display current TPM status information.
