GILBARCO VEEDER-ROOT Latitude LS-100 Installation Manual

Installing Units on Island Lifting Latitude Units
MDE-5427E Latitude
™
Installation Manual · July 2022 Page 5-1
5 – Installing Units on Island
Lifting Latitude Units
Lifting heavy equipment can be hazardous.
Equipment could fall and cause severe injury or death.
Use lifting equipment of proper capacity and factor of safety when moving or positioning
the unit. Stand clear from pump/dispenser when lifting and lowering.
WARNING
Before mounting the unit to the island, confirm that the pit box and unit base are compatible.
Some pit box plates have rain lips that require modifications before placing the Latitude unit
on the plate. If the Latitude unit does not fit properly onto the pit box plate, the unit will have
to be lifted according to the instructions in this section and moved to a safe work area. If this
modification is not required, do the following, and then proceed to “Verifying and
Determining Plumbing Requirements” on page 4-2.
To lift Latitude units, proceed as follows:
Notes: 1) In case of premium canopy, lift the dispenser unit at the CDM locat
ion instead of the
premium canopy location.
2) The LS-100 dispenser is also lifted
from the CDM location.

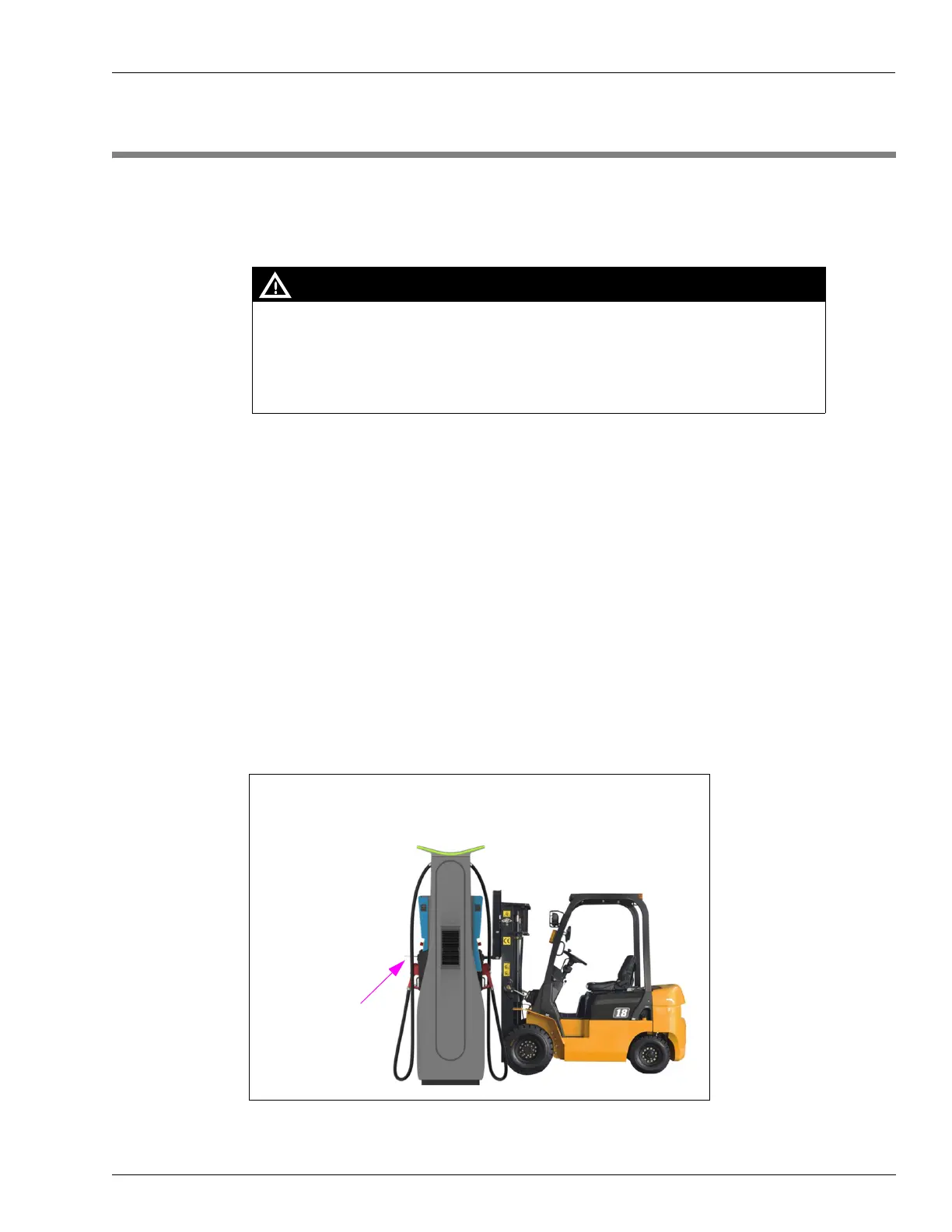

Figure 5-1: Lifting the Premium Canopy (LS-200 and LS-300) Dispensers and LS-300 
Base Dispenser
Lift at CDM location
