GILBARCO VEEDER-ROOT Latitude LS-100 Installation Manual

Mounting Unit to Island Installing Units on Island
Page 5-2 MDE-5427E Latitude
™
Installation Manual · July 2022
1 Place forks of the high-reach forklift below the Electronics Box (for premium canopy
dispensers and LS-300 base canopy dispenser) or Canopy (in case of base canopy).
Note: The fork of the high-reach forklift is placed below
the Electronics Box in case of LS-300
base canopy dispenser.

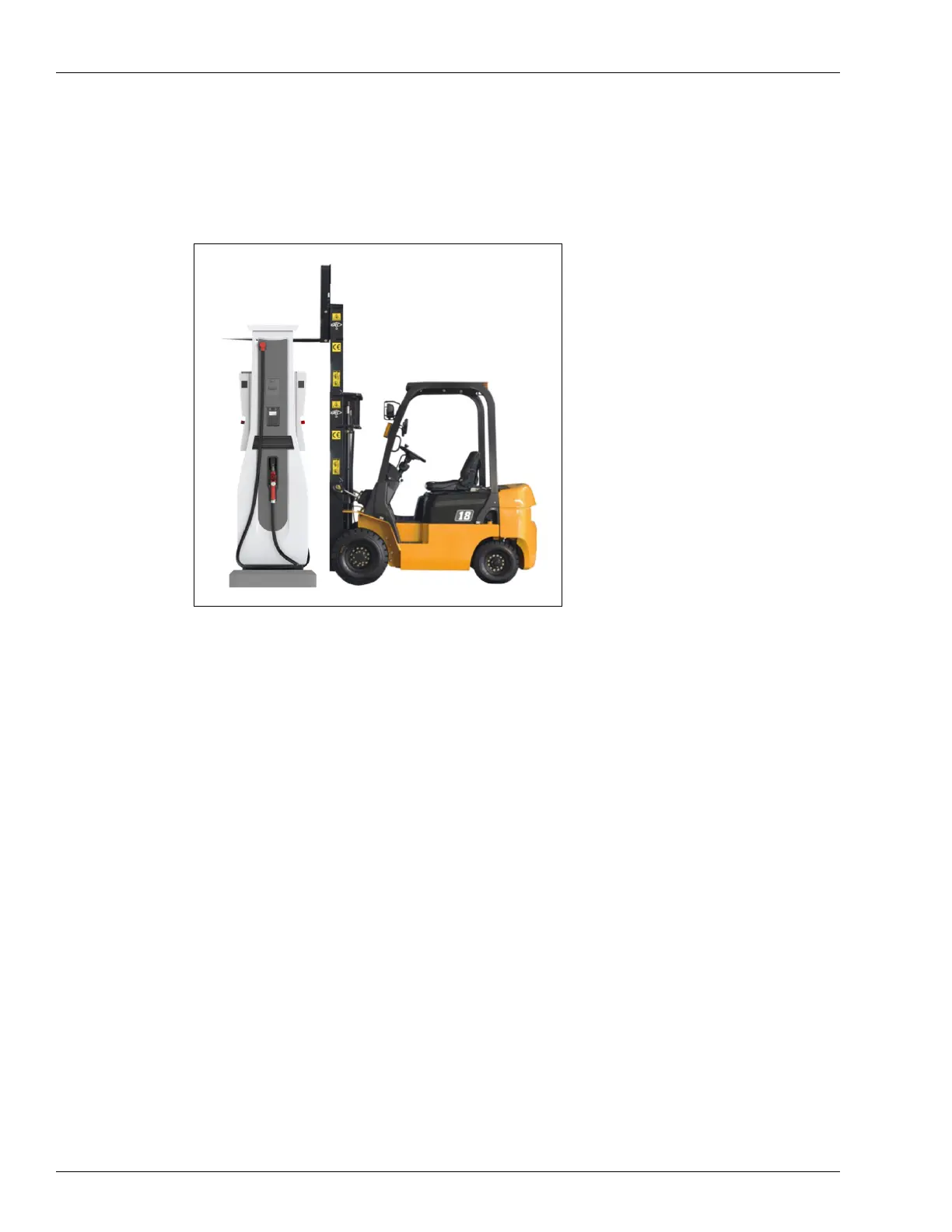

Figure 5-2: Lifting the LS-200 Base Canopy Dispenser
2 Lift and position the unit onto the island.
3 Remove the forks carefully.
Mounting Unit to Island
Before placing the unit on an island, determine the correct location of piping for the unit
involved and verify the proper orientation of the unit. A common installation error is to install
the unit backwards, resulting in required modifications or delay in installation.
Mount the unit using the mounting bolt l
ocations specified.
Fill in any openings from the smaller length Latitude cabinet to the potentially longer pit box
opening for other units. Seal as required.
The unit must be located in class 1. Where high ambient temperatures are common, consider
insulating the dispenser or placing it in a location where it is out of direct sun to maximize
shelf life.
Note: Ensure that you keep a distance of 2-feet be
tween the dispenser and column on each
side to access side panel and any internal parts of the dispenser.
