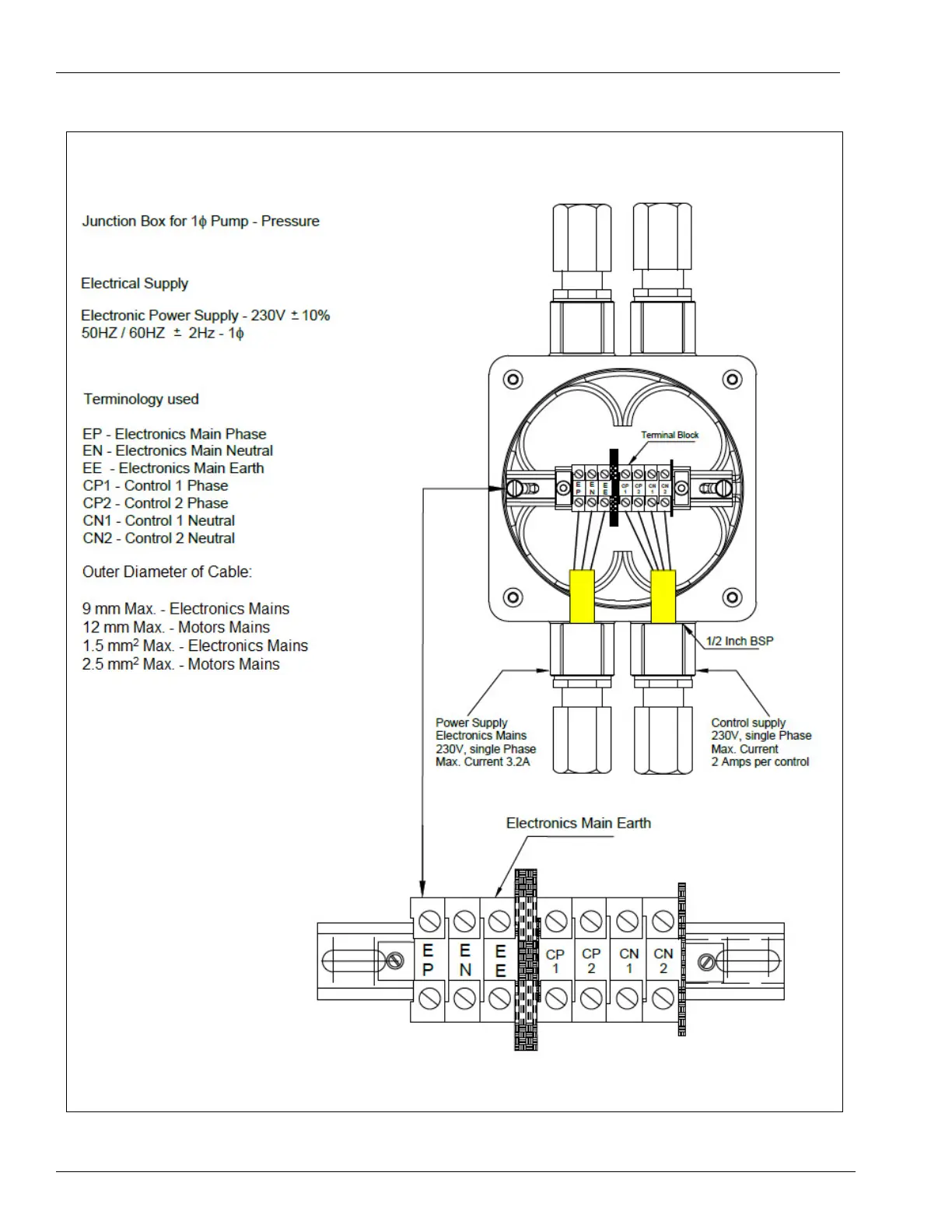

Wiring in Unit Supply Connections for Single-phase Dispenser
Page 6-8 MDE-5427E Latitude
™
Installation Manual · July 2022
Figure 6-6: Connections for 2P MPD, 2P Quad and Duo Dispenser
