The oil mix warning light performs a timed check
of 3" every time the key is turned to ON. The check
is managed by the turn indicator device which ap-
plies a voltage of 12 v to the oil warning light bulb.
If on turning the key to ON the control is not carried
out check:
- Bulb efficiency

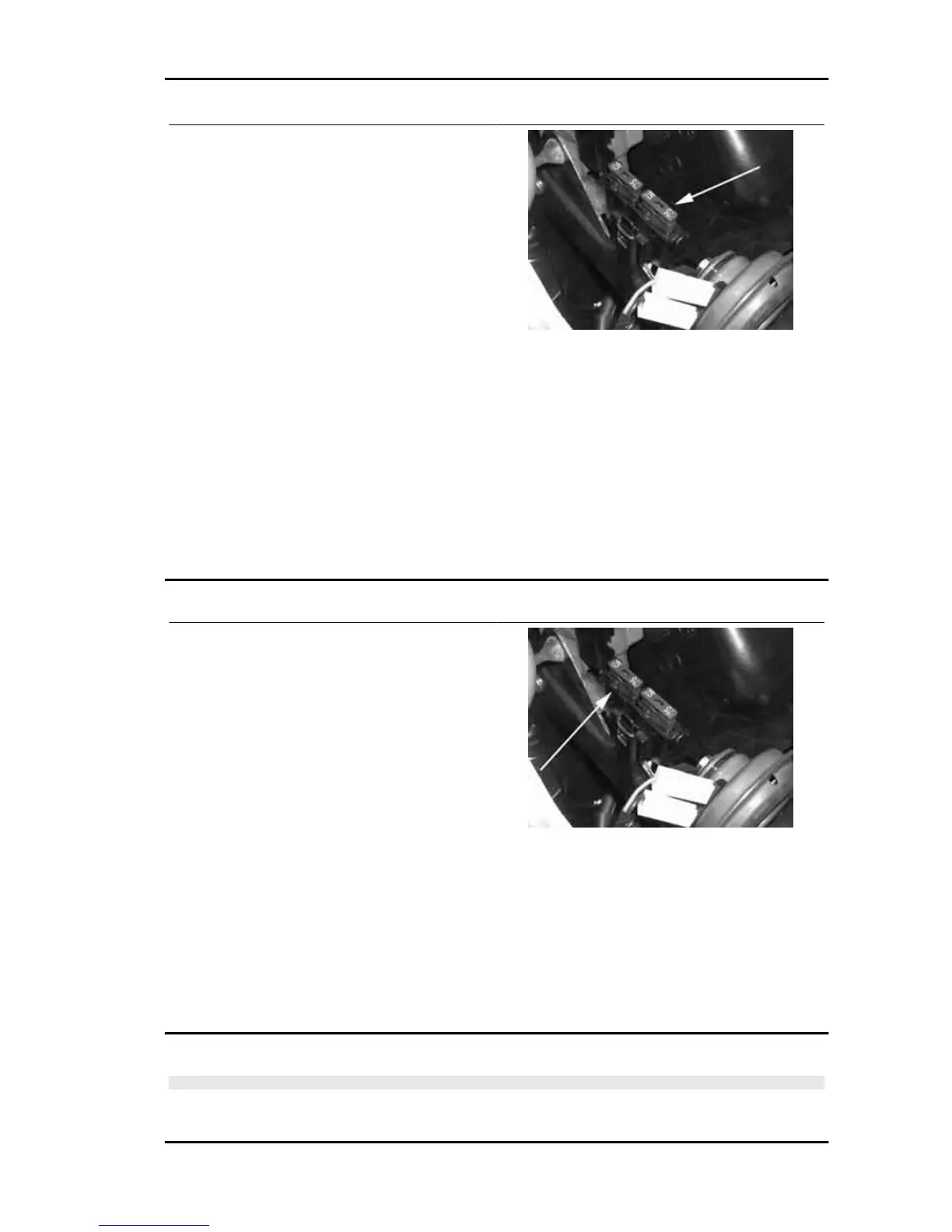

- The 7,5A fuse shown in the photograph after re-
moving the front casing.
- Using a multimeter and turning the key to ON that the 2 YELLOW cables of the oil mix command light
have a voltage of +12V
- The efficiency of the oil mix command light.
To access the oil mix command light remove the rear hold. Remember that the voltage of +12V to the
2 YELLOW cables of the oil mix command light lasts 3" from the moment the key is turned to ON.
See also
Legshield
Rear rack
Lights list
The lighting system turns on when the key is
turned to ON.
It is possible to select the high beams using the
light switch.
If there are problems with the lighting system c h
e c k :
- Bulb efficiency
- The 7,5A fuse shown in the picture removing the
front casing
- Check using a multimeter that the GREY-RED cable of the plug with contacts has a voltage of +12V
- Check the GREY-BLUE cable of the light switch has a voltage of +12V
- Check efficiency of light switch
- Ensure the presence of earth to the bulb carriers.
See also
Legshield
Dry-charge battery
WARNING
THE BATTERY ELECTROLYTE IS POISONOUS AS IT MAY CAUSE SERIOUS BURNS. IT CON-
TAINS SULPHURIC ACID. AVOID CONTACT WITH THE EYES, THE SKIN AND CLOTHING. IF
