33
Girard Systems © 2005

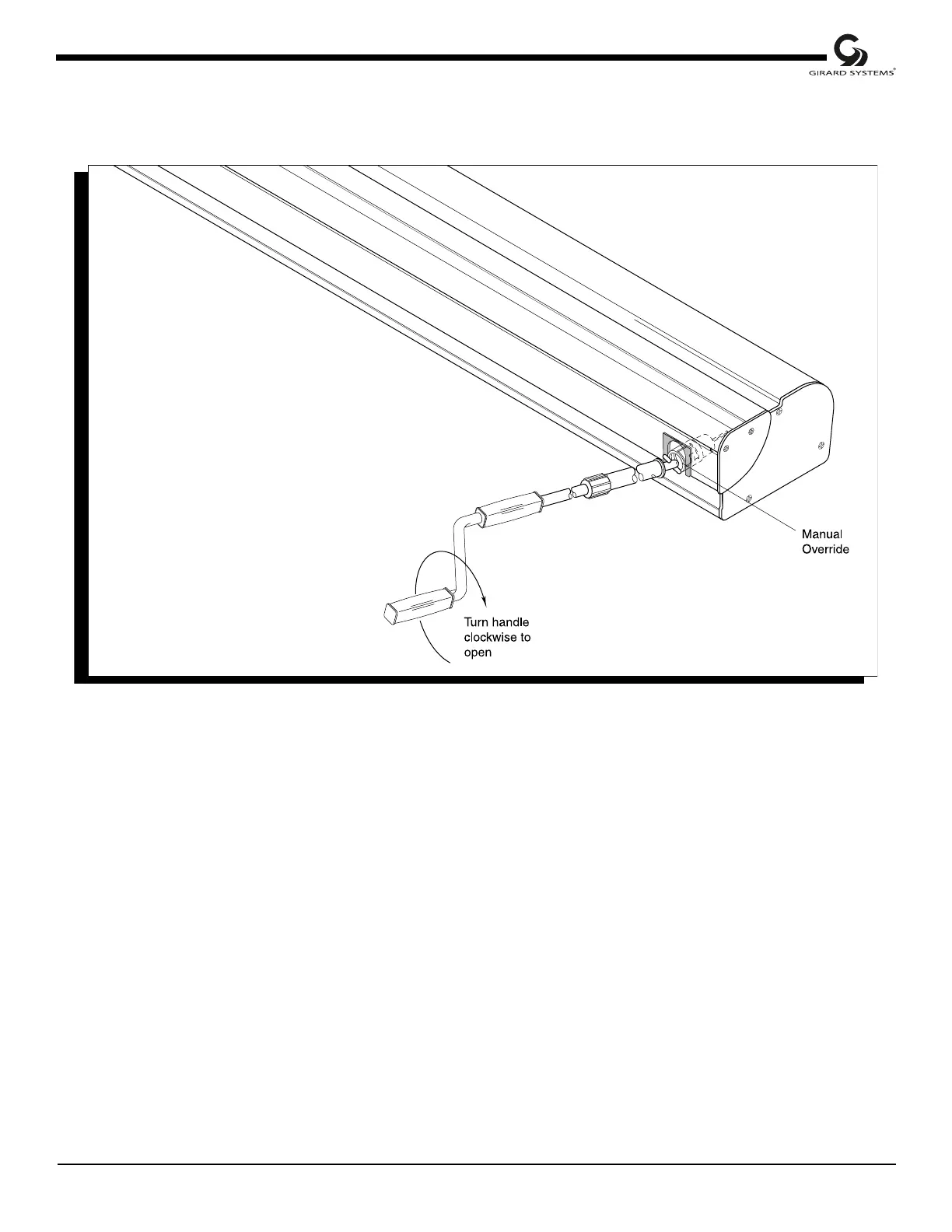

Figure 17
Manual Override
Awning Opening via Hand Crank
Insert end of crank into manual override receiver, located at right side of awning. Push in and rotate handle
one-quarter turn clockwise. Let handle drop approximately one-half inch (1/2"). (Handle should lodge in
receiver and awning may now be extended/opened.) Extend awning approximately twelve inches (12") by
turning handle clockwise; confirm that awning arm is in proper location; retract/close awning by turning
handle counterclockwise. (See Fig. 19 for locations specifications.)
