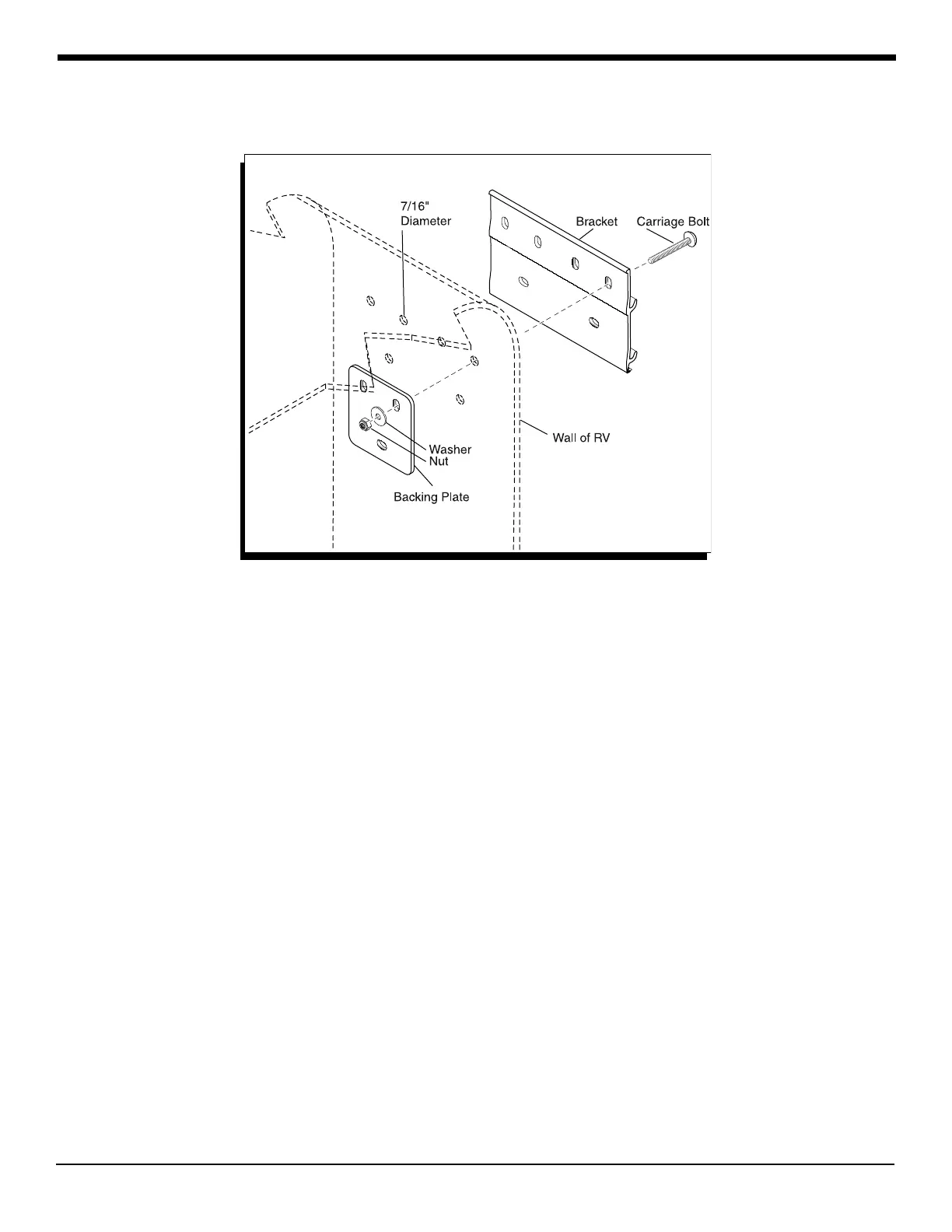

Figure 23
Mounting Bracket and Backing Plate
View from RV – Inside to Outside
L. MOUNTING AWNING TO WALL MOUNT BRACKETS
1. Lift awning into position for placement onto brackets.
a. While ladders are generally sufficient, you may use a scaffold or a forklift to raise
awning into position (Fig. 24).
b. If using forklift, lift from center line of awning (“CL” on Fig. 24) to maintain product
balance while elevating.
