2. While cover is off control box, take specific note of wind speed setting (Fig. 33 callout,
“Wind Adjustment”). The arrow should be pointing at the 3:00 position (factory pre-set at
22 mph). To adjust the pre-set wind speed, rotate the dial to the preferred setting. The
minimum setting is 12 mph; maximum setting is 31 mph.
GIRARD SYSTEMS STRONGLY RECOMMENDS NOT SETTING THE DIAL
OVER 26 MPH. DISREGARDING THIS WARNING MAY VOID WARRANTY.

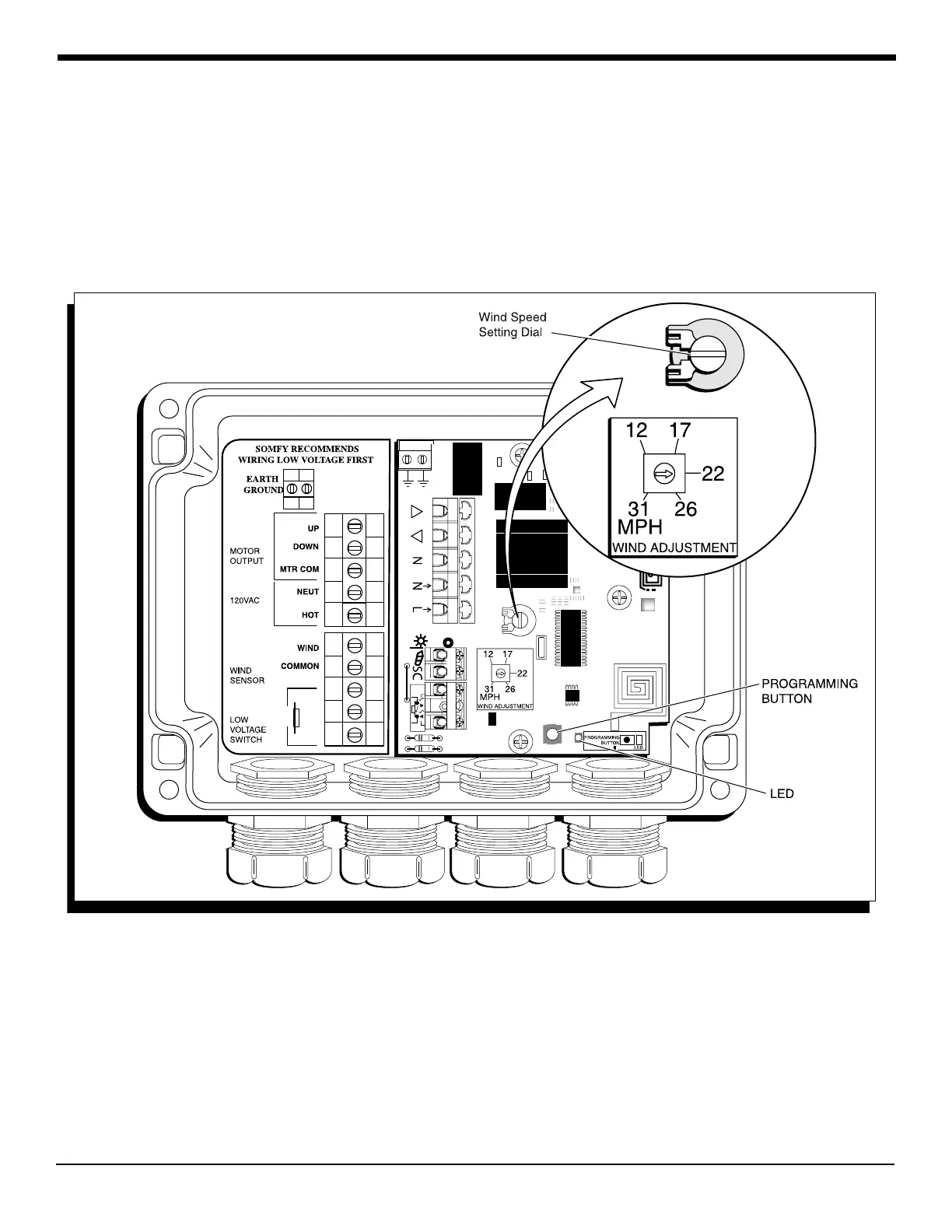

Figure 33
Control Box (Internal) with Wind Speed Setting Dial
Q. AWNING MOTOR CORD and ACL-6 CURRENT-LIMITING DEVICE
(Electrical Installation)
1. Take end of awning motor cord wire(s) and cut off a portion long enough to connect the
