INSTALLATION SEQUENCE
4.5 hours (based on two installers)
K. RV WALL MOUNT BRACKETS
1. Wall mount brackets have been assembled to awning for shipping purposes. (See Fig. 19 for
quantities.)
2. Remove the three (3) brackets from back of awning using a 5mm Allen wrench to loosen the
set screws (one on the bottom of each bracket). (See Fig. 18).

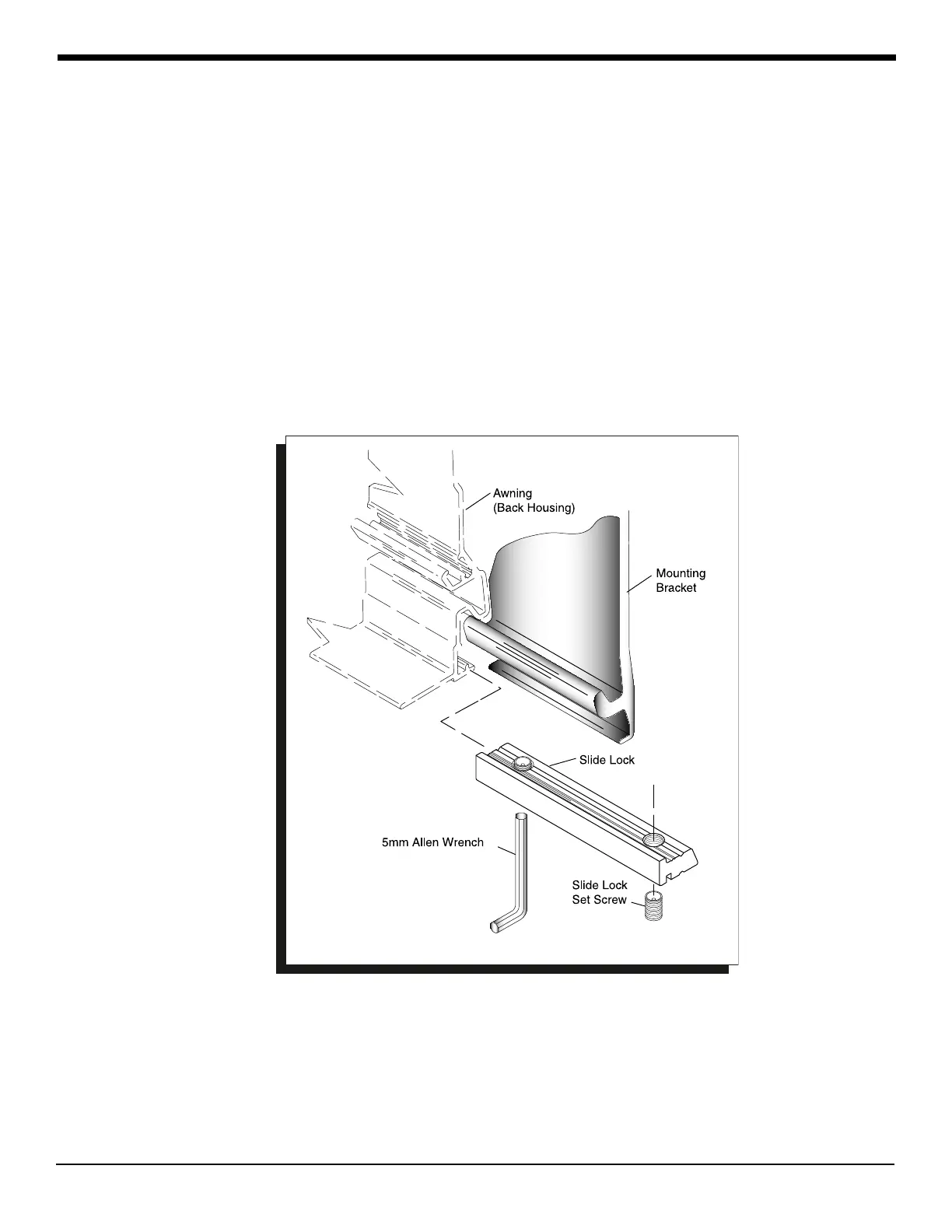

Figure 18
Slide Lock Removal from Bracket
